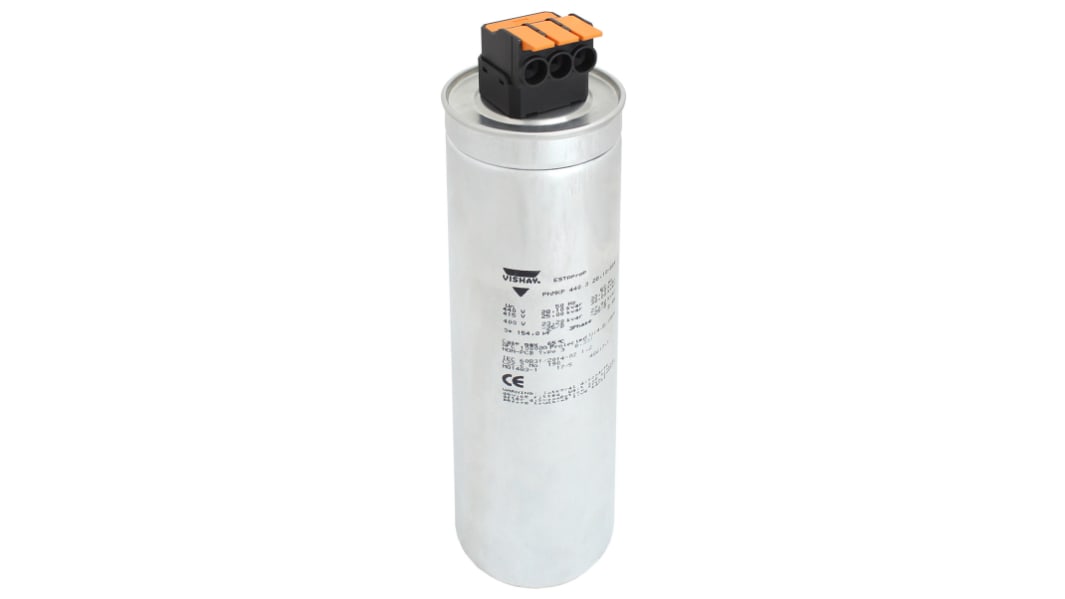

Vishay Power Factor Correction Capacitor (PFC) 3 x 165.8μF 25kvar 26.9kvar 3
- RS Stock No.:
- 187-5369
- Mfr. Part No.:
- PhMKP400.3.25,00-S84
- Manufacturer:
- Vishay
Subtotal (1 box of 4 units)*
MYR4,896.192
FREE delivery for orders over RM 500.00
Temporarily out of stock
- 8 unit(s) shipping from 23 January 2026
- Plus 4 unit(s) shipping from 03 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Box* |
|---|---|---|
| 4 + | MYR1,224.048 | MYR4,896.19 |
*price indicative
- RS Stock No.:
- 187-5369
- Mfr. Part No.:
- PhMKP400.3.25,00-S84
- Manufacturer:
- Vishay
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Dielectric Material | Polypropylene | |
| Capacitance | 3 x 165.8µF | |
| kvar 60Hz | 26.9kvar | |
| Number of Phases | 3 | |
| Height | 265mm | |
| Mounting Type | Stud Mount | |
| Width | 88.2mm | |
| Tolerance Minus | -5% | |
| kvar 50Hz | 25kvar | |
| Series | PhMKP | |
| Maximum Operating Temperature | +65°C | |
| Voltage | 400V ac | |
| Tolerance Plus | +5% | |
| Weight | 1.7kg | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Dielectric Material Polypropylene | ||
Capacitance 3 x 165.8µF | ||
kvar 60Hz 26.9kvar | ||
Number of Phases 3 | ||
Height 265mm | ||
Mounting Type Stud Mount | ||
Width 88.2mm | ||
Tolerance Minus -5% | ||
kvar 50Hz 25kvar | ||
Series PhMKP | ||
Maximum Operating Temperature +65°C | ||
Voltage 400V ac | ||
Tolerance Plus +5% | ||
Weight 1.7kg | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CZ
LVAC Power Capacitors Terminal Block With Spring Connection
Maintenance free
Reduced assembly times up to 60 %
Vibration proof in wind power plants and during transport
APPLICATIONS
Wind power plants
Solar panels and inverters
Thermal power station
Reduced assembly times up to 60 %
Vibration proof in wind power plants and during transport
APPLICATIONS
Wind power plants
Solar panels and inverters
Thermal power station
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
