Prysmian 6242Y, 10 m 2 Core Power Cable, Grey Polyvinyl Chloride 70 °C

RS Stock No.:: 528-8744
Mfr. Part No.:: 20197117
Manufacturer:: Prysmian

Prysmian 6242Y, 10 m 2 Core Power Cable, Grey Polyvinyl Chloride 70 °C

Bulk discount available

Subtotal (1 reel of 10 metres)*

MYR87.65

FREE delivery for orders over RM 500.00

In Stock

Plus 34 unit(s) shipping from 02 February 2026
Plus 24 unit(s) shipping from 06 March 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 - 4	MYR87.65	MYR8.765
5 +	MYR72.14	MYR7.214

*price indicative

RS Stock No.:: 528-8744
Mfr. Part No.:: 20197117
Manufacturer:: Prysmian

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Prysmian
	Product Type	Power Cable
	Number of Cores	2
	Jacket Colour	Grey
	Cable Length	10m
	Jacket Material	Polyvinyl Chloride
	Outside Diameter	5.3 x 12.8 mm
	Voltage	500 V
	Conductor Type	Solid
	Minimum Operating Temperature	-15°C
	Standards/Approvals	BASEC
	Cable CSA	2.5 mm²
	Series	6242Y
	Conductor Material	Annealed Copper
	Fire Behaviour	Flame Retardant
	Maximum Operating Temperature	70°C

	Select all
	Brand Prysmian
	Product Type Power Cable
	Number of Cores 2
	Jacket Colour Grey
	Cable Length 10m
	Jacket Material Polyvinyl Chloride
	Outside Diameter 5.3 x 12.8 mm
	Voltage 500 V
	Conductor Type Solid
	Minimum Operating Temperature -15°C
	Standards/Approvals BASEC
	Cable CSA 2.5 mm²
	Series 6242Y
	Conductor Material Annealed Copper
	Fire Behaviour Flame Retardant
	Maximum Operating Temperature 70°C

RoHS Status: Exempt

COO (Country of Origin):: GB

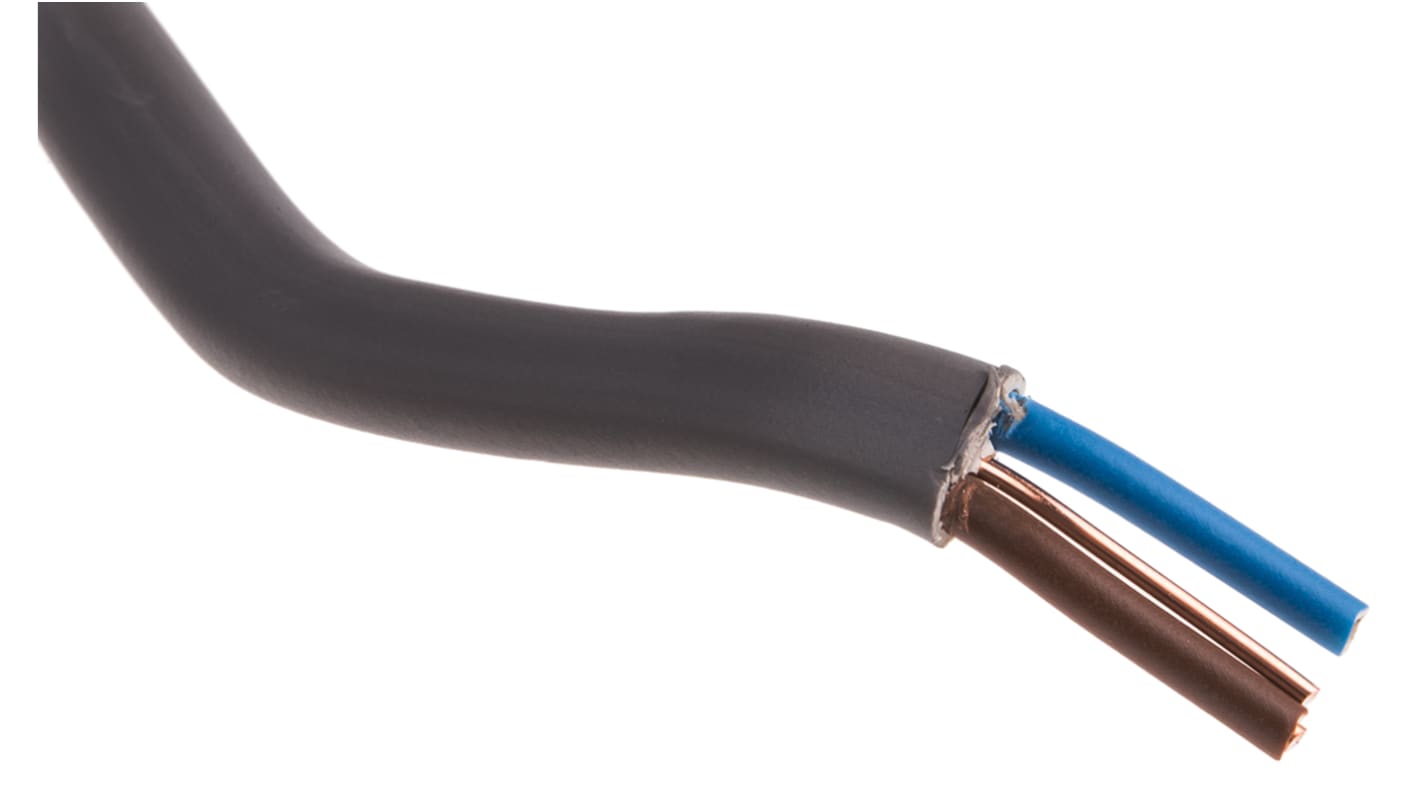

Twin and Earth Cable

A rigid twin and earth cable with excellent fire resistance designed for use in fixed installations. The cables have BASEC approval which is the main standard for PVC cable used in UK buildings. They can be used internally in dry or damp areas, in channels, embedded in plaster or on boards or trays. The PVC sheath allows for quick and easy installation and allows for the cable to withstand mechanical stresses.

Features and Benefits

• Temperature range: -15 °C to +70 °C;• Bending radius r-4D;• Medium mechanical impact;• Fire performance BSEN50265-2-1;• Rigid;• Low voltage 300/500 V

Product Application Information

Ideal for use in domestic and commercial premises for circuit wiring. Fixed installation in dry or damp premises on walls, boards or trays, in channels or embedded in plaster.

Approvals

BS6004

Standards

BSEN50265-2-1
