Prysmian FP200 Fire Performance 1.5 mm² 2 Core Power Cable, Red, 100m
- RS Stock No.:
- 494-2611
- Mfr. Part No.:
- 20108629
- Manufacturer:
- Prysmian

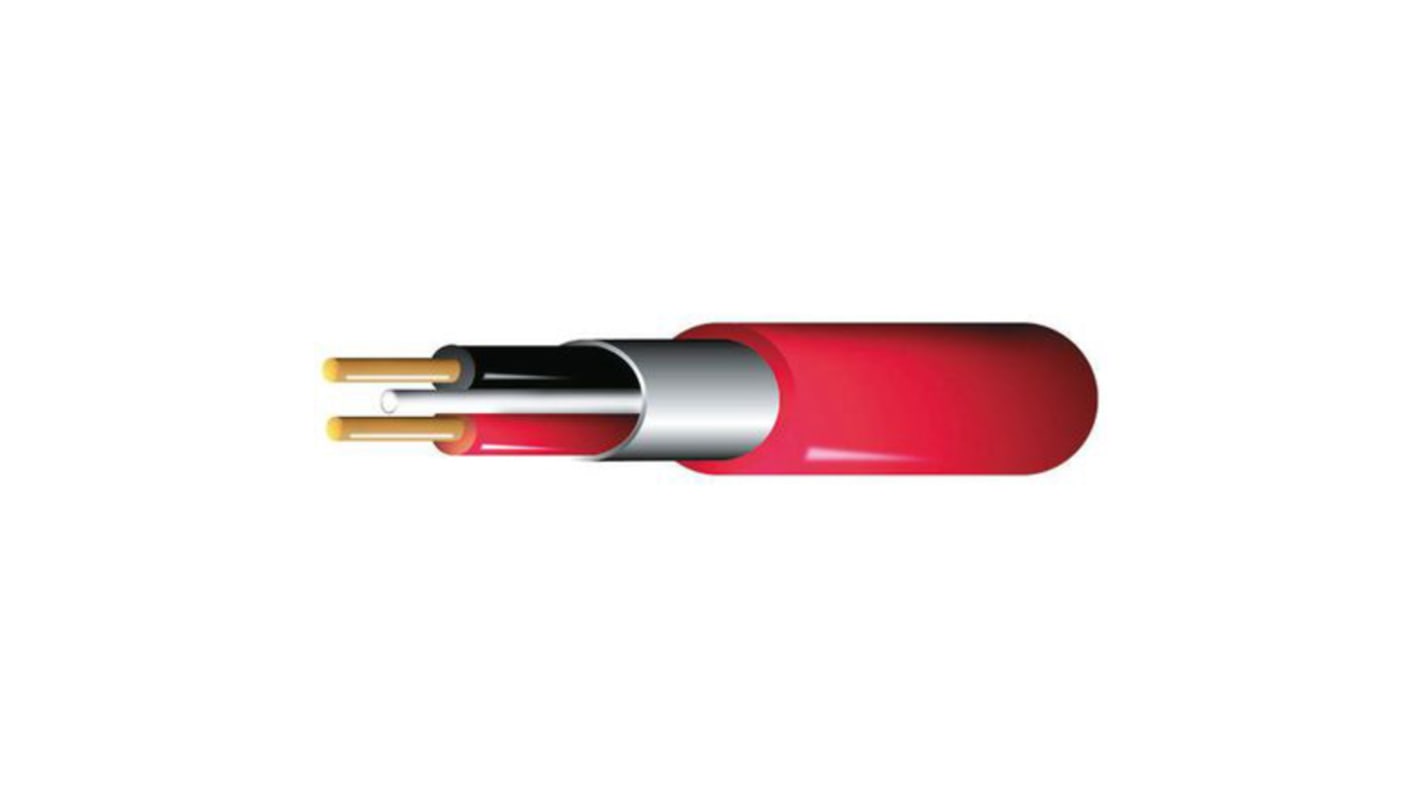

This image is representative of the product range
Subtotal (1 reel of 100 metres)*
MYR2,040.80
FREE delivery for orders over RM 500.00
In Stock
- 4 unit(s) ready to ship from another location
- Plus 14 unit(s) shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | MYR2,040.80 | MYR20.408 |
*price indicative
- RS Stock No.:
- 494-2611
- Mfr. Part No.:
- 20108629
- Manufacturer:
- Prysmian
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Prysmian | |
| Cross Sectional Area | 1.5 mm² | |
| Number of Cores | 2 | |
| Sheath Colour | Red | |
| Length | 100m | |
| Cable Type | Fire Performance | |
| Current Rating | 19.5 A | |
| Outer Diameter | 8.1mm | |
| Voltage Rating | 500 V | |
| Conductor Strand Type | Solid | |
| Minimum Operating Temperature | -20°C | |
| American Wire Gauge | 15 AWG | |
| Conductor Resistance | 12.1 Ω/km | |
| Series | FP200 | |
| Maximum Operating Temperature | +70°C | |
| Conductor Material | Annealed Copper | |
| Insulation Material | Insudite | |
| Standards Met | BASEC | |
| Select all | ||
|---|---|---|
Brand Prysmian | ||
Cross Sectional Area 1.5 mm² | ||
Number of Cores 2 | ||
Sheath Colour Red | ||
Length 100m | ||
Cable Type Fire Performance | ||
Current Rating 19.5 A | ||
Outer Diameter 8.1mm | ||
Voltage Rating 500 V | ||
Conductor Strand Type Solid | ||
Minimum Operating Temperature -20°C | ||
American Wire Gauge 15 AWG | ||
Conductor Resistance 12.1 Ω/km | ||
Series FP200 | ||
Maximum Operating Temperature +70°C | ||
Conductor Material Annealed Copper | ||
Insulation Material Insudite | ||
Standards Met BASEC | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GB
FP 200 Gold Fire Performance Cable
The FP 200 Gold is a hard skin standard fire resistant cable incorporating Prysmian's unique and hard wearing Insudite™ insulation. An excellent, high performance cable for use in fire detection and fire alarm systems, emergency systems and voice alarm systems.
Features and Benefits
LSZH Sheath with Reduced Flame Propagation
Voltage rating 300V/500V
Operating temperature range: -20 to +70°C
Easy to install, requires no bending tools
The red cable is used for fire alarms and the white cable is used for emergency lighting
Laminated aluminium tape screen bonded to sheath and in contact with full size tinned anealed copper circuit protective conductor which provides automatic screen earthing
Product Application Information
Suitable for use in fire alarm wiring, emergency lighting or where mains cable is required to be screened.
Standards
· BS7629-1 Construction of screened fire resistant cables
· BS EN 50200 PH30, PH60, PH120 and ANNEX E
· BS5839-1, 6, 8 & 9 ’standard’ fire resisting cable
· BS5266-1 ’standard’ fire resisting cable
· BS8519 Category 1 control cable
· London Underground 1.085 Approved Product Register (Section 12)
· BS EN 50200 PH30, PH60, PH120 and ANNEX E
· BS5839-1, 6, 8 & 9 ’standard’ fire resisting cable
· BS5266-1 ’standard’ fire resisting cable
· BS8519 Category 1 control cable
· London Underground 1.085 Approved Product Register (Section 12)
