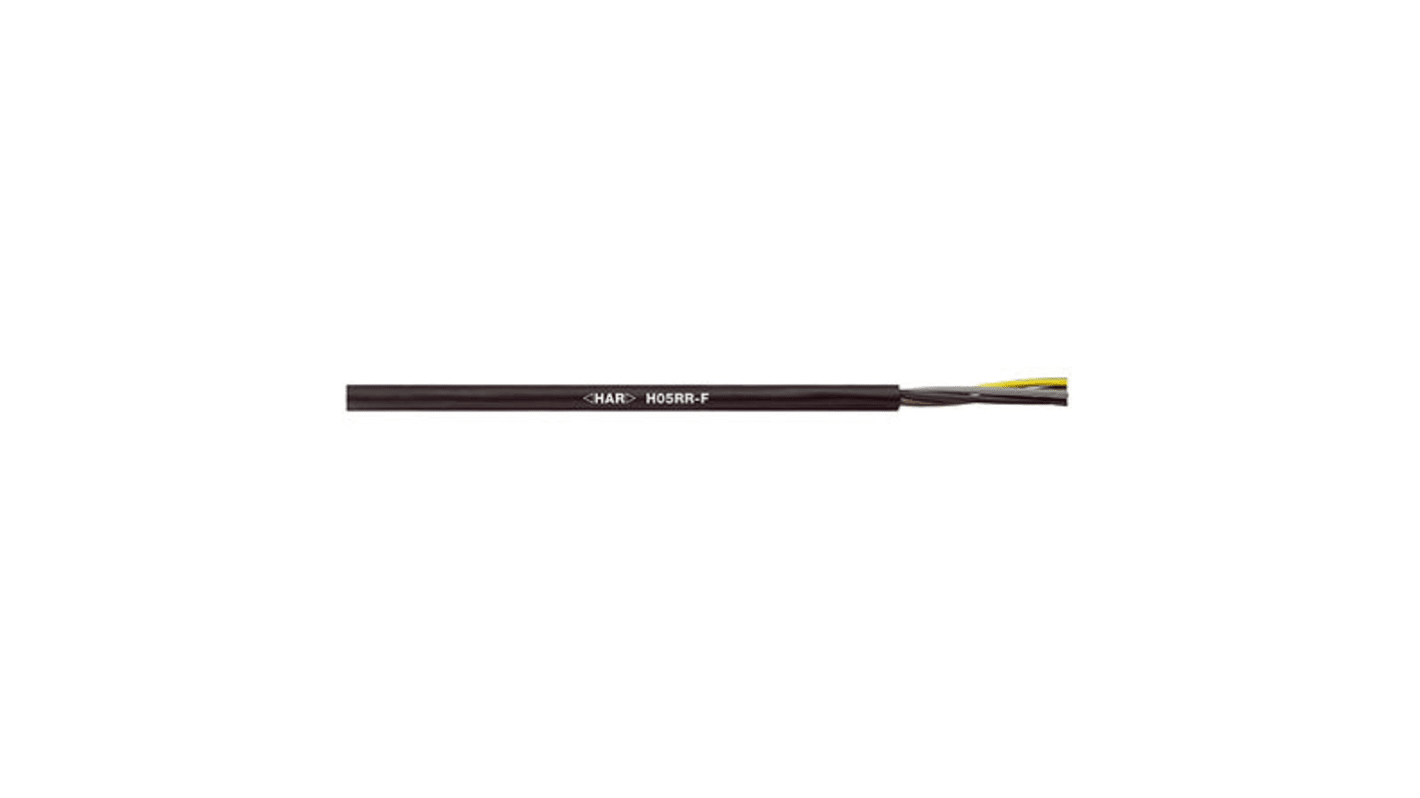

Lapp Power 1 mm² 4 Core Power Cable, H05RR-F, Black Rubber, 100m

RS Stock No.:: 406-962
Mfr. Part No.:: 16002113
Manufacturer:: Lapp

Lapp Power 1 mm² 4 Core Power Cable, H05RR-F, Black Rubber, 100m

Subtotal (1 reel of 100 metres)*

MYR1,740.12

FREE delivery for orders over RM 500.00

In Stock

2 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	MYR1,740.12	MYR17.401

*price indicative

RS Stock No.:: 406-962
Mfr. Part No.:: 16002113
Manufacturer:: Lapp

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lapp
	Cross Sectional Area	1 mm²
	Number of Cores	4
	Sheath Colour	Black
	Length	100m
	Cable Type	Power
	Current Rating	15 A
	Sheath Material	Rubber
	CPR Certification	Eca
	Outer Diameter	7.1 → 8.5mm
	Voltage Rating	500 V
	European Harmonised Code	H05RR-F
	Conductor Strand Type	Stranded
	Conductor Material	Copper
	Maximum Operating Temperature	+60°C
	American Wire Gauge	17 AWG
	Core Strands	32/0.2 mm
	Number of Strands	32
	Size of Strands	0.2 mm
	Conductor Resistance	19.5 Ω/km
	Insulation Material	Rubber
	Minimum Operating Temperature	-25°C
	Standards Met	CE
	Fire Behaviour	Flame Retardant

	Select all
	Brand Lapp
	Cross Sectional Area 1 mm²
	Number of Cores 4
	Sheath Colour Black
	Length 100m
	Cable Type Power
	Current Rating 15 A
	Sheath Material Rubber
	CPR Certification Eca
	Outer Diameter 7.1 → 8.5mm
	Voltage Rating 500 V
	European Harmonised Code H05RR-F
	Conductor Strand Type Stranded
	Conductor Material Copper
	Maximum Operating Temperature +60°C
	American Wire Gauge 17 AWG
	Core Strands 32/0.2 mm
	Number of Strands 32
	Size of Strands 0.2 mm
	Conductor Resistance 19.5 Ω/km
	Insulation Material Rubber
	Minimum Operating Temperature -25°C
	Standards Met CE
	Fire Behaviour Flame Retardant

COO (Country of Origin):: DE

Lapp Power Cable, 100m Length, 500V Voltage Rating - 16002113

This Lapp power cable is designed with a copper conductor and rubber insulation, providing a voltage rating of 500V. It is ideal for various applications in dry and damp conditions, making it suitable for use on hand tools and light workshop tools. The cable meets CE standards and is designed to withstand light to medium stress, ensuring durability and reliability in different environments.

Features & Benefits

• Copper conductor for efficient power transmission

• Rubber insulation for protection against external elements

• 500V voltage rating for versatility

• CE standards compliant for quality assurance

• Suitable for use in dry and damp conditions

• Designed to withstand light to medium stress levels

Applications

• Ideal for use on hand tools and light workshop tools

• Suitable for moving cable carriers and motor drum guidance

• Can be used for applications that require a reliable power source in various environments

Can it be used in damp conditions?

Yes, the Lapp power cable is designed to be used in both dry and damp conditions.

Will it work with light workshop tools?

Yes, this power cable is reliable for use with light workshop tools and hand tools.

Is it compliant with CE standards?

Yes, this cable meets CE standards, ensuring quality and safety in its operation.
