Wurth Elektronik 3041 Series Pluggable Terminal Block, 8-Contact, 3.5 mm Pitch, 1-Row
- RS Stock No.:
- 191-2713
- Mfr. Part No.:
- 691304130008
- Brand:
- Wurth Elektronik

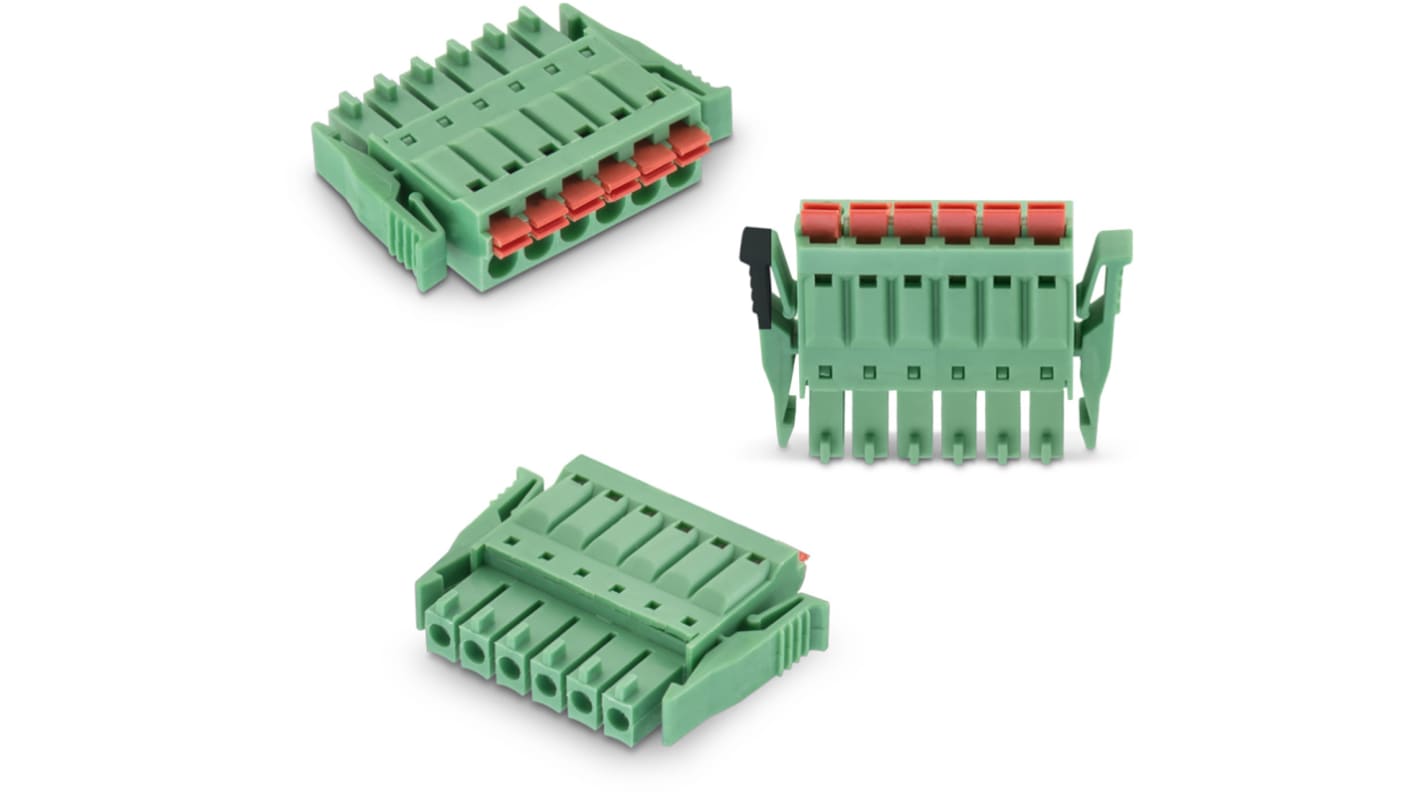

Image representative of range
Bulk discount available
Subtotal (1 unit)*
MYR47.16
FREE delivery for orders over RM 500.00
In Stock
- Plus 3 unit(s) shipping from 15 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | MYR47.16 |
| 25 - 49 | MYR44.80 |
| 50 + | MYR42.56 |
*price indicative
- RS Stock No.:
- 191-2713
- Mfr. Part No.:
- 691304130008
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | Pluggable Terminal Block | |
| Number of Contacts | 8 | |
| Pitch | 3.5mm | |
| Current | 12A | |
| Number of Rows | 1 | |
| Housing Material | Polyamide | |
| Connector Gender | Male | |
| Orientation | Vertical | |
| Colour | Green | |
| Wire Connection Method | Solder | |
| Voltage | 2.5 kV | |
| Series | 3041 | |
| Depth | 21.1mm | |
| Length | 28.7mm | |
| Width | 7.8 mm | |
| Standards/Approvals | cULus, REACH, RoHS | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type Pluggable Terminal Block | ||
Number of Contacts 8 | ||
Pitch 3.5mm | ||
Current 12A | ||
Number of Rows 1 | ||
Housing Material Polyamide | ||
Connector Gender Male | ||
Orientation Vertical | ||
Colour Green | ||
Wire Connection Method Solder | ||
Voltage 2.5 kV | ||
Series 3041 | ||
Depth 21.1mm | ||
Length 28.7mm | ||
Width 7.8 mm | ||
Standards/Approvals cULus, REACH, RoHS | ||
- COO (Country of Origin):
- CN
Wurth Elektronik WR-TBL are available in different connection types and offer large and modular Terminal Block possibilities in order to fulfil most of the requirements which can be found in the industrial marketplace.
