EMCT 90 dB Through Hole Continuous Internal 11.2 mm Piezo Buzzer Component 12 V ac/dc Min 36 V ac/dc Max
- RS Stock No.:
- 286-0163
- Mfr. Part No.:
- UEB 025/12-36V AC/DC
- Manufacturer:
- EMCT

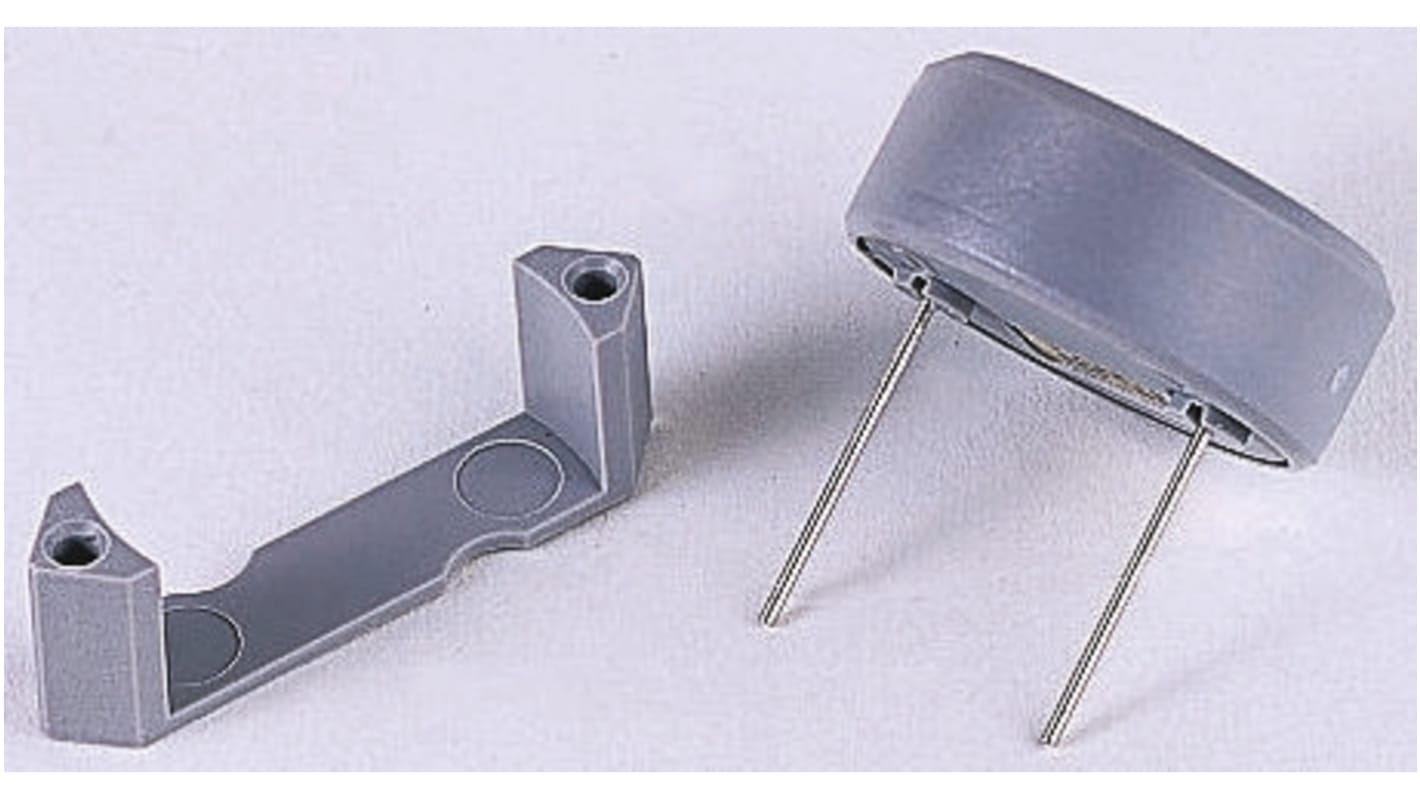

This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
MYR151.88
FREE delivery for orders over RM 500.00
Last RS stock
- Final 4 unit(s), ready to ship from another location
Units | Per Unit |
|---|---|
| 1 - 14 | MYR151.88 |
| 15 - 49 | MYR148.70 |
| 50 - 99 | MYR144.15 |
| 100 - 249 | MYR140.67 |
| 250 + | MYR137.62 |
*price indicative
- RS Stock No.:
- 286-0163
- Mfr. Part No.:
- UEB 025/12-36V AC/DC
- Manufacturer:
- EMCT
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EMCT | |
| Product Type | Piezo Buzzer Component | |
| Mount Type | Through Hole | |
| Minimum Supply Voltage | 12V ac/dc | |
| Maximum Supply Voltage | 36V ac/dc | |
| Sound Level | 90dB | |
| Drive Type | Internal | |
| Tone Type | Continuous | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 65°C | |
| Standards/Approvals | No | |
| Height | 11.2mm | |
| Maximum Frequency | 3.74kHz | |
| Supply Current | 10mA | |
| Minimum Frequency | 2.76kHz | |
| Select all | ||
|---|---|---|
Brand EMCT | ||
Product Type Piezo Buzzer Component | ||
Mount Type Through Hole | ||
Minimum Supply Voltage 12V ac/dc | ||
Maximum Supply Voltage 36V ac/dc | ||
Sound Level 90dB | ||
Drive Type Internal | ||
Tone Type Continuous | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 65°C | ||
Standards/Approvals No | ||
Height 11.2mm | ||
Maximum Frequency 3.74kHz | ||
Supply Current 10mA | ||
Minimum Frequency 2.76kHz | ||
- COO (Country of Origin):
- CN
Round PCB mount continuous tone buzzers
This is a range of high sound output piezo buzzers. They are suitable for PCB mounting and are housed in a circular case.
