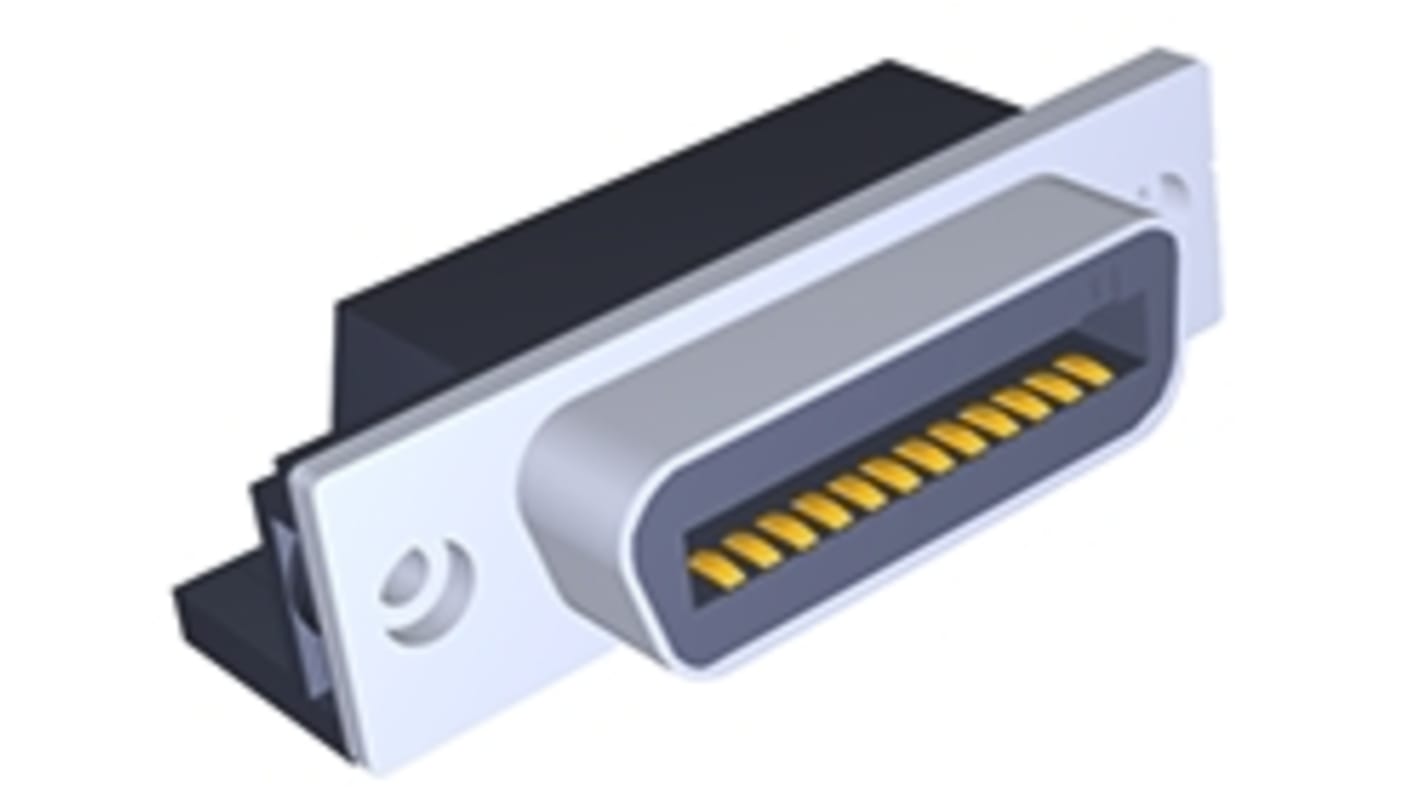

TE Connectivity Champ Series Right Angle PCB PCB Socket, 24-Contact, 2 Row, 2.16 mm Pitch Solder
- RS Stock No.:
- 823-6926
- Distrelec Article No.:
- 302-71-527
- Mfr. Part No.:
- 5554923-2
- Manufacturer:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
MYR76.22
FREE delivery for orders over RM 500.00
In Stock
- 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 9 | MYR76.22 |
| 10 - 99 | MYR74.62 |
| 100 - 249 | MYR72.38 |
| 250 - 499 | MYR70.60 |
| 500 + | MYR69.06 |
*price indicative
- RS Stock No.:
- 823-6926
- Distrelec Article No.:
- 302-71-527
- Mfr. Part No.:
- 5554923-2
- Manufacturer:
- TE Connectivity
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 24 | |
| Product Type | PCB Socket | |
| Sub Type | Connector | |
| Number of Rows | 2 | |
| Pitch | 2.16mm | |
| Housing Material | Liquid Crystal Polymer | |
| Termination Type | Solder | |
| Mount Type | PCB | |
| Orientation | Right Angle | |
| Connector System | Cable-to-Board | |
| Series | Champ | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 2.54mm | |
| Maximum Operating Temperature | 105°C | |
| Contact Gender | Female | |
| Contact Material | Copper | |
| Contact Plating | Gold | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 24 | ||
Product Type PCB Socket | ||
Sub Type Connector | ||
Number of Rows 2 | ||
Pitch 2.16mm | ||
Housing Material Liquid Crystal Polymer | ||
Termination Type Solder | ||
Mount Type PCB | ||
Orientation Right Angle | ||
Connector System Cable-to-Board | ||
Series Champ | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 2.54mm | ||
Maximum Operating Temperature 105°C | ||
Contact Gender Female | ||
Contact Material Copper | ||
Contact Plating Gold | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- US
2.16mm Centerline CHAMP Connectors
A range of TE Connectivity 2.16mm Centerline CHAMP PCB and Cable Mount Connectors.
