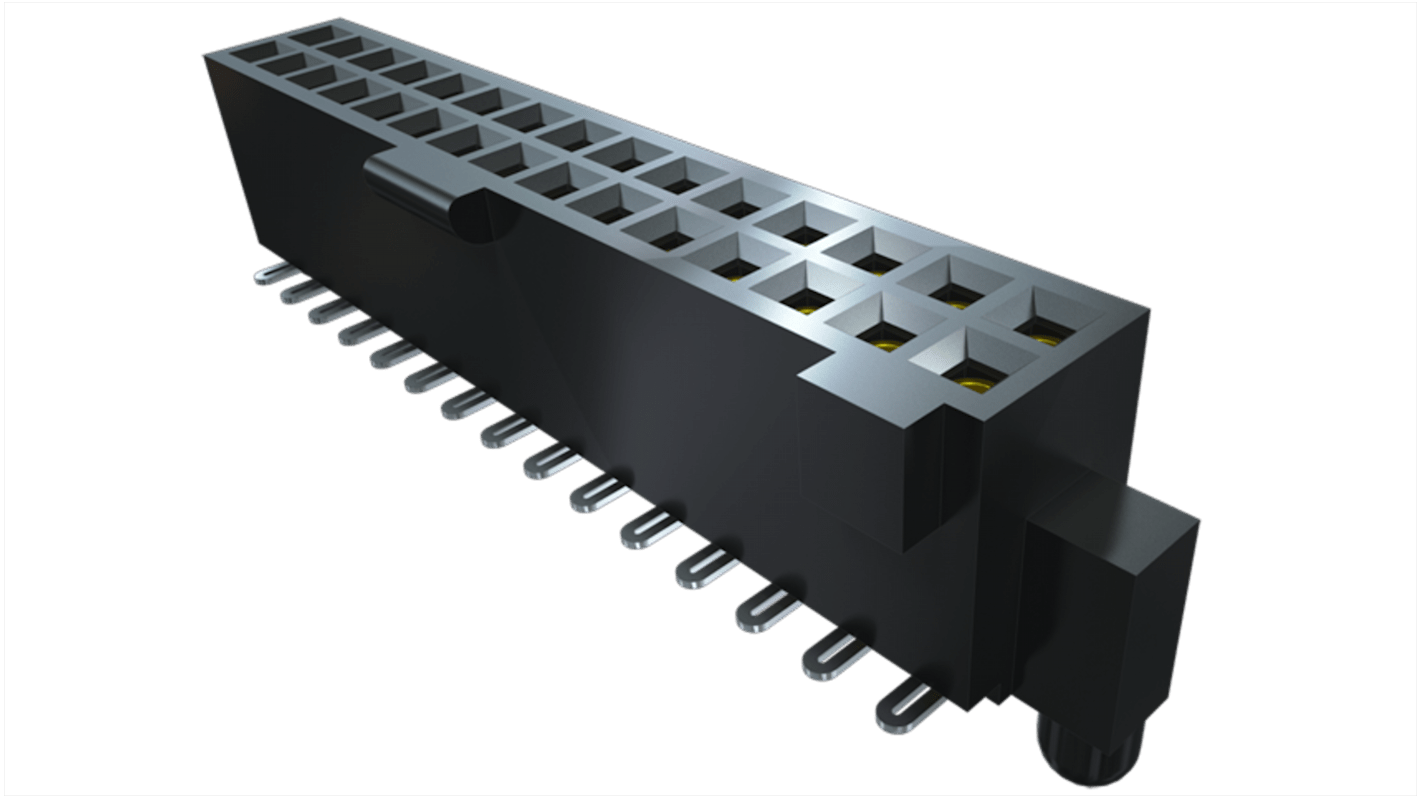

Samtec SFML Series Straight Through Hole PCB Socket, 14-Contact, 2 Row, 1.27 mm Pitch Solder

View all PCB Sockets
Bulk discount available

Subtotal (1 tube of 45 units)*

MYR465.255

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 17 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
Per Tube*
45 - 180MYR10.339MYR465.26
225 - 405MYR9.926MYR446.67
450 - 855MYR9.512MYR428.04
900 +MYR9.305MYR418.73

*price indicative

RS Stock No.:
226-3276
Mfr. Part No.:
SFML-107-T1-S-D
Manufacturer:
Samtec
Find similar products by selecting one or more attributes.
Select all

Brand

Samtec

Product Type

PCB Socket

Number of Contacts

14

Sub Type

High Reliability Socket Strip

Number of Rows

2

Current

3.2A

Pitch

1.27mm

Housing Material

Liquid Crystal Polymer

Termination Type

Solder

Mount Type

Through Hole

Orientation

Straight

Stacking Height

12mm

Connector System

Board-to-Board, Cable

Voltage

250 V

Series

SFML

Row Pitch

1.27mm

Minimum Operating Temperature

-55°C

Contact Plating

Gold

Contact Material

Beryllium Copper Alloy

Contact Gender

Female

Maximum Operating Temperature

125°C

Standards/Approvals

No

The Samtec SFML series locking PCB socket has 1.27 mm pitch and the contacts are made from phosphor bronze and has gold plating on it. It is available in single and double row configuration.

High-reliability Tiger Eye contacts

Available in standard or low insertion contacts

Up to 8 Gbps performance

Rugged options available

Vertical row configuration

Extended life product
