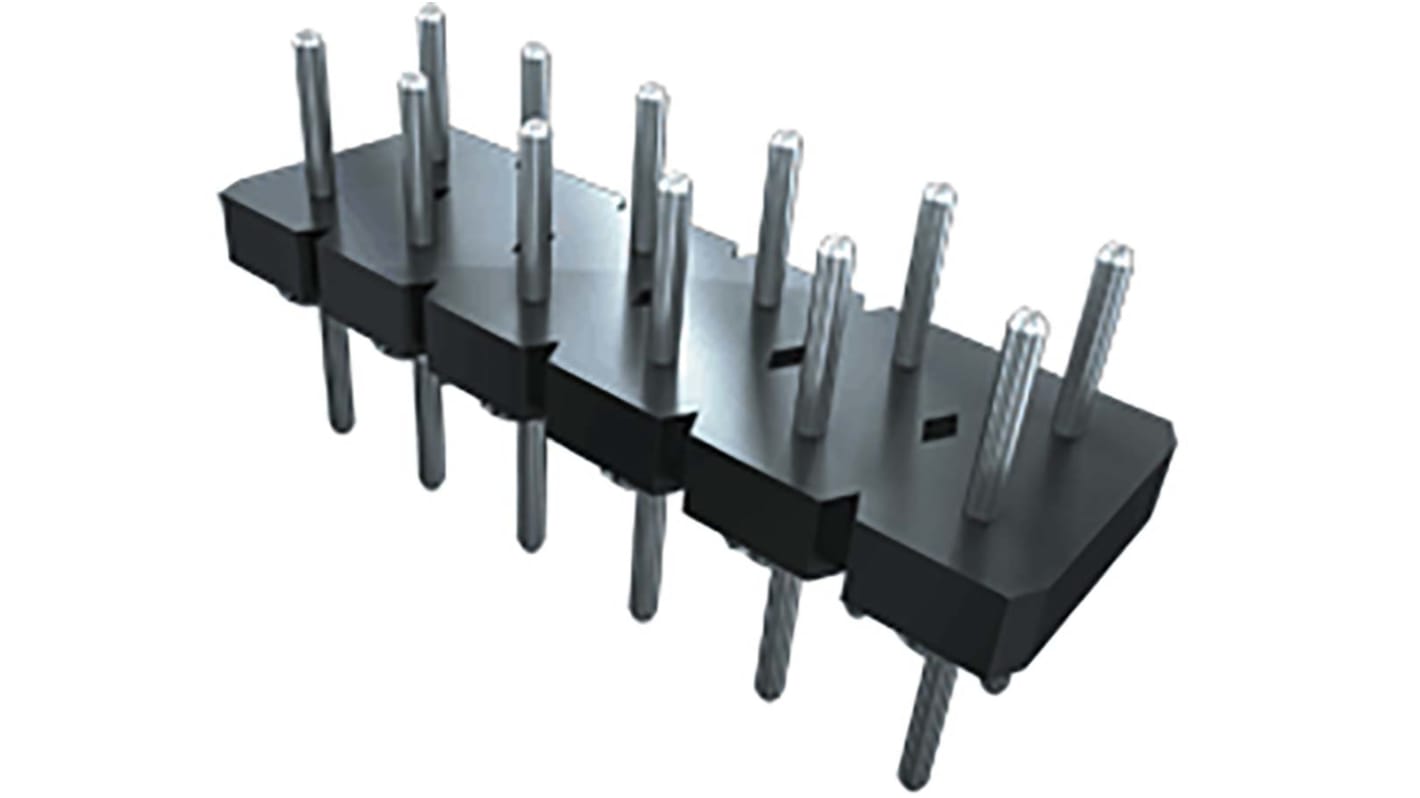

Samtec BDL Series Straight Through Hole Mount PCB Socket, 20-Contact, 2-Row, 2.54mm Pitch, Solder Termination
- RS Stock No.:
- 197-0056
- Mfr. Part No.:
- BDL-110-T-E
- Manufacturer:
- Samtec
Bulk discount available
Subtotal (1 tube of 22 units)*
MYR508.706
FREE delivery for orders over RM 500.00
Temporarily out of stock
- Shipping from 14 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Tube* |
|---|---|---|
| 22 - 22 | MYR23.123 | MYR508.71 |
| 44 - 66 | MYR22.767 | MYR500.87 |
| 88 + | MYR22.324 | MYR491.13 |
*price indicative
- RS Stock No.:
- 197-0056
- Mfr. Part No.:
- BDL-110-T-E
- Manufacturer:
- Samtec
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Number of Contacts | 20 | |
| Number of Rows | 2 | |
| Pitch | 2.54mm | |
| Type | Board to Board | |
| Mounting Type | Through Hole | |
| Body Orientation | Straight | |
| Termination Method | Solder | |
| Series | BDL | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Number of Contacts 20 | ||
Number of Rows 2 | ||
Pitch 2.54mm | ||
Type Board to Board | ||
Mounting Type Through Hole | ||
Body Orientation Straight | ||
Termination Method Solder | ||
Series BDL | ||
The Samtec BDL-110-T-E is a BDL series machine board stacking strip. This strip has Low-profile design achieves 3.89mm board spacing when mated with SL series.
Temperature Range is -55°C to +125°C
Terminal material is Phosphor Bronze or Brass
Plating is Au or Sn over 50μ" (1.27μm) Ni
Terminal material is Phosphor Bronze or Brass
Plating is Au or Sn over 50μ" (1.27μm) Ni
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
