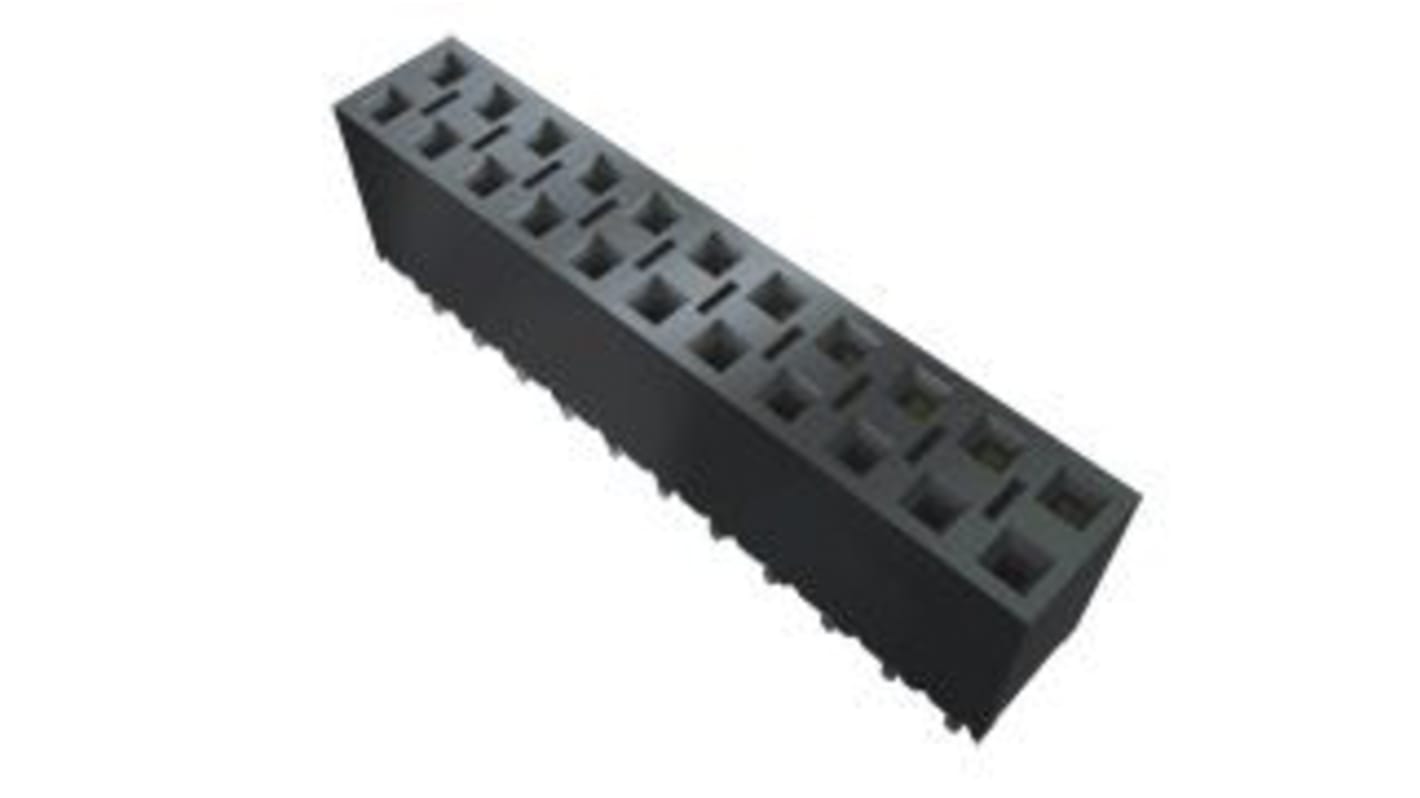

Samtec BCS Series Straight Through Hole Mount PCB Socket, 24-Contact, 2-Row, 2.54mm Pitch, Solder Termination

RS Stock No.:: 180-3640
Mfr. Part No.:: BCS-112-L-D-PE
Manufacturer:: Samtec

Samtec BCS Series Straight Through Hole Mount PCB Socket, 24-Contact, 2-Row, 2.54mm Pitch, Solder Termination

Bulk discount available

Subtotal (1 tube of 18 units)*

MYR307.296

Stock information currently inaccessible

Units	Per Unit	Per Tube*
18 - 18	MYR17.072	MYR307.30
36 - 54	MYR16.696	MYR300.53
72 +	MYR16.388	MYR294.98

*price indicative

RS Stock No.:: 180-3640
Mfr. Part No.:: BCS-112-L-D-PE
Manufacturer:: Samtec

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Samtec
	Number of Contacts	24
	Number of Rows	2
	Pitch	2.54mm
	Type	Pass-Through Socket Strip
	Mounting Type	Through Hole
	Body Orientation	Straight
	Termination Method	Solder
	Current Rating	4.6A
	Voltage Rating	475 V
	Series	BCS
	Contact Material	Bronze

	Select all
	Brand Samtec
	Number of Contacts 24
	Number of Rows 2
	Pitch 2.54mm
	Type Pass-Through Socket Strip
	Mounting Type Through Hole
	Body Orientation Straight
	Termination Method Solder
	Current Rating 4.6A
	Voltage Rating 475 V
	Series BCS
	Contact Material Bronze

Datasheet

Pitch: .100" (2.54 mm)
Contact System: Tiger Claw™
Orientation: Vertical, horizontal
Termination: Through-hole
Application: Single and double row up to 100 pins
Special Features: Top and bottom entry pass-through options

Samtec BCS Series Straight Through Hole Mount PCB Socket, 24-Contact, 2-Row, 2.54mm Pitch, Solder Termination
