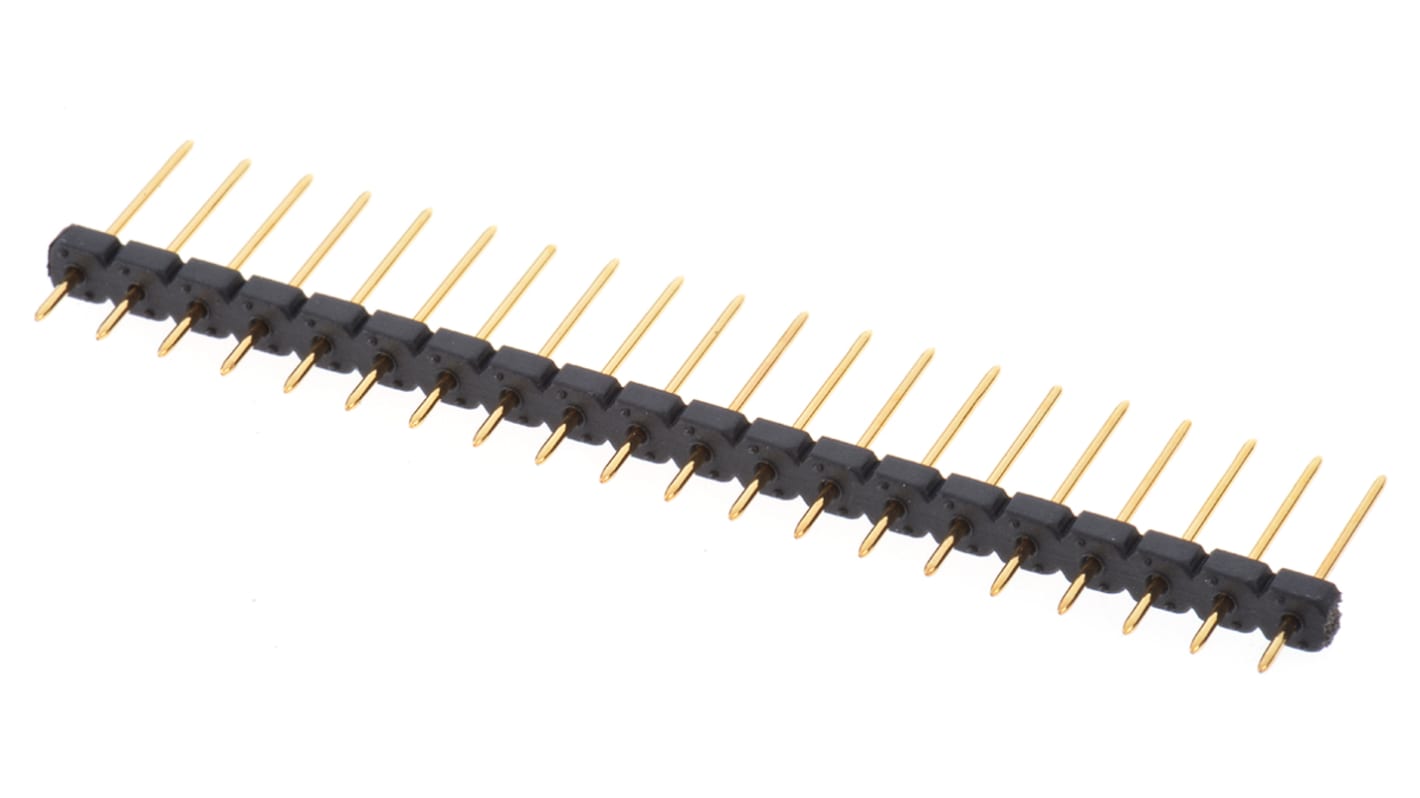

ASSMANN WSW AP Series Straight Through Hole Pin Header, 20 Contact(s), 2.54 mm Pitch, 1 Row, Unshrouded
- RS Stock No.:
- 674-2334
- Mfr. Part No.:
- AP 119-20/G-N
- Manufacturer:
- ASSMANN WSW
This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 5 units)*
MYR61.57
FREE delivery for orders over RM 500.00
Temporarily out of stock
- 215 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 5 - 95 | MYR12.314 | MYR61.57 |
| 100 - 370 | MYR12.054 | MYR60.27 |
| 375 - 1495 | MYR11.688 | MYR58.44 |
| 1500 - 2995 | MYR11.402 | MYR57.01 |
| 3000 + | MYR11.15 | MYR55.75 |
*price indicative
- RS Stock No.:
- 674-2334
- Mfr. Part No.:
- AP 119-20/G-N
- Manufacturer:
- ASSMANN WSW
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ASSMANN WSW | |
| Series | AP | |
| Product Type | Pin Header | |
| Current | 3A | |
| Pitch | 2.54mm | |
| Number of Contacts | 20 | |
| Housing Material | Polyamide | |
| Number of Rows | 1 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | Through Hole | |
| Connector System | Board-to-Board | |
| Contact Plating | Gold | |
| Contact Material | Brass | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 2.54mm | |
| Contact Gender | Male | |
| Tail Pin Length | 3mm | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | No | |
| Mating Pin Length | 7.9mm | |
| Voltage | 250 V | |
| Select all | ||
|---|---|---|
Brand ASSMANN WSW | ||
Series AP | ||
Product Type Pin Header | ||
Current 3A | ||
Pitch 2.54mm | ||
Number of Contacts 20 | ||
Housing Material Polyamide | ||
Number of Rows 1 | ||
Orientation Straight | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type Through Hole | ||
Connector System Board-to-Board | ||
Contact Plating Gold | ||
Contact Material Brass | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 2.54mm | ||
Contact Gender Male | ||
Tail Pin Length 3mm | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals No | ||
Mating Pin Length 7.9mm | ||
Voltage 250 V | ||
- COO (Country of Origin):
- DE
Pin Headers 2.54mm Pitch
2.54mm Assmann Board to Board
