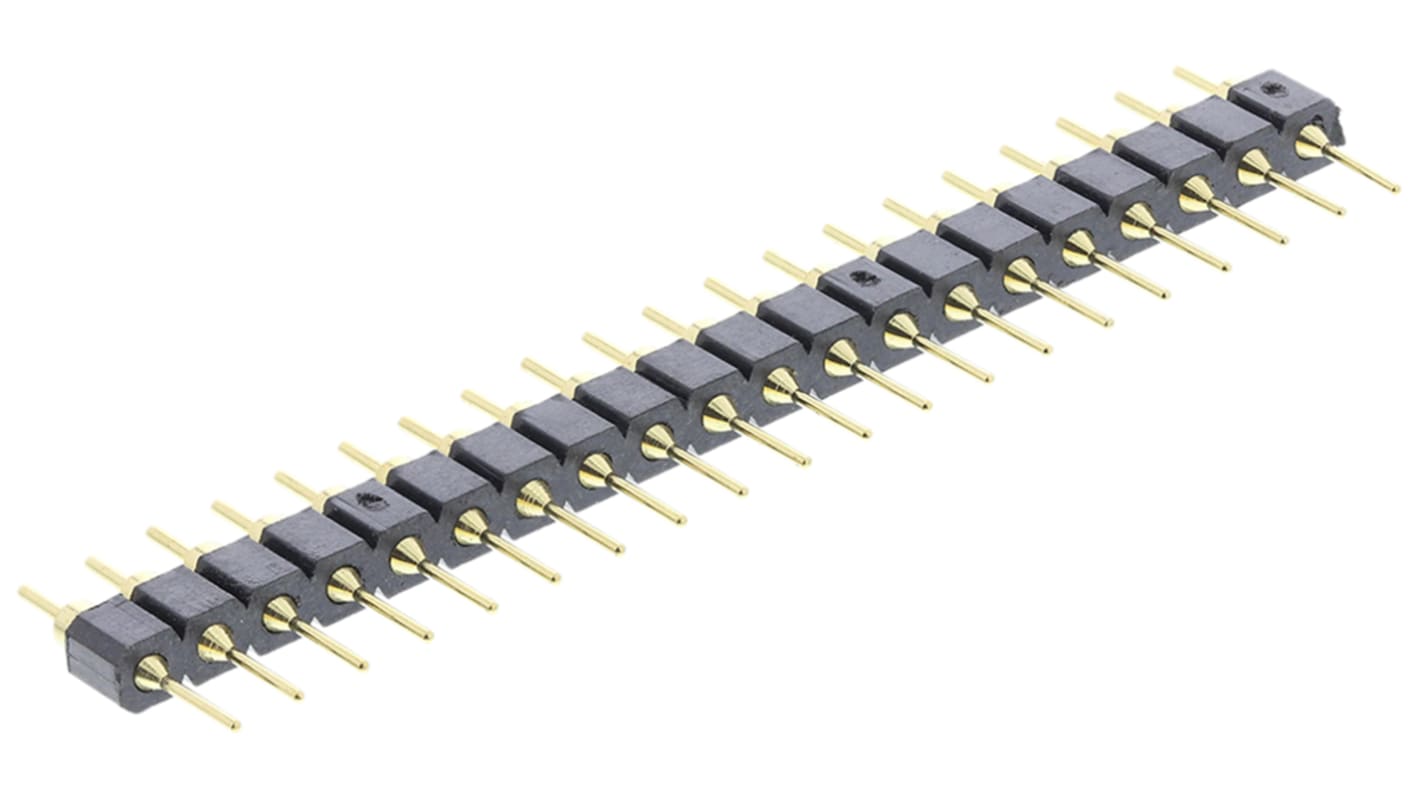

ASSMANN WSW AW Series Straight Through Hole Pin Header, 20 Contact(s), 2.54 mm Pitch, 1 Row, Unshrouded
- RS Stock No.:
- 674-2309
- Mfr. Part No.:
- AW 122-20/G-T
- Manufacturer:
- ASSMANN WSW
This image is representative of the product range
Bulk discount available
View bulk pricing optionSubtotal (1 pack of 5 units)*
MYR92.85
FREE delivery for orders over RM 500.00
In Stock
- 165 unit(s) ready to ship from another location
- Plus 165 unit(s) shipping from 09 June 2026
- Plus 550 unit(s) shipping from 16 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 5 - 95 | MYR18.57 | MYR92.85 |
| 100 - 370 | MYR18.186 | MYR90.93 |
| 375 - 1495 | MYR17.63 | MYR88.15 |
| 1500 - 2995 | MYR17.204 | MYR86.02 |
| 3000 + | MYR16.838 | MYR84.19 |
*price indicative
- RS Stock No.:
- 674-2309
- Mfr. Part No.:
- AW 122-20/G-T
- Manufacturer:
- ASSMANN WSW
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ASSMANN WSW | |
| Product Type | Pin Header | |
| Series | AW | |
| Current | 3A | |
| Pitch | 2.54mm | |
| Number of Contacts | 20 | |
| Housing Material | Polybutylene Terephthalate | |
| Number of Rows | 1 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Unshrouded | |
| Connector System | Board-to-Board | |
| Mount Type | Through Hole | |
| Contact Material | Brass | |
| Contact Plating | Gold | |
| Row Pitch | 2.54mm | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -55°C | |
| Contact Gender | Female | |
| Tail Pin Length | 4.15mm | |
| Maximum Operating Temperature | 125°C | |
| Mating Pin Length | 3mm | |
| Standards/Approvals | No | |
| Voltage | 100V | |
| Select all | ||
|---|---|---|
Brand ASSMANN WSW | ||
Product Type Pin Header | ||
Series AW | ||
Current 3A | ||
Pitch 2.54mm | ||
Number of Contacts 20 | ||
Housing Material Polybutylene Terephthalate | ||
Number of Rows 1 | ||
Orientation Straight | ||
Shrouded/Unshrouded Unshrouded | ||
Connector System Board-to-Board | ||
Mount Type Through Hole | ||
Contact Material Brass | ||
Contact Plating Gold | ||
Row Pitch 2.54mm | ||
Termination Type Solder | ||
Minimum Operating Temperature -55°C | ||
Contact Gender Female | ||
Tail Pin Length 4.15mm | ||
Maximum Operating Temperature 125°C | ||
Mating Pin Length 3mm | ||
Standards/Approvals No | ||
Voltage 100V | ||
