BK Precision Bench Digital Multimeter True RMS
- RS Stock No.:
- 206-7714
- Mfr. Part No.:
- BK5493CGPIB
- Manufacturer:
- BK Precision
Subtotal (1 unit)*
MYR8,894.94
FREE delivery for orders over RM 500.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR8,894.94 |
*price indicative
- RS Stock No.:
- 206-7714
- Mfr. Part No.:
- BK5493CGPIB
- Manufacturer:
- BK Precision
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | BK Precision | |
| Product Type | Multimeter | |
| Multimeter Type | Bench | |
| Display Type | Digital | |
| Resistance Resolution | 100mΩ | |
| True RMS | Yes | |
| DC Current Accuracy | ±0.12 % rdg + 4 Digits | |
| DC Voltage Accuracy | ±0.005 % rdg + 3.5 Digits | |
| AC Voltage Accuracy | ±0.6 % rdg + 0.08 | |
| AC Current Accuracy | ±0.35 % rdg + 0.06 | |
| AC Voltage Resolution | 0.1μV | |
| AC Current Resolution | 1μA | |
| DC Current Resolution | 10μA | |
| DC Voltage Resolution | 0.1 μV | |
| Maximum Frequency | 500kHz | |
| Resistance Measurement Accuracy | ±0.15 % + 3 Digits | |
| Maximum Operating Temperature | 40°C | |
| Height | 100mm | |
| Width | 225 mm | |
| Standards/Approvals | No | |
| Weight | 2.5kg | |
| Length | 355mm | |
| Select all | ||
|---|---|---|
Brand BK Precision | ||
Product Type Multimeter | ||
Multimeter Type Bench | ||
Display Type Digital | ||
Resistance Resolution 100mΩ | ||
True RMS Yes | ||
DC Current Accuracy ±0.12 % rdg + 4 Digits | ||
DC Voltage Accuracy ±0.005 % rdg + 3.5 Digits | ||
AC Voltage Accuracy ±0.6 % rdg + 0.08 | ||
AC Current Accuracy ±0.35 % rdg + 0.06 | ||
AC Voltage Resolution 0.1μV | ||
AC Current Resolution 1μA | ||
DC Current Resolution 10μA | ||
DC Voltage Resolution 0.1 μV | ||
Maximum Frequency 500kHz | ||
Resistance Measurement Accuracy ±0.15 % + 3 Digits | ||
Maximum Operating Temperature 40°C | ||
Height 100mm | ||
Width 225 mm | ||
Standards/Approvals No | ||
Weight 2.5kg | ||
Length 355mm | ||
- COO (Country of Origin):
- CN

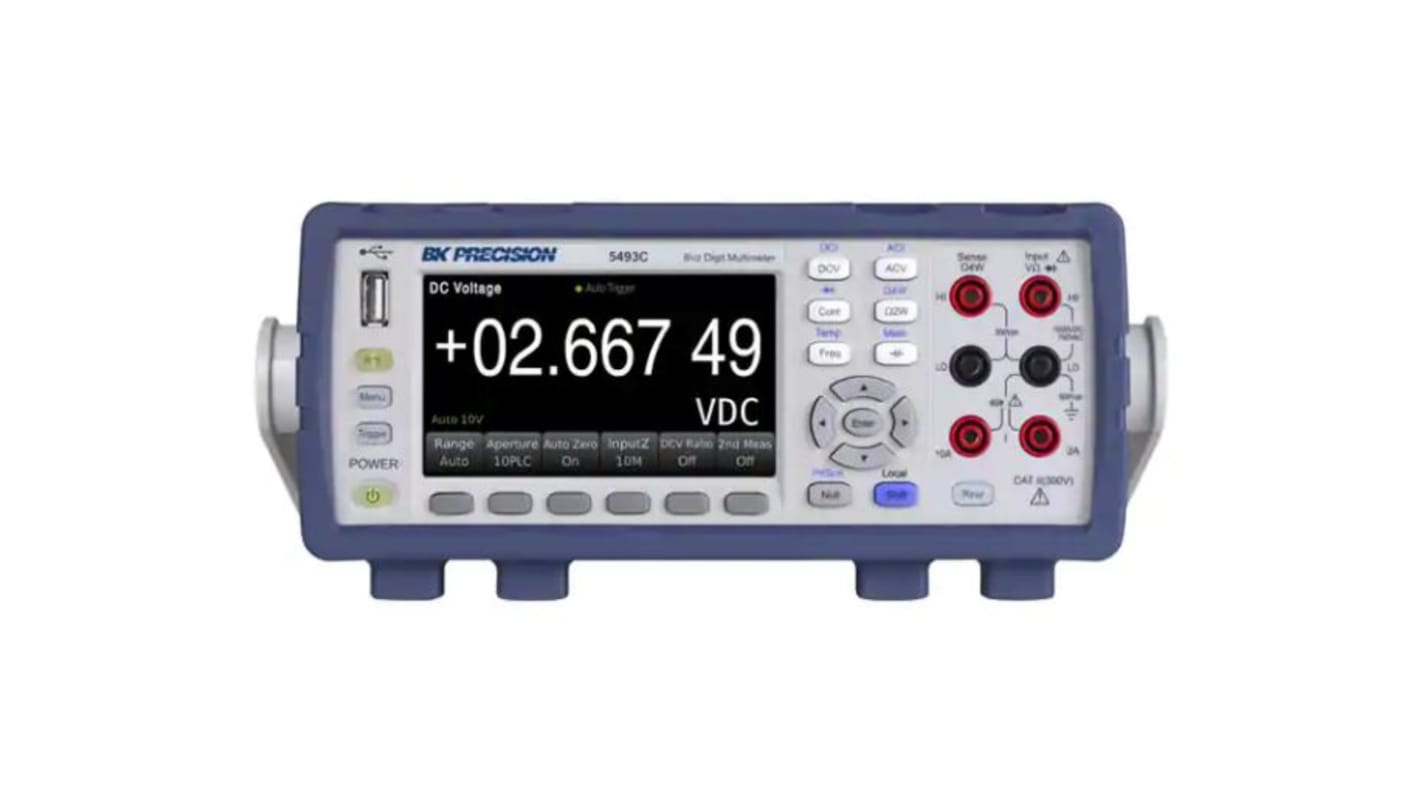

The BK Precision 5490C Series 6½ digit bench multimeter are designed for accuracy, repeatability and ease-of-use. A wide measurement range with speeds up to 1000 readings per second, and a basic DCV accuracy up to 35 ppm deliver stable measurement results quickly and accurately. These general purpose meters are well suited for demanding engineering, production and service applications.
12 measurement functions: DCV, ACV, DCI,
ACI, 2 and 4-wire resistance, capacitance, frequency, diode, temperature, continuity test, DCV Ratio
High-contrast 4.3-inch full colour LCD
Histogram, bar meter, and trend chart offer a variety of data analysis options
Accurate frequency measurements to 1 MHz
