RS PRO RS14 Handheld Digital Multimeter, 10A ac Max, 10A dc Max, 600V ac Max
- RS Stock No.:
- 123-1938
- Manufacturer:
- RS PRO

View all Multimeters
34 In SG stock for delivery within 2 working days
2530 In Global stock for delivery within 4 working day(s)
Price Each
Was MYR232.97
You pay
MYR191.32
units | Per Unit |
1 + | MYR191.32 |
- RS Stock No.:
- 123-1938
- Manufacturer:
- RS PRO
- COO (Country of Origin):
- CN
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

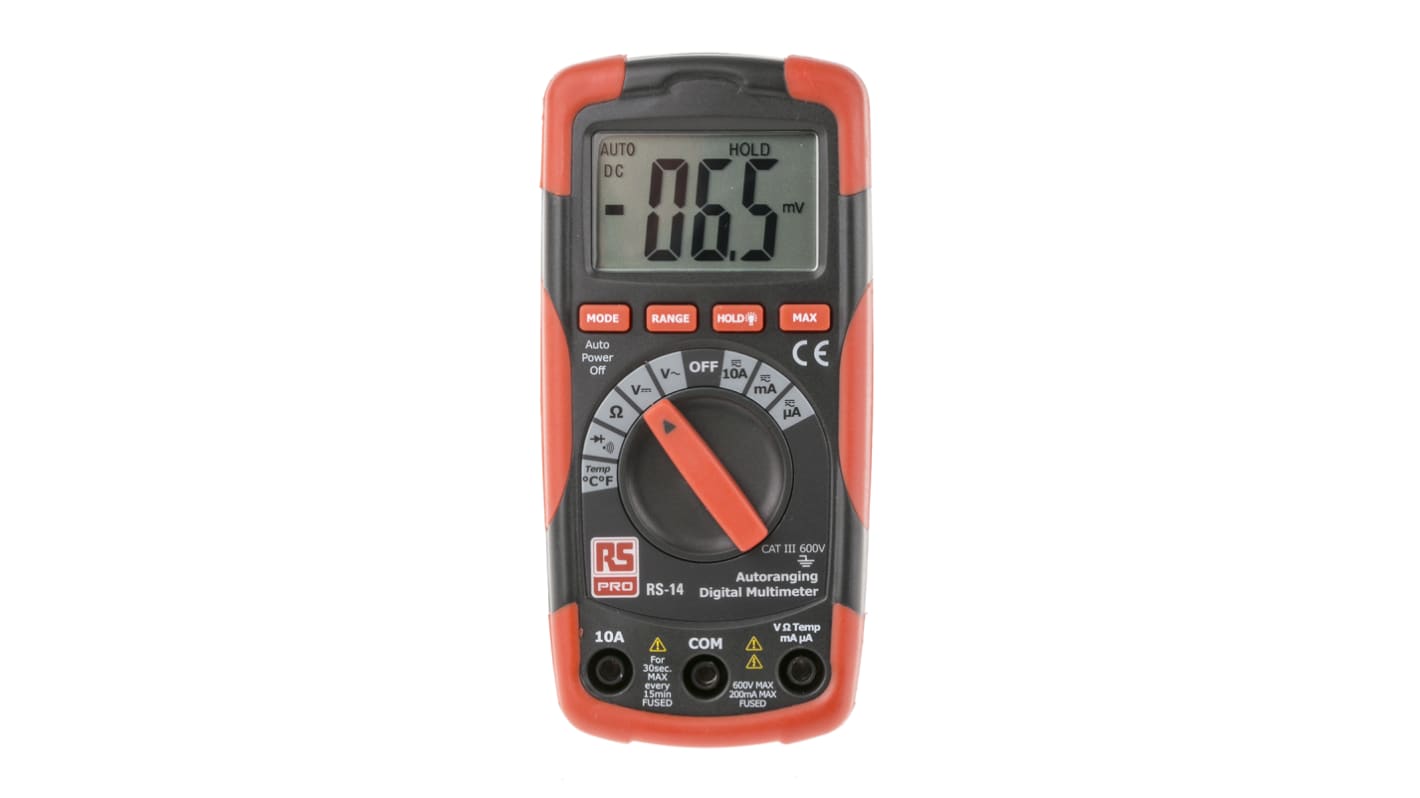

RS PRO RS14 Digital Multimeter
The RS PRO RS14 digital multimeter (DMM) is a handheld tool which can measure voltage, electrical current and resistance with diode and continuity check. There is also a hold function available in the compact design making it very user-friendly. The multimeter is also CAT III rated for 600V.
This battery-powered device is great for continuity and portability. A robust, double-moulded, plastic housing provides ultimate protection from harsh environments. Included with the multimeter itself are integral test leads, 9V battery, type K temperature probe and a user manual. The R14 is RS Approved, meaning not only is it great value for money, but you can rely on its quality.
This battery-powered device is great for continuity and portability. A robust, double-moulded, plastic housing provides ultimate protection from harsh environments. Included with the multimeter itself are integral test leads, 9V battery, type K temperature probe and a user manual. The R14 is RS Approved, meaning not only is it great value for money, but you can rely on its quality.
Features and Benefits:
Compact and handheld
Digital 2000 count LCD display
3-year warranty
104 x 70 x 48mm dimension
Continuity tester
Functions measured: AC and DC Current, AC and DC Voltage, Resistance, Temperature Measurement
Diode test
Auto power off
Battery Type 1 x 9V
Low battery indication
Digital 2000 count LCD display
3-year warranty
104 x 70 x 48mm dimension
Continuity tester
Functions measured: AC and DC Current, AC and DC Voltage, Resistance, Temperature Measurement
Diode test
Auto power off
Battery Type 1 x 9V
Low battery indication
Typical Applications:
A digital multimeter is a handy test tool that measures electrical values such as voltage, current, and resistance. A DMM is used by technicians in the following areas:
Electrical and electronic industries
Safety guidelines
When using any electrical test equipment it is advised that you refer to the users manual for proper working operating procedures and safety precautions in order to avoid potential safety hazards.
A digital multimeter is a handy test tool that measures electrical values such as voltage, current, and resistance. A DMM is used by technicians in the following areas:
Electrical and electronic industries
Safety guidelines
When using any electrical test equipment it is advised that you refer to the users manual for proper working operating procedures and safety precautions in order to avoid potential safety hazards.
What is the difference between an analogue and a digital multimeter?
The main difference is the display. A digital multimeter will show the results as numbers on a screen (usually a LED or LCD screen) whereas the analogue version has a needle to show the value.
The main difference is the display. A digital multimeter will show the results as numbers on a screen (usually a LED or LCD screen) whereas the analogue version has a needle to show the value.
Standards
EN61010-1 CAT III 600 V
Supplied with
Test leads, 9V Battery, type K temperature probe, user manual
Specifications
Attribute | Value |
Multimeter Type | Handheld |
True RMS | No |
Functions Measured | AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Temperature |
Absolute Maximum DC Voltage Measurement | 600V dc |
Absolute Maximum AC Voltage Measurement | 600V ac |
Absolute Maximum DC Current Measurement | 10A dc |
Absolute Maximum AC Current Measurement | 10A ac |
Absolute Maximum Resistance Measurement | 20MΩ |
Absolute Maximum Temperature Measurement | +1000 °C, +1832°F |
Maximum Frequency | 60Hz |
Display Type | Digital |
Model Number p | RS14 |
DC Current Measurement Resolution | 0.1µA dc |
AC Current Measurement Resolution | 0.1µA ac |
DC Voltage Measurement Resolution | 0.1mV dc |
Resistance Measurement Resolution | 100mΩ |
AC Voltage Measurement Resolution | 0.1mV ac |
Temperature Measurement Resolution | 1 °F, 1°C |
Safety Category Level | CAT III |
Weight | 255g |
Best Resistance Measurement Accuracy | ±1% ± 2 Digits |
Maximum Operating Temperature | +50°C |
Battery Type | 9V, IEC 6F22, NEDA 1604 |
Height | 150mm |
Best DC Current Accuracy | ±1% ± 3 Digits |
Safety Category Voltage | 600 V, 1000V |
Best Temperature Measurement Accuracy | ±3% + 8 Digits, ±3% ± 5 Digits |
Minimum Operating Temperature | 0°C |
Best AC Voltage Accuracy | ±1.2% ± 3 Digits |
Dimensions | 70 x 48 x 150mm |
Best DC Voltage Accuracy | ±0.5% ± 2 Digits |
Length | 70mm |
Best AC Current Accuracy | ±1.5% ± 5 Digits |
Width | 48mm |
