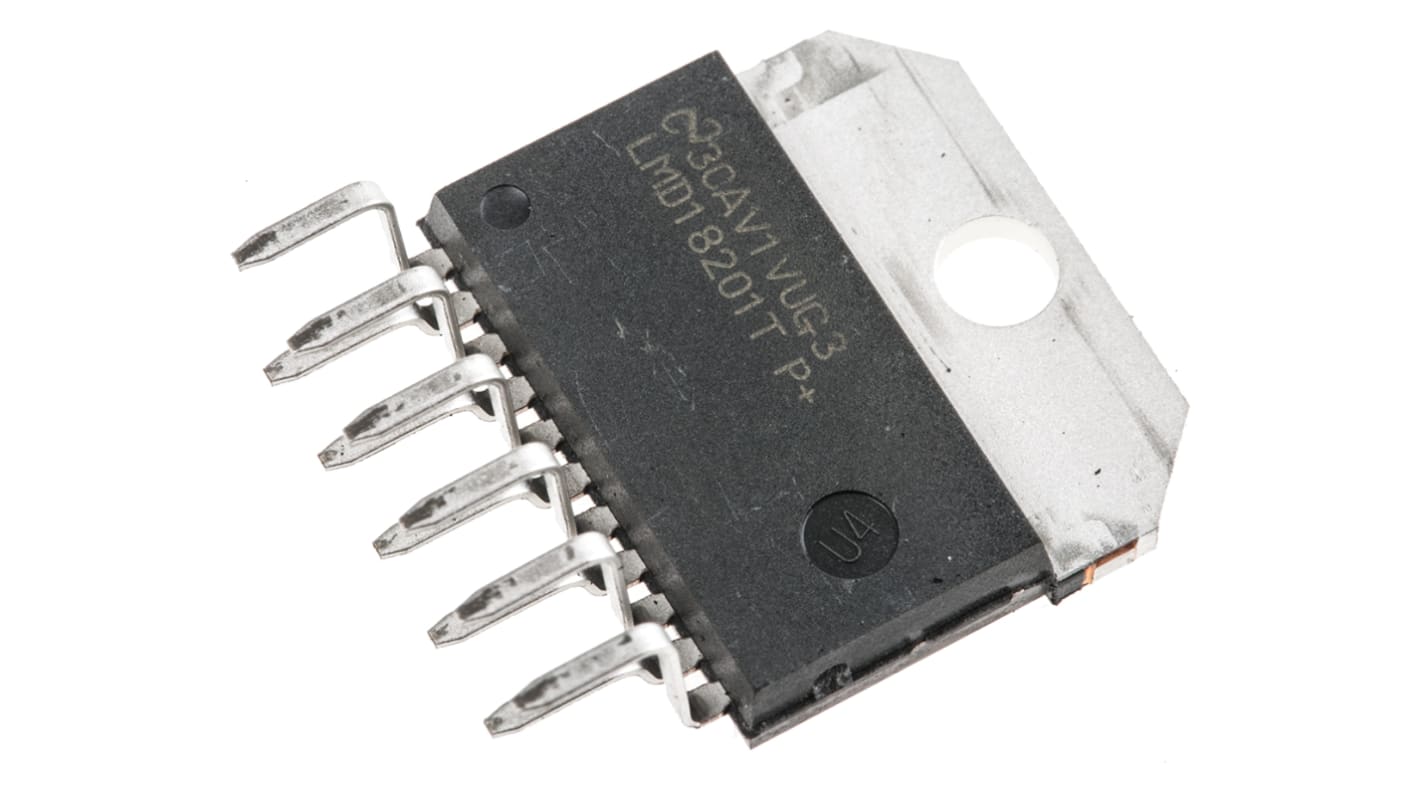

Texas Instruments LMD18201T/NOPB, Brushed Motor Driver IC, 55 V 3A 11-Pin, TO-220
- RS Stock No.:
- 407-139
- Mfr. Part No.:
- LMD18201T/NOPB
- Manufacturer:
- Texas Instruments
Subtotal (1 pack of 5 units)**
MYR481.45
Available for back order.*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Units | Per Unit | Per Pack** |
---|---|---|
5 + | MYR96.29 | MYR481.45 |
**price indicative
- RS Stock No.:
- 407-139
- Mfr. Part No.:
- LMD18201T/NOPB
- Manufacturer:
- Texas Instruments
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Texas Instruments | |
Motor Type | Brushed DC | |
Output Configuration | Full Bridge | |
Maximum IGBT Collector Current | 3A | |
Maximum Collector Emitter Voltage | 55 V | |
Mounting Type | Through Hole | |
Package Type | TO-220 | |
Maximum Operating Supply Voltage | 55 V | |
Pin Count | 11 | |
Minimum Operating Supply Voltage | 12 V | |
Dimensions | 20.02 x 4.5 x 10.69mm | |
Height | 10.69mm | |
Width | 4.5mm | |
Length | 20.02mm | |
Maximum Operating Temperature | +125 °C | |
Minimum Operating Temperature | -40 °C | |
Select all | ||
---|---|---|
Brand Texas Instruments | ||
Motor Type Brushed DC | ||
Output Configuration Full Bridge | ||
Maximum IGBT Collector Current 3A | ||
Maximum Collector Emitter Voltage 55 V | ||
Mounting Type Through Hole | ||
Package Type TO-220 | ||
Maximum Operating Supply Voltage 55 V | ||
Pin Count 11 | ||
Minimum Operating Supply Voltage 12 V | ||
Dimensions 20.02 x 4.5 x 10.69mm | ||
Height 10.69mm | ||
Width 4.5mm | ||
Length 20.02mm | ||
Maximum Operating Temperature +125 °C | ||
Minimum Operating Temperature -40 °C | ||
