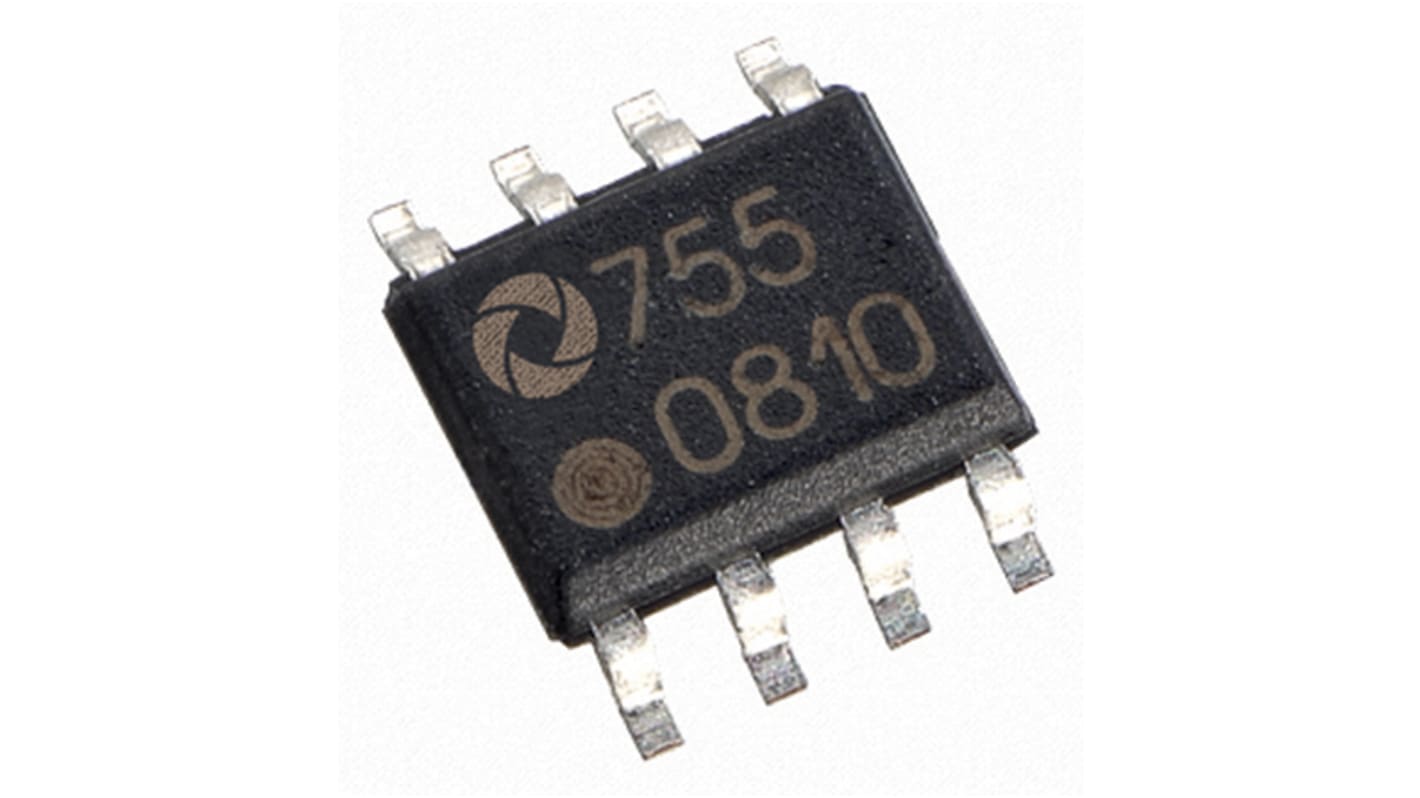

Sensitec Magnetic Pickup
- RS Stock No.:
- 765-9595
- Mfr. Part No.:
- AFF755BHA-AD
- Manufacturer:
- Sensitec
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 765-9595
- Mfr. Part No.:
- AFF755BHA-AD
- Manufacturer:
- Sensitec
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sensitec | |
| Supply Voltage | 1.2 → 9 V | |
| Overall Height | 4.9mm | |
| Overall Width | 3.8mm | |
| Overall Depth | 1.75mm | |
| Minimum Operating Temperature | -40°C | |
| Mounting Type | Surface Mount | |
| Maximum Operating Temperature | +125°C | |
| Switching Frequency | 1 MHz | |
| Select all | ||
|---|---|---|
Brand Sensitec | ||
Supply Voltage 1.2 → 9 V | ||
Overall Height 4.9mm | ||
Overall Width 3.8mm | ||
Overall Depth 1.75mm | ||
Minimum Operating Temperature -40°C | ||
Mounting Type Surface Mount | ||
Maximum Operating Temperature +125°C | ||
Switching Frequency 1 MHz | ||
- COO (Country of Origin):
- DE
AFF755 MagnetoResistive Magnetic Field Sensors
AFF775 low noise magnetic field sensors from Sensitec are based on the AMR (anisotropic magnetoresistive) effect and feature a Wheatstone bridge. It also includes an integrated flip coil for offset correction.
AFF775 magnetic field sensors are ideal for detecting weak magnetic fields, including the Earth’s.
AFF775 magnetic field sensors are ideal for detecting weak magnetic fields, including the Earth’s.
Features and Benefits
Extreme sensitivity
Wide magnetic field strength range
Low power consumption
Low flip coil resistance
Good signal to noise ratio
Extreme sensitivity
Wide magnetic field strength range
Low power consumption
Low flip coil resistance
Good signal to noise ratio
Magnetoresistive Sensors, Sensitec
