STMicroelectronics MDmesh Type N-Channel MOSFET, 20 A, 600 V Enhancement, 3-Pin TO-220
- RS Stock No.:
- 920-8739
- Mfr. Part No.:
- STP20NM60FP
- Manufacturer:
- STMicroelectronics

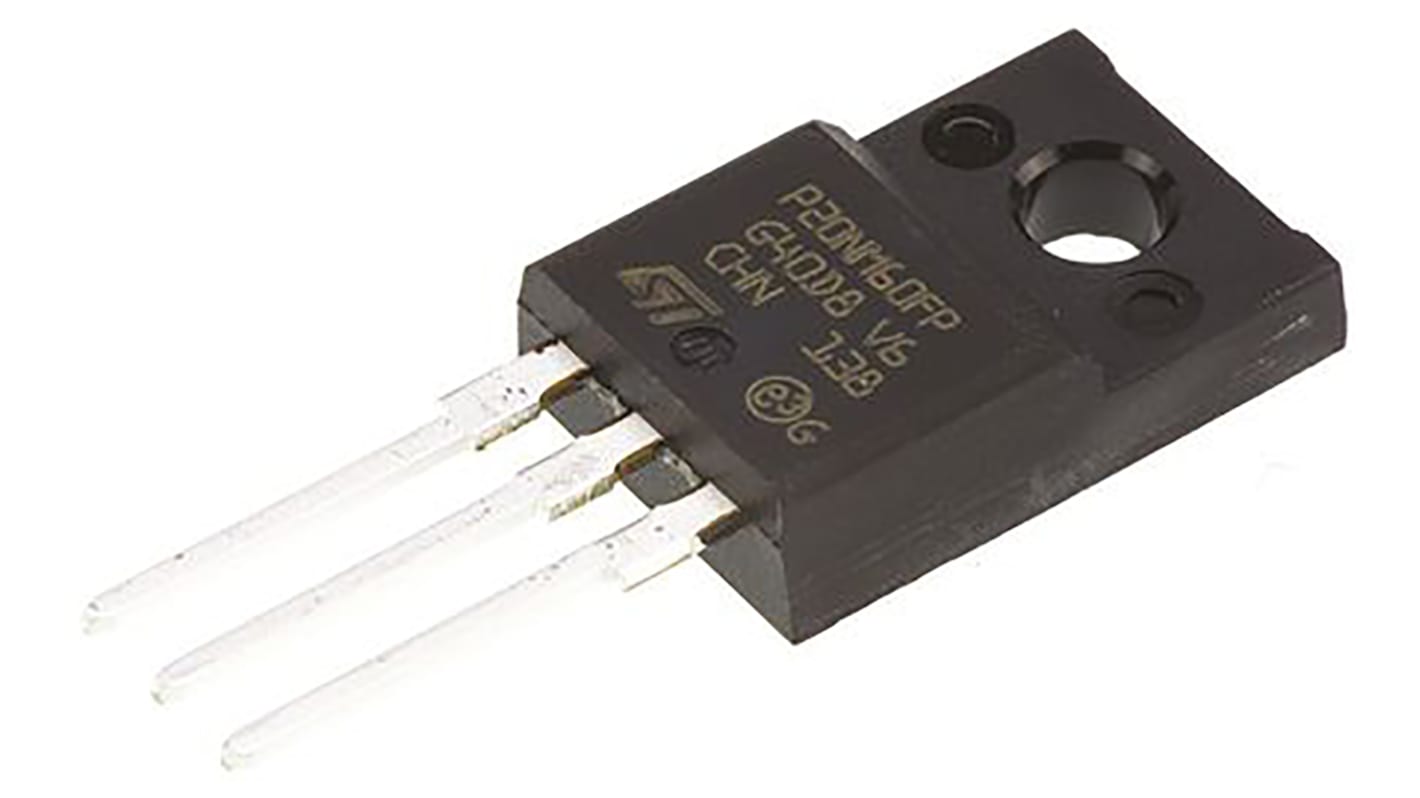

This image is representative of the product range
Bulk discount available
Subtotal (1 tube of 50 units)*
MYR973.30
FREE delivery for orders over RM 500.00
In Stock
- 600 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Tube* |
|---|---|---|
| 50 - 50 | MYR19.466 | MYR973.30 |
| 100 - 150 | MYR19.166 | MYR958.30 |
| 200 + | MYR18.792 | MYR939.60 |
*price indicative
- RS Stock No.:
- 920-8739
- Mfr. Part No.:
- STP20NM60FP
- Manufacturer:
- STMicroelectronics
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 20A | |
| Maximum Drain Source Voltage Vds | 600V | |
| Series | MDmesh | |
| Package Type | TO-220 | |
| Mount Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 290mΩ | |
| Channel Mode | Enhancement | |
| Maximum Power Dissipation Pd | 45W | |
| Typical Gate Charge Qg @ Vgs | 39nC | |
| Forward Voltage Vf | 1.5V | |
| Minimum Operating Temperature | -65°C | |
| Maximum Gate Source Voltage Vgs | 30 V | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | No | |
| Width | 4.6 mm | |
| Length | 10.4mm | |
| Height | 9.3mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 20A | ||
Maximum Drain Source Voltage Vds 600V | ||
Series MDmesh | ||
Package Type TO-220 | ||
Mount Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 290mΩ | ||
Channel Mode Enhancement | ||
Maximum Power Dissipation Pd 45W | ||
Typical Gate Charge Qg @ Vgs 39nC | ||
Forward Voltage Vf 1.5V | ||
Minimum Operating Temperature -65°C | ||
Maximum Gate Source Voltage Vgs 30 V | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals No | ||
Width 4.6 mm | ||
Length 10.4mm | ||
Height 9.3mm | ||
Automotive Standard No | ||
N-Channel MDmesh™, 600V/650V, STMicroelectronics
MOSFET Transistors, STMicroelectronics
