DiodesZetex Dual 2 Type N-Channel MOSFET, 60 V Enhancement, 6-Pin SOT-363 DMN61D9UDWQ-7
- RS Stock No.:
- 246-7520
- Mfr. Part No.:
- DMN61D9UDWQ-7
- Manufacturer:
- DiodesZetex

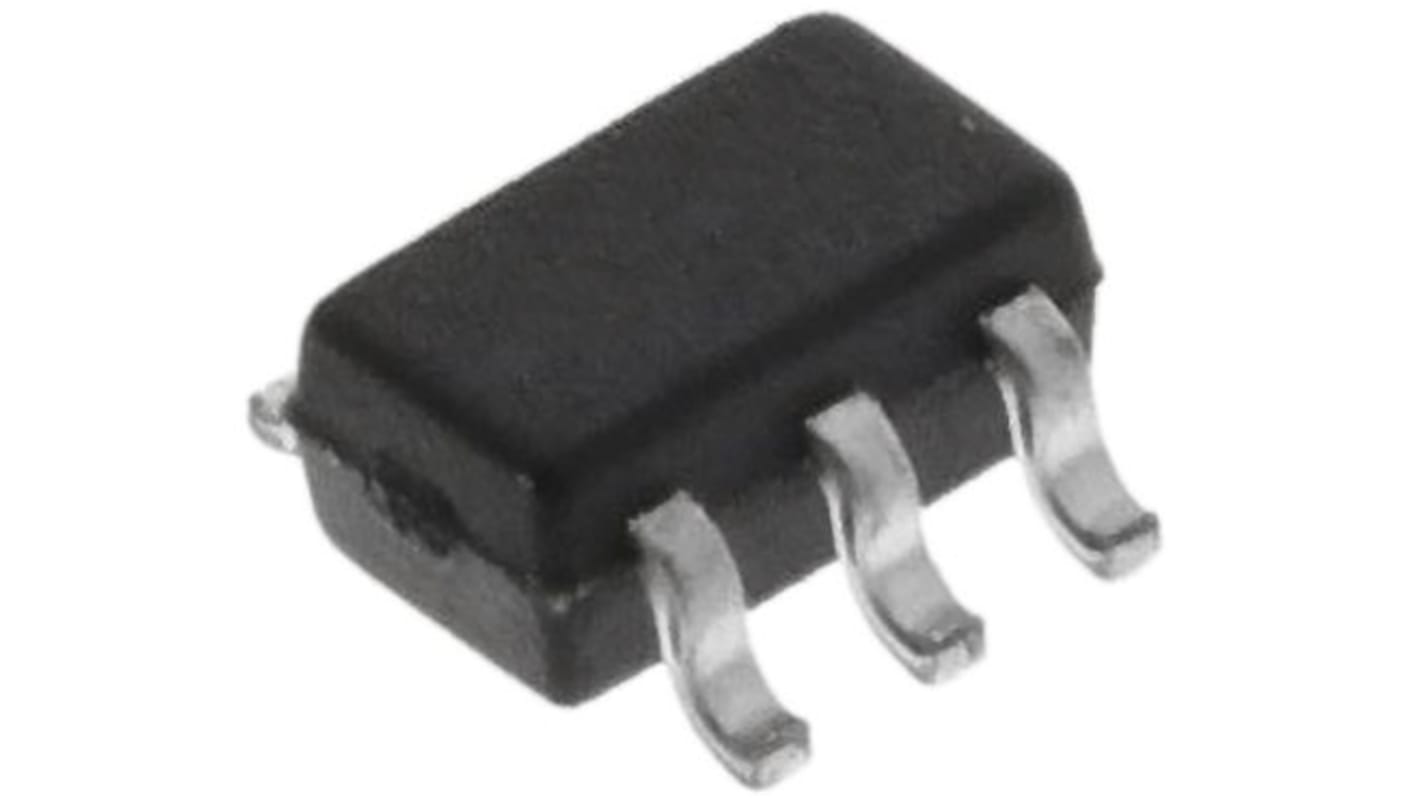

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 25 units)*
MYR13.40
FREE delivery for orders over RM 500.00
In Stock
- 2,225 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 25 - 25 | MYR0.536 | MYR13.40 |
| 50 - 75 | MYR0.518 | MYR12.95 |
| 100 - 225 | MYR0.502 | MYR12.55 |
| 250 - 975 | MYR0.485 | MYR12.13 |
| 1000 + | MYR0.469 | MYR11.73 |
*price indicative
- RS Stock No.:
- 246-7520
- Mfr. Part No.:
- DMN61D9UDWQ-7
- Manufacturer:
- DiodesZetex
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Drain Source Voltage Vds | 60V | |
| Package Type | SOT-363 | |
| Mount Type | Surface | |
| Pin Count | 6 | |
| Maximum Drain Source Resistance Rds | 3.5Ω | |
| Channel Mode | Enhancement | |
| Maximum Power Dissipation Pd | 0.37W | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Typical Gate Charge Qg @ Vgs | 0.6nC | |
| Forward Voltage Vf | 1.4V | |
| Transistor Configuration | Dual | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | RoHS | |
| Number of Elements per Chip | 2 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Drain Source Voltage Vds 60V | ||
Package Type SOT-363 | ||
Mount Type Surface | ||
Pin Count 6 | ||
Maximum Drain Source Resistance Rds 3.5Ω | ||
Channel Mode Enhancement | ||
Maximum Power Dissipation Pd 0.37W | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Typical Gate Charge Qg @ Vgs 0.6nC | ||
Forward Voltage Vf 1.4V | ||
Transistor Configuration Dual | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals RoHS | ||
Number of Elements per Chip 2 | ||
Automotive Standard No | ||
The DiodesZetex makes a dual N-channel enhancement mode MOSFET, designed to meet the stringent requirements of automotive applications. It is a green device and, totally Lead, halogen and Antimony free. This MOSFET comes in SOT363 packaging. It offers fast switching and high efficiency.
Maximum drain to source voltage is 60 Vand maximum gate to source voltage is ±20 V It offers a ultra-small package size It has low input/output leakage
