DiodesZetex Dual DMN Type N-Channel MOSFET, 261 mA, 60 V Enhancement, 6-Pin SOT-363 DMN62D4LDW-7
- RS Stock No.:
- 222-2844
- Mfr. Part No.:
- DMN62D4LDW-7
- Manufacturer:
- DiodesZetex

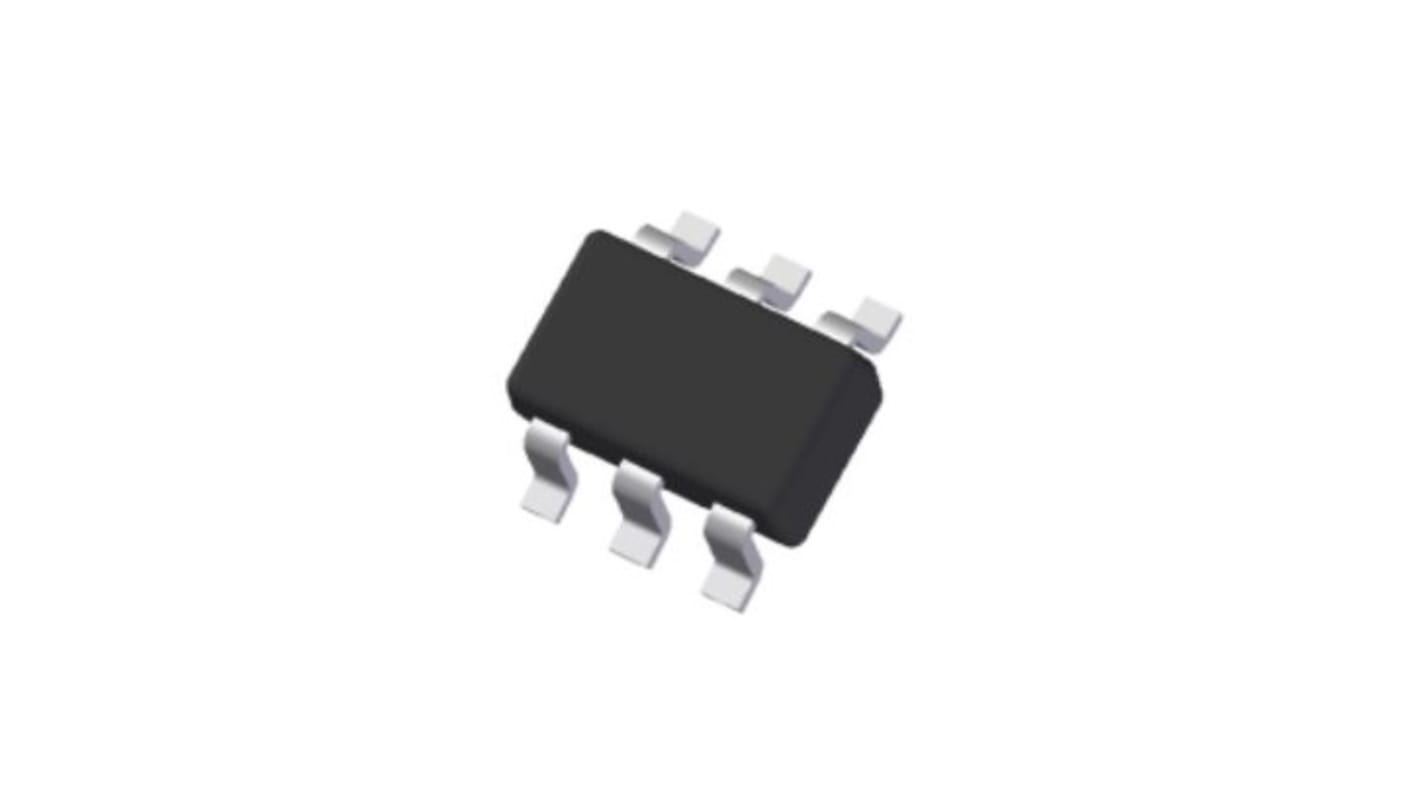

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 50 units)*
MYR54.40
FREE delivery for orders over RM 500.00
In Stock
- 2,850 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 50 - 50 | MYR1.088 | MYR54.40 |
| 100 - 200 | MYR1.007 | MYR50.35 |
| 250 - 450 | MYR0.932 | MYR46.60 |
| 500 - 950 | MYR0.863 | MYR43.15 |
| 1000 + | MYR0.798 | MYR39.90 |
*price indicative
- RS Stock No.:
- 222-2844
- Mfr. Part No.:
- DMN62D4LDW-7
- Manufacturer:
- DiodesZetex
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 261mA | |
| Maximum Drain Source Voltage Vds | 60V | |
| Series | DMN | |
| Package Type | SOT-363 | |
| Mount Type | Surface | |
| Pin Count | 6 | |
| Maximum Drain Source Resistance Rds | 3Ω | |
| Channel Mode | Enhancement | |
| Forward Voltage Vf | 0.8V | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Maximum Power Dissipation Pd | 0.45W | |
| Typical Gate Charge Qg @ Vgs | 0.51nC | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Transistor Configuration | Dual | |
| Standards/Approvals | RoHS | |
| Automotive Standard | AEC-Q200, AEC-Q101, AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 261mA | ||
Maximum Drain Source Voltage Vds 60V | ||
Series DMN | ||
Package Type SOT-363 | ||
Mount Type Surface | ||
Pin Count 6 | ||
Maximum Drain Source Resistance Rds 3Ω | ||
Channel Mode Enhancement | ||
Forward Voltage Vf 0.8V | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Maximum Power Dissipation Pd 0.45W | ||
Typical Gate Charge Qg @ Vgs 0.51nC | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Transistor Configuration Dual | ||
Standards/Approvals RoHS | ||
Automotive Standard AEC-Q200, AEC-Q101, AEC-Q100 | ||
The DiodesZetex Dual n-channel enhancement mode MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Dual N-Channel MOSFET
Low On-Resistance
Low Gate Threshold Voltage
Low Input Capacitance
Fast Switching Speed
