Infineon StrongIRFET N-Channel MOSFET & Diode, 363 A, 60 V Enhancement, 7-Pin TO-263 IRF60SC241ARMA1
- RS Stock No.:
- 220-7471
- Mfr. Part No.:
- IRF60SC241ARMA1
- Manufacturer:
- Infineon

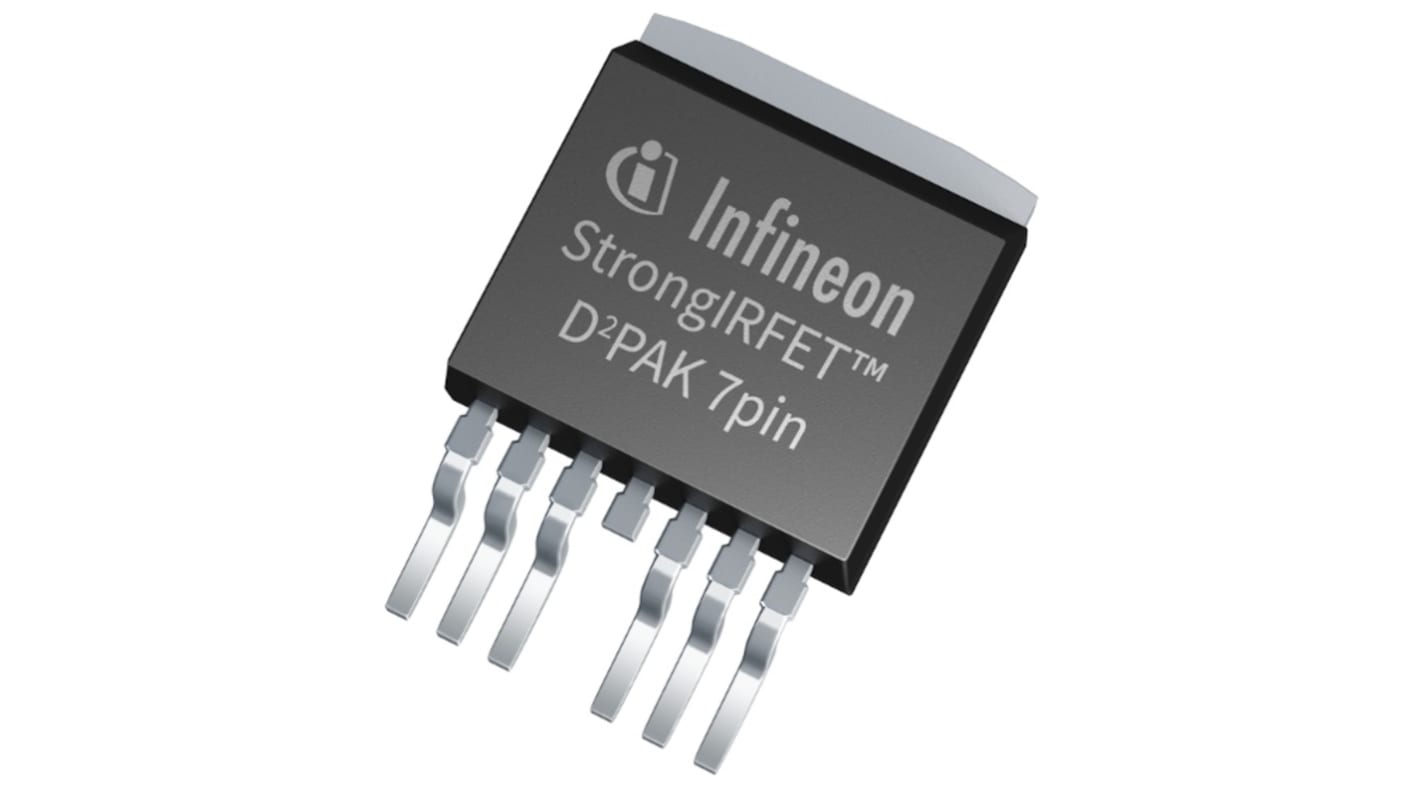

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 reel of 800 units)*
MYR11,035.20
FREE delivery for orders over RM 150.00
In Stock
- 800 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Reel* |
|---|---|---|
| 800 - 800 | MYR13.794 | MYR11,035.20 |
| 1600 - 2400 | MYR13.491 | MYR10,792.80 |
| 3200 + | MYR13.242 | MYR10,593.60 |
*price indicative
- RS Stock No.:
- 220-7471
- Mfr. Part No.:
- IRF60SC241ARMA1
- Manufacturer:
- Infineon
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | MOSFET & Diode | |
| Channel Type | N | |
| Maximum Continuous Drain Current Id | 363A | |
| Maximum Drain Source Voltage Vds | 60V | |
| Package Type | TO-263 | |
| Series | StrongIRFET | |
| Mount Type | Surface | |
| Pin Count | 7 | |
| Maximum Drain Source Resistance Rds | 0.95mΩ | |
| Channel Mode | Enhancement | |
| Maximum Power Dissipation Pd | 2.4W | |
| Maximum Gate Source Voltage Vgs | 20V | |
| Typical Gate Charge Qg @ Vgs | 311nC | |
| Minimum Operating Temperature | -55°C | |
| Forward Voltage Vf | 1.2V | |
| Maximum Operating Temperature | 175°C | |
| Width | 9.45mm | |
| Standards/Approvals | No | |
| Length | 10.2mm | |
| Height | 4.4mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type MOSFET & Diode | ||
Channel Type N | ||
Maximum Continuous Drain Current Id 363A | ||
Maximum Drain Source Voltage Vds 60V | ||
Package Type TO-263 | ||
Series StrongIRFET | ||
Mount Type Surface | ||
Pin Count 7 | ||
Maximum Drain Source Resistance Rds 0.95mΩ | ||
Channel Mode Enhancement | ||
Maximum Power Dissipation Pd 2.4W | ||
Maximum Gate Source Voltage Vgs 20V | ||
Typical Gate Charge Qg @ Vgs 311nC | ||
Minimum Operating Temperature -55°C | ||
Forward Voltage Vf 1.2V | ||
Maximum Operating Temperature 175°C | ||
Width 9.45mm | ||
Standards/Approvals No | ||
Length 10.2mm | ||
Height 4.4mm | ||
Automotive Standard No | ||
The Infineon latest 60 V Strong IRFET power MOSFET devices are optimized for both high current and low RDS(on) making them the ideal solution for high current battery powered applications.
Low RDS(on)
High current capability
Industry standard package
Flexible pinout
Optimized for 10 V gate drive
Reduction in conduction losses
Increased power density
Drop in replacement to existing devices
Offers design flexibility
Provides immunity to false turn-on in noisy environments
