DiodesZetex DMN Type N-Channel MOSFET, 407 mA, 60 V Enhancement, 3-Pin X1-DFN DMN62D1LFB-7B
- RS Stock No.:
- 182-7128
- Mfr. Part No.:
- DMN62D1LFB-7B
- Manufacturer:
- DiodesZetex

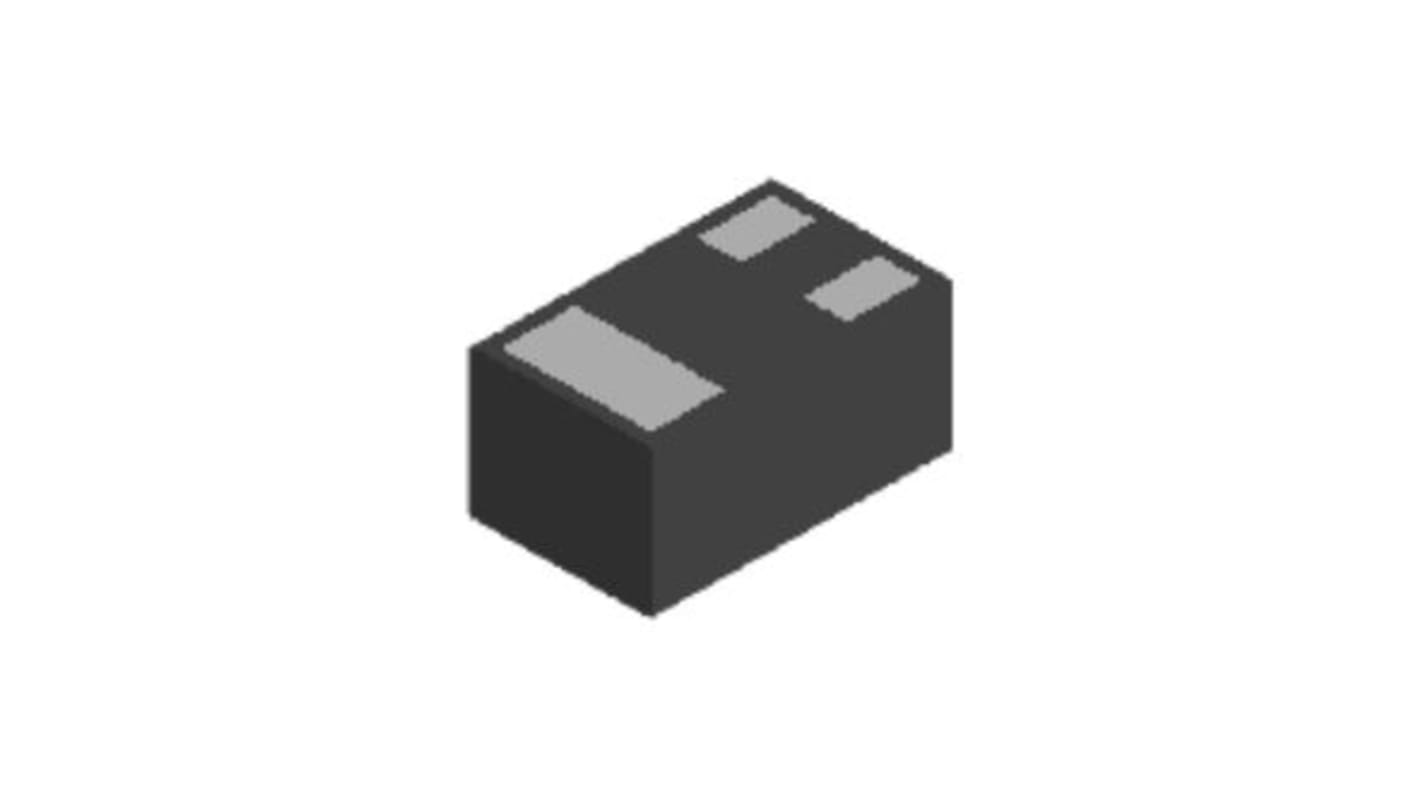

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 100 units)*
MYR50.00
FREE delivery for orders over RM 500.00
In Stock
- 7,900 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 100 - 2400 | MYR0.50 | MYR50.00 |
| 2500 - 4900 | MYR0.489 | MYR48.90 |
| 5000 + | MYR0.474 | MYR47.40 |
*price indicative
- RS Stock No.:
- 182-7128
- Mfr. Part No.:
- DMN62D1LFB-7B
- Manufacturer:
- DiodesZetex
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 407mA | |
| Maximum Drain Source Voltage Vds | 60V | |
| Series | DMN | |
| Package Type | X1-DFN | |
| Mount Type | Surface | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 3mΩ | |
| Channel Mode | Enhancement | |
| Maximum Power Dissipation Pd | 500mW | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Typical Gate Charge Qg @ Vgs | 0.45nC | |
| Forward Voltage Vf | 1.3V | |
| Maximum Operating Temperature | 150°C | |
| Length | 1.07mm | |
| Height | 0.48mm | |
| Width | 0.67 mm | |
| Standards/Approvals | No | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 407mA | ||
Maximum Drain Source Voltage Vds 60V | ||
Series DMN | ||
Package Type X1-DFN | ||
Mount Type Surface | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 3mΩ | ||
Channel Mode Enhancement | ||
Maximum Power Dissipation Pd 500mW | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Typical Gate Charge Qg @ Vgs 0.45nC | ||
Forward Voltage Vf 1.3V | ||
Maximum Operating Temperature 150°C | ||
Length 1.07mm | ||
Height 0.48mm | ||
Width 0.67 mm | ||
Standards/Approvals No | ||
Automotive Standard AEC-Q101 | ||
- COO (Country of Origin):
- CN
This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high-efficiency power management applications.
Low On-Resistance
Low Input Capacitance
Fast Switching Speed
Low Input/Output Leakage
ESD Protected
Totally Lead-Free
Halogen and Antimony Free. “Green” Device
Application
Load Switch
