Marquardt Plunger Micro Switch, Tab Terminal, 16 A, 250 V ac, SPCO, IP40, IP00
- RS Stock No.:
- 741-0974
- Mfr. Part No.:
- 1085.0403
- Manufacturer:
- Marquardt

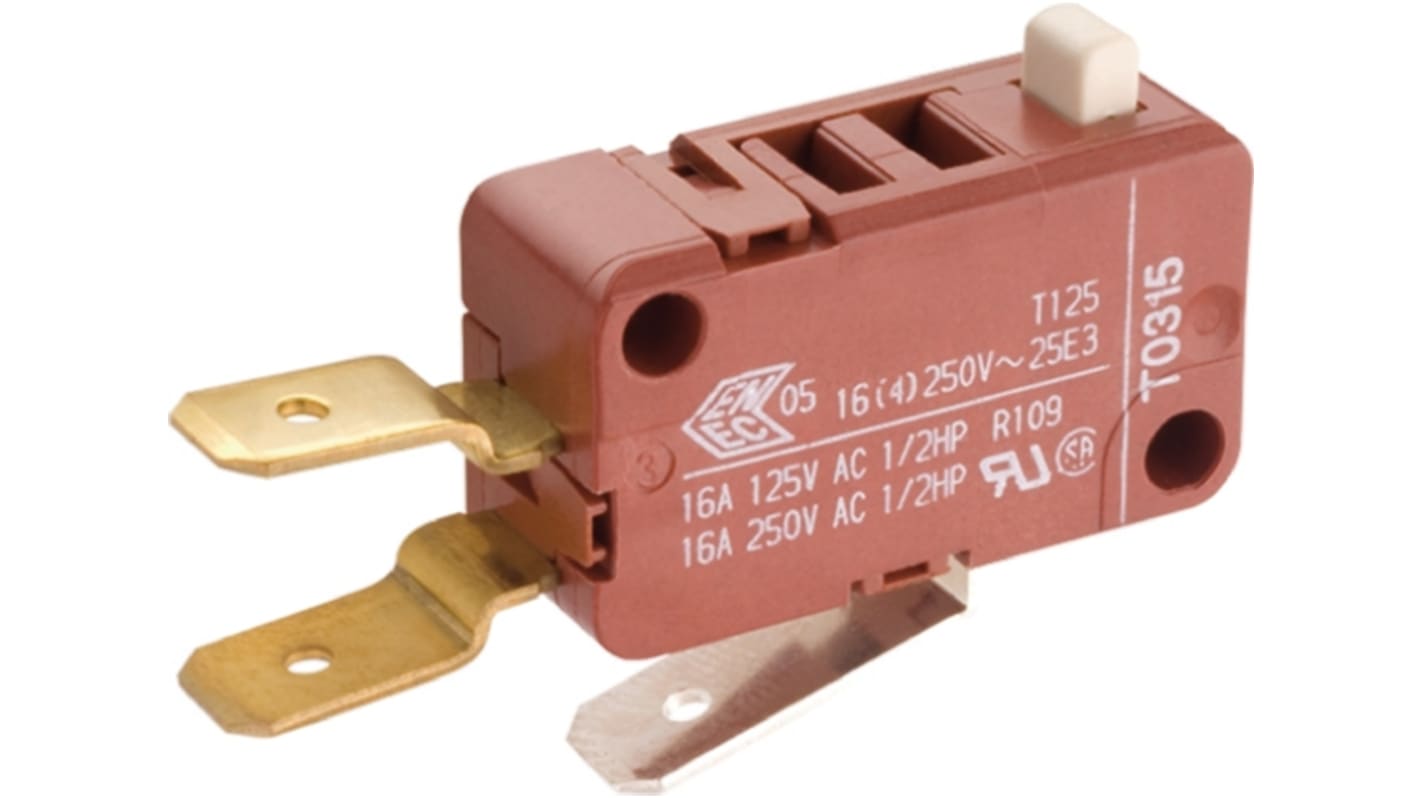

This image is representative of the product range
Bulk discount available
View bulk pricing optionSubtotal (1 unit)*
MYR18.95
FREE delivery for orders over RM 500.00
In Stock
- 40 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 9 | MYR18.95 |
| 10 - 24 | MYR18.38 |
| 25 - 49 | MYR17.84 |
| 50 + | MYR17.30 |
*price indicative
- RS Stock No.:
- 741-0974
- Mfr. Part No.:
- 1085.0403
- Manufacturer:
- Marquardt
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Marquardt | |
| Actuator Type | Plunger | |
| Product Type | Micro Switch | |
| Terminal Type | Tab | |
| Switch Contact Current | 16 A | |
| Housing Material | Fibreglass Reinforced Polyamide | |
| Contact Configuration | SPCO | |
| IP Rating | IP40, IP00 | |
| Operating Force | 4N | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Microswitch Type | Miniature Snap Action | |
| Contact AC Voltage | 250V ac | |
| Hazardous Area Certification | No | |
| Mechanical Life | 2000000Cycles | |
| Series | 1080 | |
| Standards/Approvals | UL, ENEC, CSA | |
| Select all | ||
|---|---|---|
Brand Marquardt | ||
Actuator Type Plunger | ||
Product Type Micro Switch | ||
Terminal Type Tab | ||
Switch Contact Current 16 A | ||
Housing Material Fibreglass Reinforced Polyamide | ||
Contact Configuration SPCO | ||
IP Rating IP40, IP00 | ||
Operating Force 4N | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Microswitch Type Miniature Snap Action | ||
Contact AC Voltage 250V ac | ||
Hazardous Area Certification No | ||
Mechanical Life 2000000Cycles | ||
Series 1080 | ||
Standards/Approvals UL, ENEC, CSA | ||
- COO (Country of Origin):
- TN
Marquardt Miniature Snap Action Switches - 1080 Series
Marquardt 1080 Series snap action single pole switches. The 1080 Series snap action switches are a miniature body switch with high switching capabilities of up to 16A. The Marquardt 1080 Series is designed to DIN41635A and has a contact resistance of <100mΩ with an insulation resistance of >100MΩ.
Contact distance <3mm
Bounce time <10ms
UL 94 V-0 flammability
Note
The current rating and life expectancy figures quoted are nominal, please see datasheet for further ratings.
Approvals
UL; CSA; ENEC
