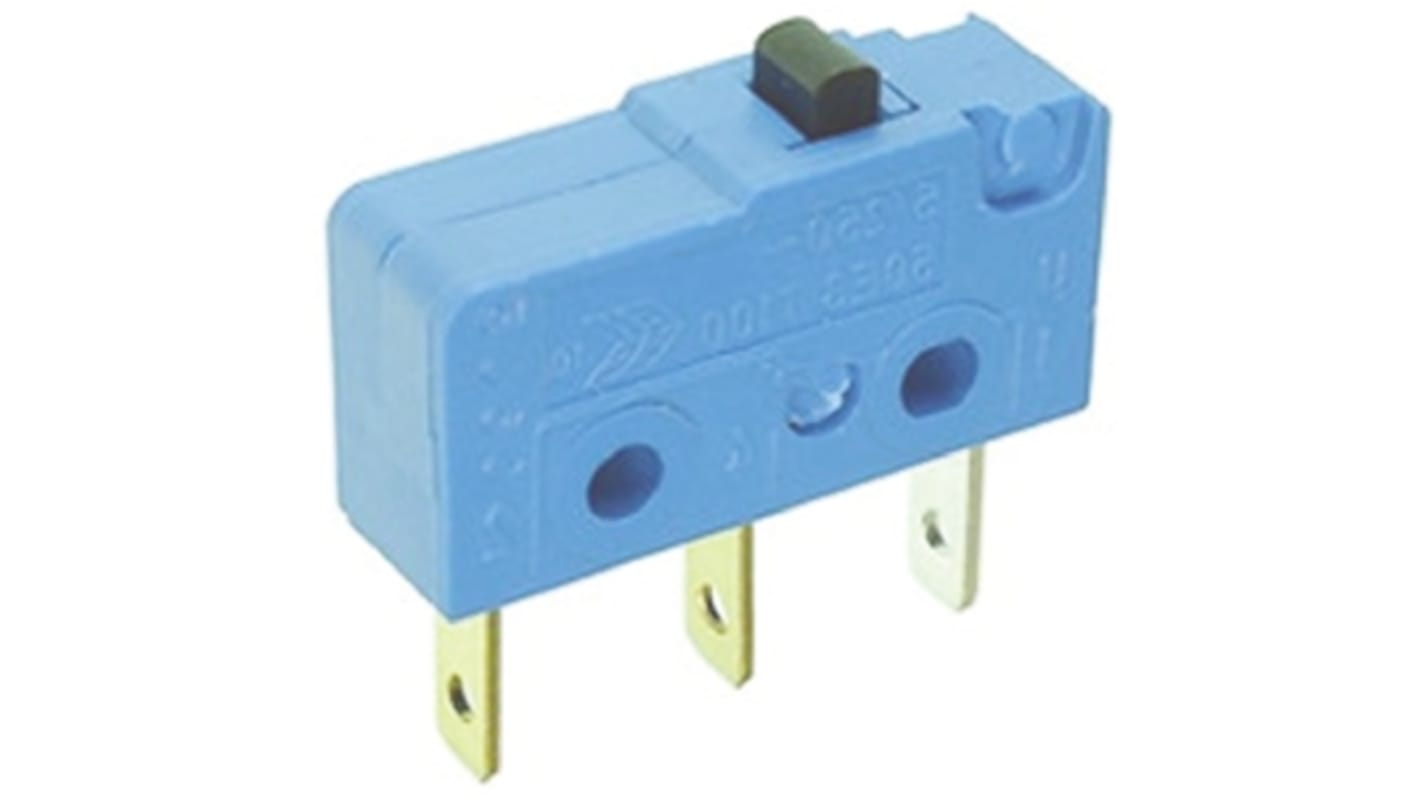

Marquardt Plunger Micro Switch, Tab Terminal, 16 A, 250 V ac, SPCO, IP40, IP0
- RS Stock No.:
- 741-0726
- Distrelec Article No.:
- 135-83-021
- Mfr. Part No.:
- 1050.1102
- Manufacturer:
- Marquardt
Bulk discount available
View bulk pricing optionSubtotal (1 unit)*
MYR15.32
FREE delivery for orders over RM 500.00
Limited stock
- Plus 102 left, shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 49 | MYR15.32 |
| 50 - 149 | MYR14.71 |
| 150 + | MYR14.09 |
*price indicative
- RS Stock No.:
- 741-0726
- Distrelec Article No.:
- 135-83-021
- Mfr. Part No.:
- 1050.1102
- Manufacturer:
- Marquardt
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Marquardt | |
| Product Type | Micro Switch | |
| Actuator Type | Plunger | |
| Terminal Type | Tab | |
| Switch Contact Current | 16 A | |
| Housing Material | Polybutylene Terephthalate | |
| Contact Configuration | SPCO | |
| IP Rating | IP40, IP0 | |
| Operating Force | 1.5N | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 100°C | |
| Contact AC Voltage | 250V ac | |
| Standards/Approvals | RoHS, ENEC, UL, CSA | |
| Hazardous Area Certification | No | |
| Mechanical Life | 10000000Cycles | |
| Series | 1050 | |
| Select all | ||
|---|---|---|
Brand Marquardt | ||
Product Type Micro Switch | ||
Actuator Type Plunger | ||
Terminal Type Tab | ||
Switch Contact Current 16 A | ||
Housing Material Polybutylene Terephthalate | ||
Contact Configuration SPCO | ||
IP Rating IP40, IP0 | ||
Operating Force 1.5N | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 100°C | ||
Contact AC Voltage 250V ac | ||
Standards/Approvals RoHS, ENEC, UL, CSA | ||
Hazardous Area Certification No | ||
Mechanical Life 10000000Cycles | ||
Series 1050 | ||
Marquardt Subminiature Snap Action Switches - 1050 Series
Marquardt 1050 Series snap action single pole switches. The 1050 Series snap action switches are a sub-miniature switch with a body width of 6.4mm, designed to DIN41635B with a contact resistance of <100mΩ and an insulation resistance of >100MΩ. The Marquardt 1050 Series is available with various actuators and terminations.
Contact distance <3mm
Bounce time <5ms
UL 94 V-2 flammability
Note
The current rating and life expectancy figures quoted are nominal, please see datasheet for further ratings.
Approvals
UL; CSA; ENEC
