Omron Short Hinge Lever Micro Switch, Pre-Wired Terminal, 5A, 250 V ac, SPDT, IP67
- RS Stock No.:
- 682-2301
- Distrelec Article No.:
- 301-18-406
- Mfr. Part No.:
- D2VW-5L1A-1M(D)(CHN)
- Manufacturer:
- Omron

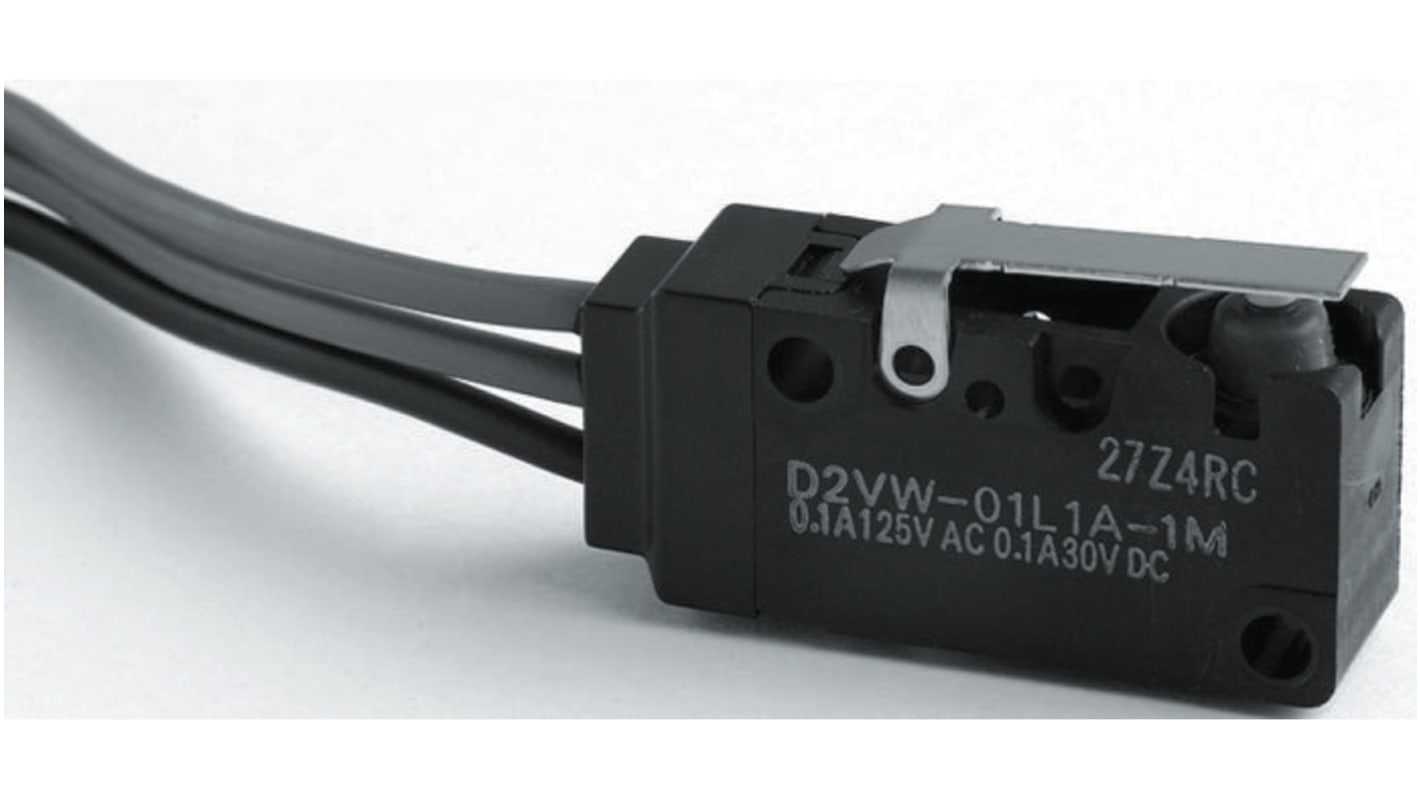

This image is representative of the product range
Bulk discount available
View bulk pricing optionSubtotal (1 unit)*
MYR50.52
FREE delivery for orders over RM 500.00
Temporarily out of stock
- 182 unit(s) shipping from 29 June 2026
- Plus 35 unit(s) shipping from 07 December 2026
- Plus 4,026 unit(s) shipping from 14 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 24 | MYR50.52 |
| 25 - 99 | MYR49.45 |
| 100 - 249 | MYR47.94 |
| 250 + | MYR46.76 |
*price indicative
- RS Stock No.:
- 682-2301
- Distrelec Article No.:
- 301-18-406
- Mfr. Part No.:
- D2VW-5L1A-1M(D)(CHN)
- Manufacturer:
- Omron
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Micro Switch | |
| Actuator Type | Short Hinge Lever | |
| Terminal Type | Pre-Wired | |
| Contact Configuration | SPDT | |
| IP Rating | IP67 | |
| Operating Force | 1.96N | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Contact AC Voltage | 250V ac | |
| Microswitch Type | Sealed Miniature | |
| Standards/Approvals | RoHS | |
| Hazardous Area Certification | No | |
| Mechanical Life | 10000000Operations | |
| Series | D2VW | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Micro Switch | ||
Actuator Type Short Hinge Lever | ||
Terminal Type Pre-Wired | ||
Contact Configuration SPDT | ||
IP Rating IP67 | ||
Operating Force 1.96N | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Contact AC Voltage 250V ac | ||
Microswitch Type Sealed Miniature | ||
Standards/Approvals RoHS | ||
Hazardous Area Certification No | ||
Mechanical Life 10000000Operations | ||
Series D2VW | ||
- COO (Country of Origin):
- CN
Omron Subminiature Sealed (5 A)
Sealed V3 style microswitch conforming to EN61058-1
Sealed to IEC IP50 (solder terminal type)
Sealed to IEC IP67 (wire lead type)
RoHS compliant
Switches up to 5A @ 250Vac
Contact configuration: SPDT
Approvals
UL, CSA, VDE
