MPN

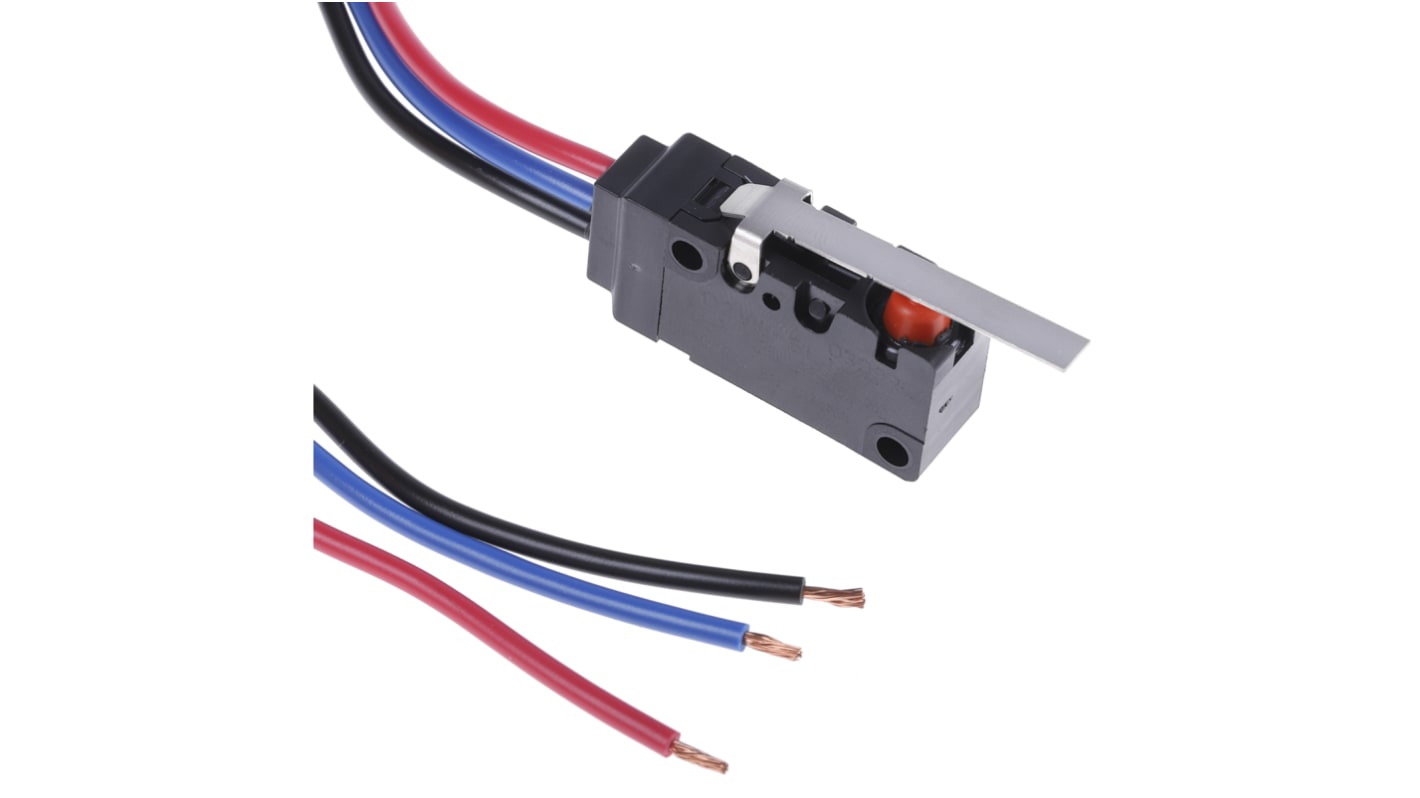

Aratas Hinge Lever Micro Switch, Pre-Wired Terminal, 5A, 250 V ac, 30 V dc, SPDT, IP67

RS Stock No.:: 616-0293
Mfr. Part No.:: D2VW-5L1-1M(D)(CHN)
Manufacturer:: Aratas

Aratas Hinge Lever Micro Switch, Pre-Wired Terminal, 5A, 250 V ac, 30 V dc, SPDT, IP67

Bulk discount available

View bulk pricing options

Subtotal (1 unit)*

MYR94.21

FREE delivery for orders over RM 150.00

Temporarily out of stock

3,400 unit(s) shipping from 30 November 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 - 49	MYR94.21
50 - 149	MYR92.24
150 - 249	MYR89.41
250 - 499	MYR87.24
500 +	MYR85.35

*price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

Aratas Hinge Lever Micro Switch, Solder Terminal, 5A, 250 V ac, 30 V dc, SPDT, IP67

RS Stock No.: 616-0271

Each

MYR27.05

RS Stock No.:: 616-0293
Mfr. Part No.:: D2VW-5L1-1M(D)(CHN)
Manufacturer:: Aratas

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Aratas
	Actuator Type	Hinge Lever
	Product Type	Micro Switch
	Terminal Type	Pre-Wired
	Switch Contact Current	5A
	Contact Configuration	SPDT
	IP Rating	IP67
	Operating Force	1.18N
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Microswitch Type	Sealed Miniature
	Contact AC Voltage	250V ac
	Contact DC Voltage	30V dc
	Series	D2VW
	Hazardous Area Certification	No
	Mechanical Life	10000000Operations
	Standards/Approvals	RoHS

	Select all
	Brand Aratas
	Actuator Type Hinge Lever
	Product Type Micro Switch
	Terminal Type Pre-Wired
	Switch Contact Current 5A
	Contact Configuration SPDT
	IP Rating IP67
	Operating Force 1.18N
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Microswitch Type Sealed Miniature
	Contact AC Voltage 250V ac
	Contact DC Voltage 30V dc
	Series D2VW
	Hazardous Area Certification No
	Mechanical Life 10000000Operations
	Standards/Approvals RoHS

Datasheet

COO (Country of Origin):: CN

Omron Microswitch

The Omron D2VW series sealed miniature microswitch has a hinge lever actuator and a contact rating of 5A at 250VAC. This is a highly reliable SPDT contact configuration microswitch has silver alloy contact material.

Features and Benefits

Operating force is 1.18N

Moulded lead wire termination

Mechanical life of 10000000 operations

Operating temperature is between -40°C and 85°C

Certifications

CSA certified

IP67 rated

UL approved

VDE approved
