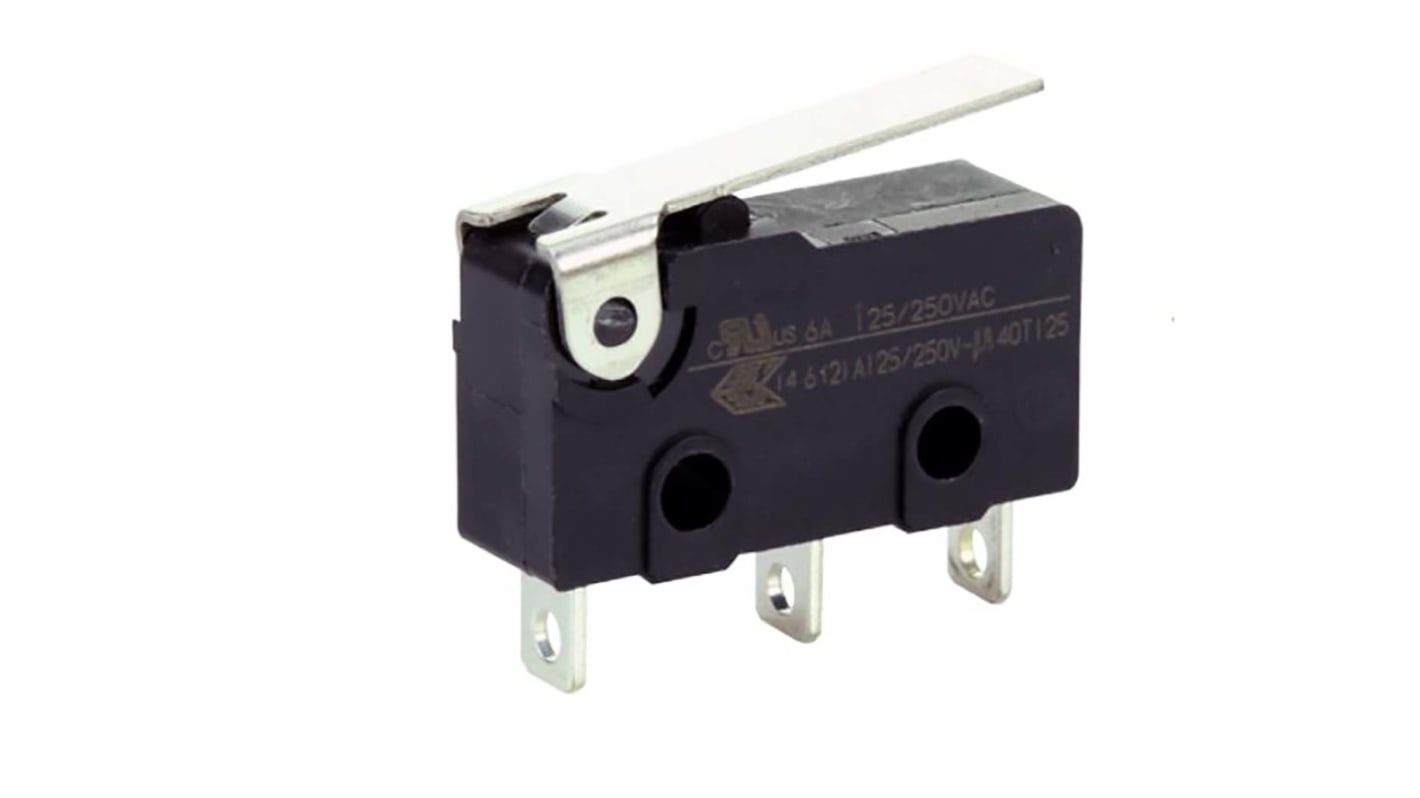

Name: Honeywell Pin Plunger Micro Switch, PCB Terminal Terminal, 6 A, SPCO, IP40
Brand: Honeywell
SKU: 205-6095
Price: 7.54 MYR
Availability: Discontinued

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Honeywell
	Actuator Type	Pin Plunger
	Product Type	Micro Switch
	Terminal Type	PCB Terminal
	Switch Contact Current	6 A
	Contact Configuration	SPCO
	IP Rating	IP40
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	125°C
	Microswitch Type	Subminiature
	Series	ZM1
	Standards/Approvals	UL, RoHS, REACH, ENEC to IEC 61058-1, cUL to UL 61058-1, CQC to GB 15092.1, CQC, CE
	Hazardous Area Certification	No
	Mechanical Life	400Cycles
	Depth	10.2mm
	Length	19.8mm

	Select all
	Brand Honeywell
	Actuator Type Pin Plunger
	Product Type Micro Switch
	Terminal Type PCB Terminal
	Switch Contact Current 6 A
	Contact Configuration SPCO
	IP Rating IP40
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 125°C
	Microswitch Type Subminiature
	Series ZM1
	Standards/Approvals UL, RoHS, REACH, ENEC to IEC 61058-1, cUL to UL 61058-1, CQC to GB 15092.1, CQC, CE
	Hazardous Area Certification No
	Mechanical Life 400Cycles
	Depth 10.2mm
	Length 19.8mm

COO (Country of Origin):: CN

Honeywell ZM1 Series Micro Switch, 6A Switch Contact Current, IP40 - ZM160C20A01

This micro switch is a Compact electromechanical device designed to detect mechanical movement and provide a single-pole changeover signal for control and safety circuits. It is intended for installation on printed circuit boards where a precise pin-plunger actuator translates motion into an electrical response, operating across a wide temperature range for industrial and electronics applications.

Features and Benefits:

• Pin-plunger actuator for accurate, repeatable actuation and control
• PCB Terminal simplifies mounting and reduces assembly time
• Switch contacts rated 6A enabling moderate-current switching tasks
• Operable from -40°C to 125°C for varied thermal environments
• Mechanical endurance specified at 400 cycles for short-cycle testing
• IP40 protection suited to indoor industrial locations

Applications

• Suitable for position sensing in automated assembly equipment
• Ideal for door and cover detection in electrical enclosures
• Used with control panels requiring Compact tactile switching
• Can be used for limit sensing in small electromechanical devices
• Suitable for test rigs where temperature extremes occur

What contact arrangement does it provide and why is that useful?

It offers a single-pole changeover contact configuration, which allows one input to be switched between two outputs for simple control logic or safety interlocks.

Which safety and conformity standards are met for regulatory acceptance?

It conforms to multiple recognised standards including UL and ENEC as referenced to IEC 61058-1, and other regional approvals relevant to professional installations.

How is the actuator type advantageous for PCB-mounted designs?

The pin-plunger format provides a small footprint and a direct linear travel, enabling precise actuation when paired with mechanical linkages or cam surfaces on a PCB assembly.

What environmental constraint should installers consider regarding ingress protection?

With an IP40 rating, it is protected against large solid objects but not against water, installation in sheltered or indoor environments is therefore recommended.
