Druck DPI705EIS G1/8 Manometer With 1 Pressure Port/s, Max Pressure Measurement 1400 bar
- RS Stock No.:
- 261-4451
- Mfr. Part No.:
- DPI705EIS-2-10A-P1-H1-U0-OP0
- Manufacturer:
- Druck
Subtotal (1 unit)*
MYR6,216.85
FREE delivery for orders over RM 150.00
In Stock
- 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR6,216.85 |
*price indicative
- RS Stock No.:
- 261-4451
- Mfr. Part No.:
- DPI705EIS-2-10A-P1-H1-U0-OP0
- Manufacturer:
- Druck
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Druck | |
| Accuracy | +/-0.075% FS | |
| Product Type | Manometer | |
| Number of Pressure Ports | 1 | |
| Maximum Pressure Measurement | 1400bar | |
| Minimum Pressure Measurement | -25mbar | |
| Pressure Port Type | G1/8 | |
| Leak Testing | Yes | |
| Minimum/Maximum Recordings | Yes | |
| Model Number | DPI705EIS | |
| Intrinsically Safe | Yes | |
| Power Source | 4 x AA | |
| IP Rating | IP54 | |
| Battery Type | AA | |
| Maximum Overpressure | 1400bar | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 50°C | |
| Battery Life | 1year | |
| Display Type | LCD Backlight | |
| Width | 95mm | |
| Standards/Approvals | CE, RCM, RoHS, UL 61010-1 | |
| Length | 200mm | |
| Height | 43mm | |
| Hazardous Area Certification | IECEx/ATEX | |
| Weight | 563g | |
| Select all | ||
|---|---|---|
Brand Druck | ||
Accuracy +/-0.075% FS | ||
Product Type Manometer | ||
Number of Pressure Ports 1 | ||
Maximum Pressure Measurement 1400bar | ||
Minimum Pressure Measurement -25mbar | ||
Pressure Port Type G1/8 | ||
Leak Testing Yes | ||
Minimum/Maximum Recordings Yes | ||
Model Number DPI705EIS | ||
Intrinsically Safe Yes | ||
Power Source 4 x AA | ||
IP Rating IP54 | ||
Battery Type AA | ||
Maximum Overpressure 1400bar | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 50°C | ||
Battery Life 1year | ||
Display Type LCD Backlight | ||
Width 95mm | ||
Standards/Approvals CE, RCM, RoHS, UL 61010-1 | ||
Length 200mm | ||
Height 43mm | ||
Hazardous Area Certification IECEx/ATEX | ||
Weight 563g | ||
- COO (Country of Origin):
- GB
Druck Manometer, -25m bar Minimum Pressure Measurement, 1400 bar Maximum Pressure Measurement - DPI705EIS-2-10A-P1-H1-U0-OP0

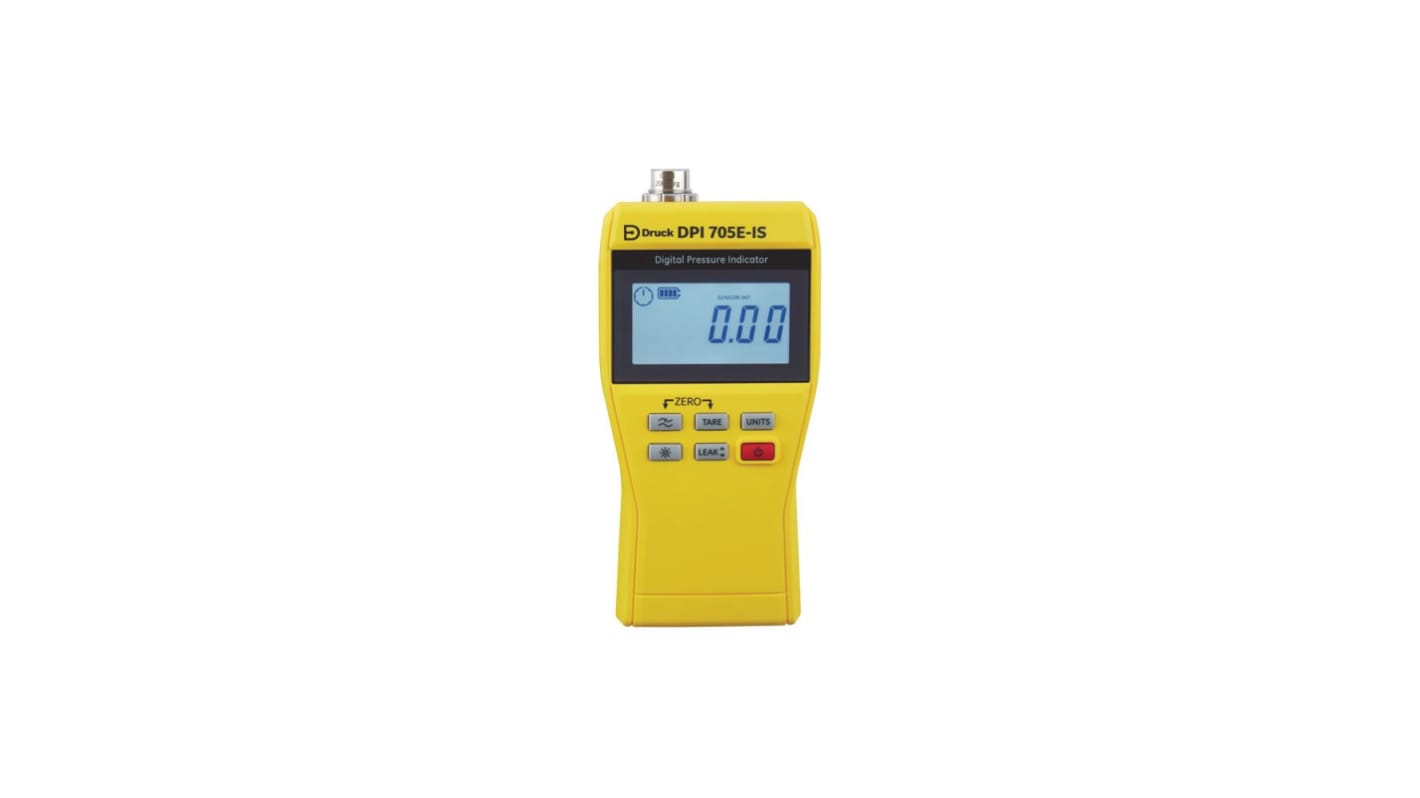

This manometer is a portable pressure tester designed for use in hazardous environments where intrinsically safe instrumentation is required. It measures pressures from -25 mbar up to 1400 bar and is suitable for field leak testing and high-pressure verification. The instrument is battery-operated and provides a backlit LCD for readable data in varied lighting conditions while maintaining ingress protection for on-site use.
Features and Benefits:
• ±0.075% FS accuracy delivers precise pressure readings for diagnostics
• IECEx/ATEX intrinsic safety allows operation in classified areas
• IP54 LCD backlight ensures visibility in low-light and dusty conditions
• G1/8 pressure port enables compatibility with common industrial fittings
• 4 x AA battery power provides extended field service without mains
• IECEx/ATEX intrinsic safety allows operation in classified areas
• IP54 LCD backlight ensures visibility in low-light and dusty conditions
• G1/8 pressure port enables compatibility with common industrial fittings
• 4 x AA battery power provides extended field service without mains
Applications
• Suitable for leak testing on pressurised systems and pipelines
• Ideal for commissioning of high-pressure hydraulic equipment
• Used with gas systems in hazardous-area maintenance activities
• Can be used for portable verification of pressure instruments
• Used for site troubleshooting where intrinsic safety is mandatory
• Ideal for commissioning of high-pressure hydraulic equipment
• Used with gas systems in hazardous-area maintenance activities
• Can be used for portable verification of pressure instruments
• Used for site troubleshooting where intrinsic safety is mandatory
What is the device’s overpressure tolerance?
It withstands up to 1400 bar maximum overpressure.
Which ambient temperatures are acceptable for operation?
It operates between -10°C and 50°C.
How is the instrument powered for extended deployments?
It runs on four AA batteries with an expected battery life of one year.
Is the unit suitable for formal safety standards in electrical testing environments?
It meets standards including CE, RCM, RoHS and UL 61010-1.
How many pressure connections does the instrument provide?
It has a single pressure port configured as G1/8.
