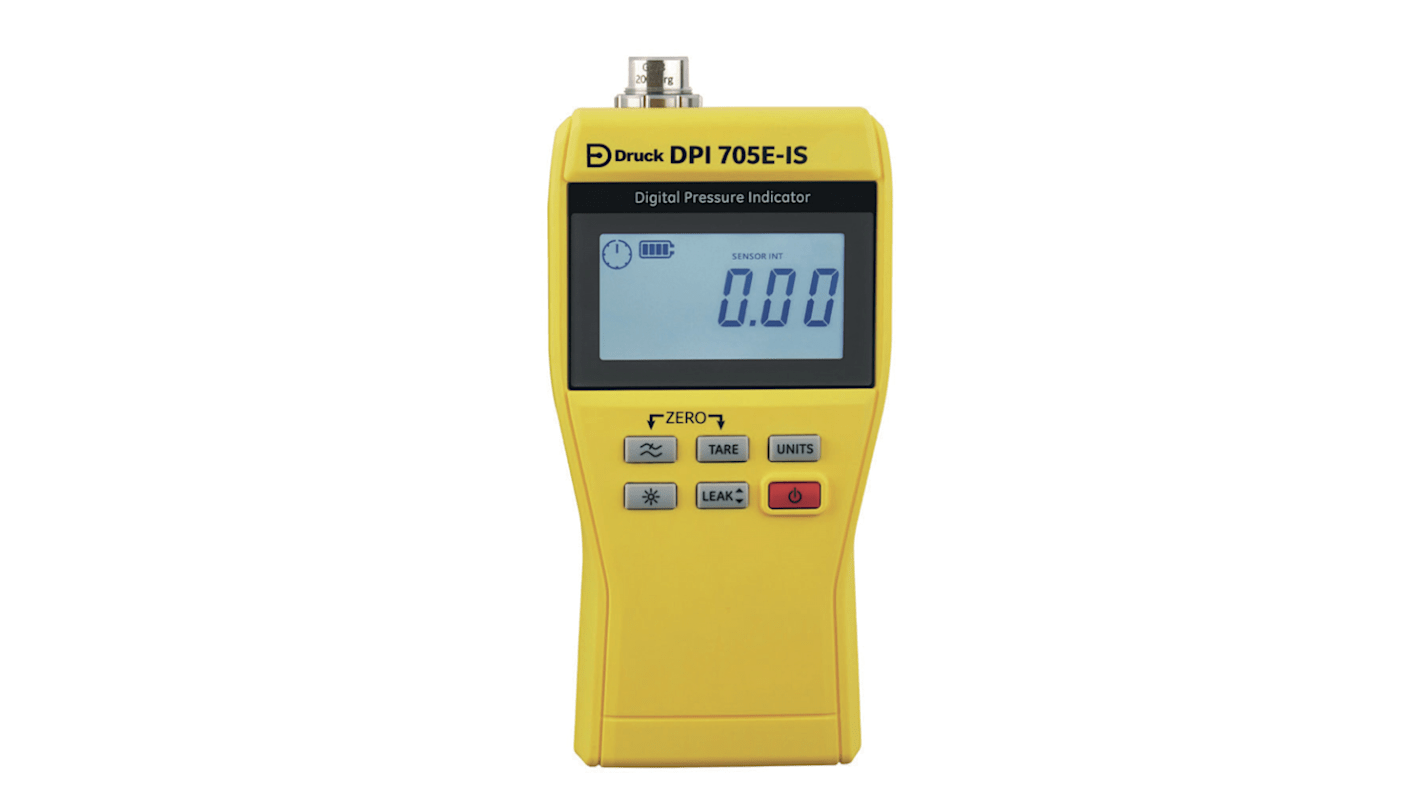

Druck DPI705EIS G1/8 Manometer With 1 Pressure Port/s, Max Pressure Measurement 70 bar
- RS Stock No.:
- 201-2877
- Mfr. Part No.:
- DPI705EIS-1-16G-P1-H1-U0-OP0
- Manufacturer:
- Druck
Subtotal (1 unit)*
MYR5,863.70
FREE delivery for orders over RM 150.00
In Stock
- 8 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR5,863.70 |
*price indicative
- RS Stock No.:
- 201-2877
- Mfr. Part No.:
- DPI705EIS-1-16G-P1-H1-U0-OP0
- Manufacturer:
- Druck
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Druck | |
| Product Type | Manometer | |
| Accuracy | ±0.1 % | |
| Number of Pressure Ports | 1 | |
| Maximum Pressure Measurement | 70bar | |
| Minimum Pressure Measurement | -25mbar | |
| Pressure Port Type | G1/8 | |
| Leak Testing | Yes | |
| Minimum/Maximum Recordings | Yes | |
| Model Number | DPI705EIS | |
| Intrinsically Safe | Yes | |
| Power Source | 4 x AA | |
| IP Rating | IP54 | |
| Minimum Operating Temperature | -10°C | |
| Maximum Overpressure | 1400bar | |
| Battery Type | AA | |
| Display Type | LCD Backlight | |
| Maximum Operating Temperature | 50°C | |
| Battery Life | 1year | |
| Height | 43mm | |
| Length | 200mm | |
| Width | 95mm | |
| Standards/Approvals | CE, RCM, RoHS, UL 61010-1 | |
| Weight | 563g | |
| Hazardous Area Certification | ATEX | |
| Select all | ||
|---|---|---|
Brand Druck | ||
Product Type Manometer | ||
Accuracy ±0.1 % | ||
Number of Pressure Ports 1 | ||
Maximum Pressure Measurement 70bar | ||
Minimum Pressure Measurement -25mbar | ||
Pressure Port Type G1/8 | ||
Leak Testing Yes | ||
Minimum/Maximum Recordings Yes | ||
Model Number DPI705EIS | ||
Intrinsically Safe Yes | ||
Power Source 4 x AA | ||
IP Rating IP54 | ||
Minimum Operating Temperature -10°C | ||
Maximum Overpressure 1400bar | ||
Battery Type AA | ||
Display Type LCD Backlight | ||
Maximum Operating Temperature 50°C | ||
Battery Life 1year | ||
Height 43mm | ||
Length 200mm | ||
Width 95mm | ||
Standards/Approvals CE, RCM, RoHS, UL 61010-1 | ||
Weight 563g | ||
Hazardous Area Certification ATEX | ||
- COO (Country of Origin):
- GB
Druck Manometer, -25m bar Minimum Pressure, 70 bar Maximum Pressure - DPI705EIS-1-16G-P1-H1-U0-OP0
This manometer is a portable pressure measurement instrument designed for use in potentially hazardous environments. It operates from -10°C to 50°C and displays readings on an illuminated LCD for improved visibility. The instrument accepts a single G1/8 pressure connection and is powered by four AA batteries, providing approximately one year of service life under typical use. Built to withstand ingress of dust and water splashes, it supports leak-testing tasks and carries recognised safety approvals for demanding applications.
Features and Benefits:
• ±0.1% accuracy for precise pressure readings
• -25mbar to 70bar measurement range for broad monitoring
• 1400bar maximum overpressure protects against spikes
• IP54 enclosure rating enables use in dusty or wet areas
• ATEX intrinsic safety permits operation in hazardous zones
• -25mbar to 70bar measurement range for broad monitoring
• 1400bar maximum overpressure protects against spikes
• IP54 enclosure rating enables use in dusty or wet areas
• ATEX intrinsic safety permits operation in hazardous zones
Applications
• Suitable for leak testing in industrial systems
• Used for pressure checks in hazardous-area installations
• Ideal for portable field calibration of pressure equipment
• Can be used for routine inspection of pressurised plant
• Used with compressors and hydraulic test rigs
• Used for pressure checks in hazardous-area installations
• Ideal for portable field calibration of pressure equipment
• Can be used for routine inspection of pressurised plant
• Used with compressors and hydraulic test rigs
What power source does the instrument use?
It runs on 4 x AA batteries and offers an expected battery life of 1 year under typical conditions.
Which connection type is provided for pressure input?
A single G1/8 pressure port is fitted for direct connection to test points.
How does the unit handle accidental overpressure?
The design tolerates up to 1400bar overpressure to prevent damage from pressure transients.
Is the display suitable for low-light environments?
The LCD includes a backlight to maintain readability in reduced lighting conditions.
Note
Why choose Druck?
What began in 1972 as a small business in Leicester, UK, Druck has grown into a global pressure-measurement business recognised as a world leader, delivering high quality piezo-resistive pressure sensors and test and calibration instruments to a wide range of applications for customers across the globe.
Druck is one of the only organisations to control the whole manufacturing process from silicon to final product. All products are high-quality, developed from the in-house (UK), raw processing of silicon to delivering the final product.
With Druck, you can be sure of quality, accuracy and reliability. We are Druck. We deliver peace of mind.
What began in 1972 as a small business in Leicester, UK, Druck has grown into a global pressure-measurement business recognised as a world leader, delivering high quality piezo-resistive pressure sensors and test and calibration instruments to a wide range of applications for customers across the globe.
Druck is one of the only organisations to control the whole manufacturing process from silicon to final product. All products are high-quality, developed from the in-house (UK), raw processing of silicon to delivering the final product.
With Druck, you can be sure of quality, accuracy and reliability. We are Druck. We deliver peace of mind.
