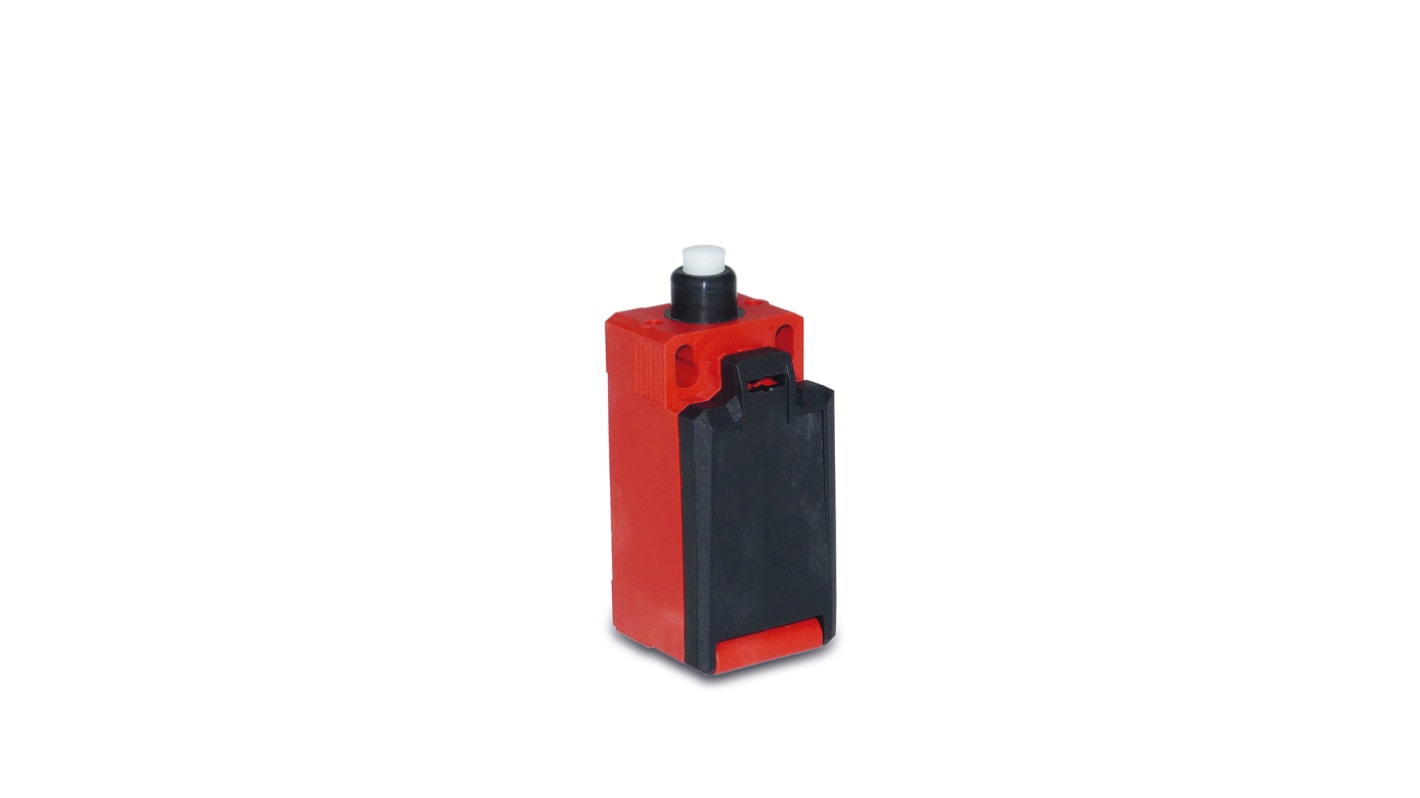

Bernstein AG IN62 Series Plunger Limit Switch, 2 NO, IP67, Fibreglass Reinforced Thermoplastic Housing, 240V ac, 5A
- RS Stock No.:
- 189-5277
- Mfr. Part No.:
- 6083000205
- Manufacturer:
- Bernstein AG
Subtotal (1 unit)*
MYR119.94
FREE delivery for orders over RM 150.00
In Stock
- 22 unit(s) ready to ship from another location
- Plus 22 unit(s) shipping from 19 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR119.94 |
*price indicative
- RS Stock No.:
- 189-5277
- Mfr. Part No.:
- 6083000205
- Manufacturer:
- Bernstein AG
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bernstein AG | |
| Actuator Type | Plunger | |
| Product Type | Limit Switch | |
| IP Rating | IP67 | |
| Contact Configuration | 2 NO | |
| Housing Material | Fibreglass Reinforced Thermoplastic | |
| Contact Type | Slow Action | |
| Terminal Type | Screw | |
| Switching Current | 5A | |
| Series | IN62 | |
| Switching DC Voltage | 24V dc | |
| Minimum Operating Temperature | -30°C | |
| Switching AC Voltage | 240V ac | |
| Maximum Operating Temperature | 75°C | |
| Width | 74mm | |
| Standards/Approvals | RoHS | |
| Length | 31mm | |
| Depth | 30.3mm | |
| Hazardous Area Certification | No | |
| Operating Force | 10N | |
| Mechanical Life | 10000000Cycles | |
| Conduit Entry | M20 | |
| Mounting Orientation | Screw | |
| Select all | ||
|---|---|---|
Brand Bernstein AG | ||
Actuator Type Plunger | ||
Product Type Limit Switch | ||
IP Rating IP67 | ||
Contact Configuration 2 NO | ||
Housing Material Fibreglass Reinforced Thermoplastic | ||
Contact Type Slow Action | ||
Terminal Type Screw | ||
Switching Current 5A | ||
Series IN62 | ||
Switching DC Voltage 24V dc | ||
Minimum Operating Temperature -30°C | ||
Switching AC Voltage 240V ac | ||
Maximum Operating Temperature 75°C | ||
Width 74mm | ||
Standards/Approvals RoHS | ||
Length 31mm | ||
Depth 30.3mm | ||
Hazardous Area Certification No | ||
Operating Force 10N | ||
Mechanical Life 10000000Cycles | ||
Conduit Entry M20 | ||
Mounting Orientation Screw | ||
- COO (Country of Origin):
- DE
The IN62 switches can be used on safety facilities and for position monitoring in virtually any industrial application. Only available with plunger actuator.
Standard switches
High reliability at low currents (1 mA)
Hinged snap-on cover
Slow-action and snap-action contacts
Mechanical service life: up to 30 million switching cycles
