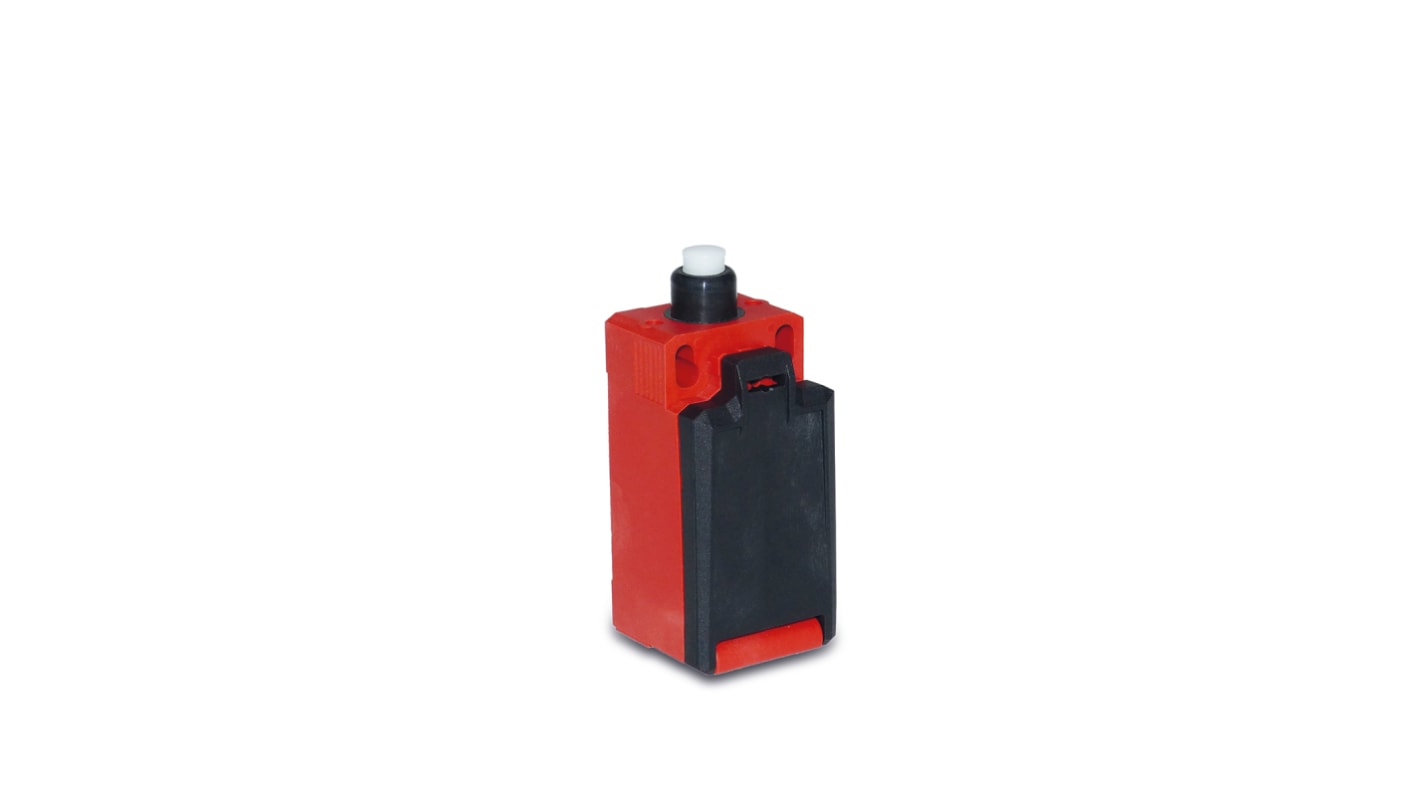

Bernstein AG IN62 Series Plunger Limit Switch, 2 NC, IP67, Fibreglass Reinforced Thermoplastic Housing, 240V ac, 5A
- RS Stock No.:
- 189-5276
- Mfr. Part No.:
- 6083000203
- Manufacturer:
- Bernstein AG
Subtotal (1 unit)*
MYR119.94
FREE delivery for orders over RM 150.00
In Stock
- 14 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR119.94 |
*price indicative
- RS Stock No.:
- 189-5276
- Mfr. Part No.:
- 6083000203
- Manufacturer:
- Bernstein AG
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bernstein AG | |
| Product Type | Limit Switch | |
| Actuator Type | Plunger | |
| IP Rating | IP67 | |
| Contact Configuration | 2 NC | |
| Housing Material | Fibreglass Reinforced Thermoplastic | |
| Contact Type | Slow Action | |
| Terminal Type | Screw | |
| Switching Current | 5A | |
| Series | IN62 | |
| Switching DC Voltage | 24V dc | |
| Minimum Operating Temperature | -30°C | |
| Switching AC Voltage | 240V ac | |
| Maximum Operating Temperature | 75°C | |
| Width | 74mm | |
| Standards/Approvals | RoHS | |
| Depth | 30.3mm | |
| Length | 31mm | |
| Hazardous Area Certification | No | |
| Mounting Orientation | Screw | |
| Operating Force | 10N | |
| Conduit Entry | M20 | |
| Mechanical Life | 10000000Cycles | |
| Select all | ||
|---|---|---|
Brand Bernstein AG | ||
Product Type Limit Switch | ||
Actuator Type Plunger | ||
IP Rating IP67 | ||
Contact Configuration 2 NC | ||
Housing Material Fibreglass Reinforced Thermoplastic | ||
Contact Type Slow Action | ||
Terminal Type Screw | ||
Switching Current 5A | ||
Series IN62 | ||
Switching DC Voltage 24V dc | ||
Minimum Operating Temperature -30°C | ||
Switching AC Voltage 240V ac | ||
Maximum Operating Temperature 75°C | ||
Width 74mm | ||
Standards/Approvals RoHS | ||
Depth 30.3mm | ||
Length 31mm | ||
Hazardous Area Certification No | ||
Mounting Orientation Screw | ||
Operating Force 10N | ||
Conduit Entry M20 | ||
Mechanical Life 10000000Cycles | ||
The IN62 switches can be used on safety facilities and for position monitoring in virtually any industrial application. Only available with plunger actuator.
Standard switches
High reliability at low currents (1 mA)
Hinged snap-on cover
Slow-action and snap-action contacts
Mechanical service life: up to 30 million switching cycles
