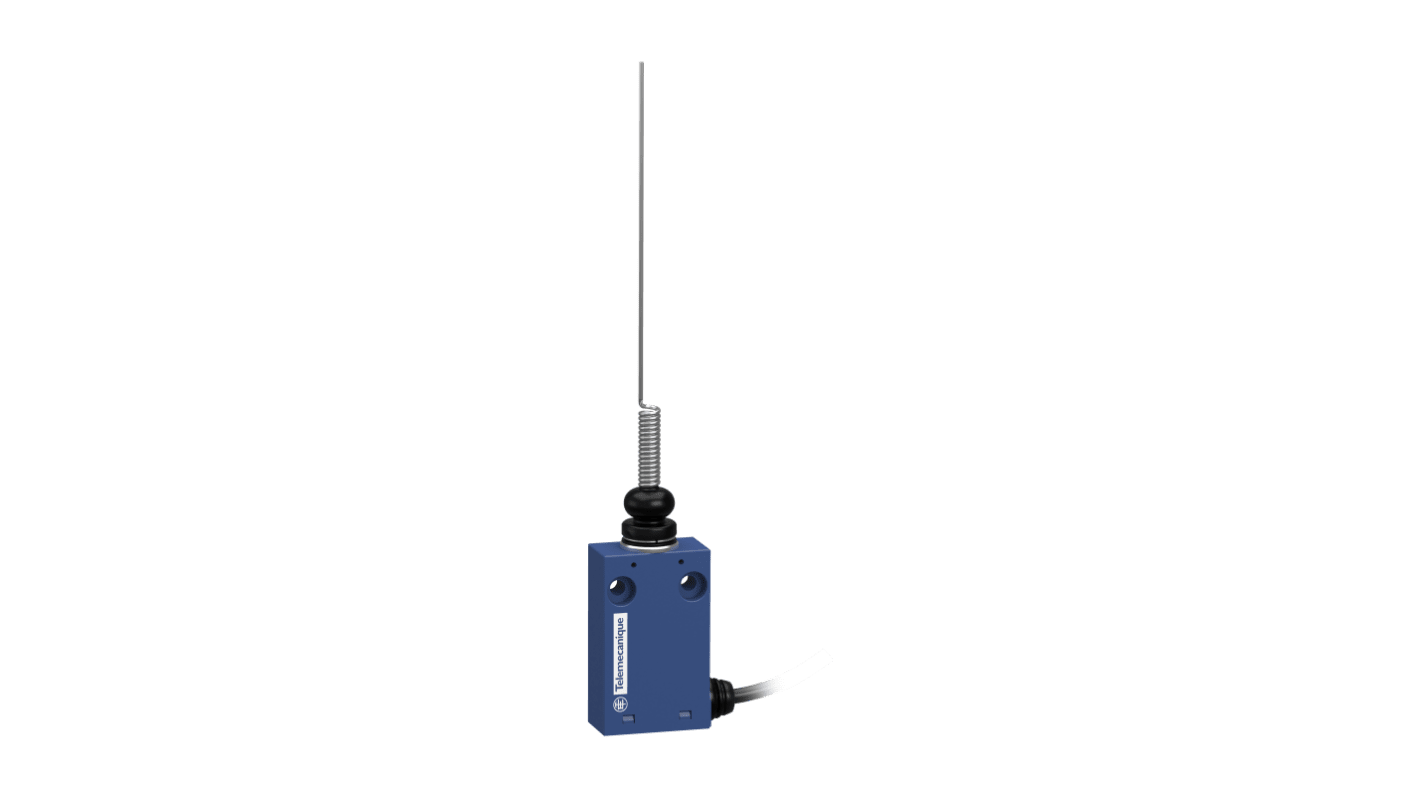

Telemecanique Sensors XCMH Series Cats Whisker Limit Switch, 1 NO/1 NC, IP66, IP67, Plastic Housing, 240V ac, 0.75A

RS Stock No.:: 194-097
Mfr. Part No.:: XCMH2106L2
Manufacturer:: Telemecanique Sensors

Telemecanique Sensors XCMH Series Cats Whisker Limit Switch, 1 NO/1 NC, IP66, IP67, Plastic Housing, 240V ac, 0.75A

Subtotal (1 unit)*

MYR245.77

FREE delivery for orders over RM 150.00

In Stock

4 unit(s) ready to ship from another location
Plus 5 unit(s) shipping from 25 September 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR245.77

*price indicative

RS Stock No.:: 194-097
Mfr. Part No.:: XCMH2106L2
Manufacturer:: Telemecanique Sensors

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Telemecanique Sensors
	Product Type	Limit Switch
	Actuator Type	Cats Whisker
	Contact Configuration	1 NO/1 NC
	IP Rating	IP66, IP67
	Housing Material	Plastic
	Contact Type	Snap Action
	Switching Current	0.75A
	Series	XCMH
	Minimum Operating Temperature	-25°C
	Switching AC Voltage	240V ac
	Switching DC Voltage	300V dc
	Maximum Operating Temperature	70°C
	Standards/Approvals	IEC 60204-1 CSA C22.2 No 14 UL 508 IEC 60947-5-1
	Width	30mm
	Length	16mm
	Depth	16mm
	Hazardous Area Certification	No
	Mounting Orientation	Multi Directional
	Mechanical Life	5000000Cycles
	Conduit Entry	M20
	Operating Force	0.1N

	Select all
	Brand Telemecanique Sensors
	Product Type Limit Switch
	Actuator Type Cats Whisker
	Contact Configuration 1 NO/1 NC
	IP Rating IP66, IP67
	Housing Material Plastic
	Contact Type Snap Action
	Switching Current 0.75A
	Series XCMH
	Minimum Operating Temperature -25°C
	Switching AC Voltage 240V ac
	Switching DC Voltage 300V dc
	Maximum Operating Temperature 70°C
	Standards/Approvals IEC 60204-1 CSA C22.2 No 14 UL 508 IEC 60947-5-1
	Width 30mm
	Length 16mm
	Depth 16mm
	Hazardous Area Certification No
	Mounting Orientation Multi Directional
	Mechanical Life 5000000Cycles
	Conduit Entry M20
	Operating Force 0.1N

Datasheet - XCMH2106L2

COO (Country of Origin):: ID

Telemecanique Sensors XCMH Series Limit Switch, IP66/IP67 Ingress Protection, 0.1N Operating Force - XCMH2106L2

This limit switch is a compact industrial position sensor used to detect mechanical movement and provide snap-action electrical output for control circuits. It is supplied with a low-force cat’s whisker actuator and is suited to demanding environments where ingress protection and straightforward mounting flexibility are required. The device is intended for use in automation and safety interlock arrangements where a discrete change of state is needed.

Features and Benefits:

• 0.1 N operating force enables sensitive actuation and reduced wear
• 1NO1NC contact arrangement supports versatile control logic
• Snap-action contacts deliver fast, clean switching transitions
• Rated for 300V DC and 240V AC to handle varied supply types
• IP66, IP67 ingress protection allows high-level moisture resistance
• Mechanical life of 5,000,000 cycles provides extended operational durability

Applications

• Used for end-of-travel detection on industrial conveyors
• Suitable for machine safety interlocks in wet environments
• Ideal for position sensing on packaging equipment
• Can be used for assembly-line sequencing and control
• Used with control panels requiring M20 conduit entries

What temperatures can it operate within?

It operates between -25 °C and 70 °C, covering most indoor and suitably protected outdoor industrial settings.

How is the switch connected to conduit systems?

The enclosure includes an M20 conduit entry to accept standard cable glands and conduit fittings for secure wiring.

What materials and mounting flexibility does it offer?

The enclosure is made from plastic and supports multi-directional mounting to suit tight installations.

What are the electrical current limits for switching?

It is rated to switch up to 0.75 A, suitable for control circuits and low-power loads.
