Vega VEGAWELL S 51 Series Sensor Submersible Pressure Transmitter, 20 mA, 36 V dc, 15 bar
- RS Stock No.:
- 768-1993
- Mfr. Part No.:
- WELLS51.EE
- Manufacturer:
- Vega

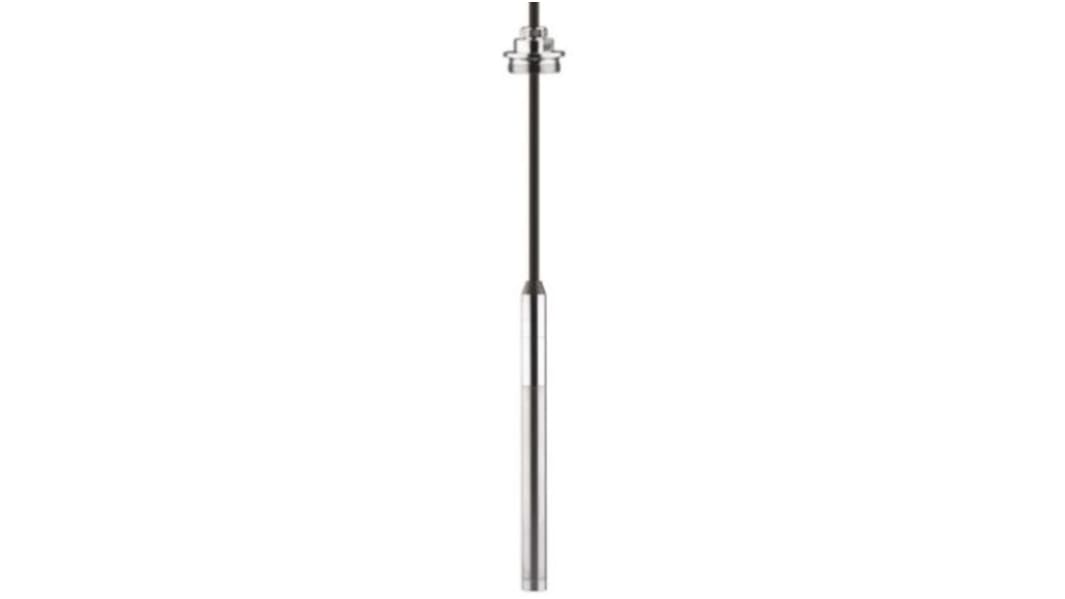

This image is representative of the product range
Subtotal (1 unit)*
MYR3,900.17
FREE delivery for orders over RM 150.00
Stocked by manufacturer
- Ready to ship from 18 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR3,900.17 |
*price indicative
- RS Stock No.:
- 768-1993
- Mfr. Part No.:
- WELLS51.EE
- Manufacturer:
- Vega
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vega | |
| Product Type | Submersible Pressure Transmitter | |
| Device Type | Sensor | |
| Mount Type | Surface | |
| Housing Material | Stainless Steel | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Maximum DC Voltage | 36V dc | |
| Maximum Current | 20mA | |
| Maximum Pressure | 15bar | |
| Gasket Material | Fluorelastomer | |
| Standards/Approvals | CE | |
| Hazardous Area Certification | No | |
| Series | VEGAWELL S 51 | |
| Select all | ||
|---|---|---|
Brand Vega | ||
Product Type Submersible Pressure Transmitter | ||
Device Type Sensor | ||
Mount Type Surface | ||
Housing Material Stainless Steel | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Maximum DC Voltage 36V dc | ||
Maximum Current 20mA | ||
Maximum Pressure 15bar | ||
Gasket Material Fluorelastomer | ||
Standards/Approvals CE | ||
Hazardous Area Certification No | ||
Series VEGAWELL S 51 | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
VEGAWELL S 51 Submersible Pressure Sensor
The VEGAWELL S 51 submersible pressure sensor is a suspended pressure transmitter that provides continuous liquid level measurement. The submersible pressure transmitter has a ceramic measuring cell. (CERTEC®) The submersible pressure sensor is deigned to measure liquid within tanks, boreholes, open vented vessels and sumps. The cell of the suspended pressure sensor is durable and resistant to pressure shocks.
CERTEC® measuring cell highly accurate, yet resistant to shock and abrasion
Slender 22mm design
Standard 4...20 mA signal; 0 - 2,5 bars 7681980 0- 0,4 bar 7681984 0-1 bar
Note
768-1993 - Suspension Cable Length - 27m
