MEAN WELL LED Driver, 34V, 57 V Output, 59.85 W Output, 1050mA
- RS Stock No.:
- 777-2746
- Distrelec Article No.:
- 110-86-373
- Mfr. Part No.:
- PCD-60-1050B
- Manufacturer:
- MEAN WELL

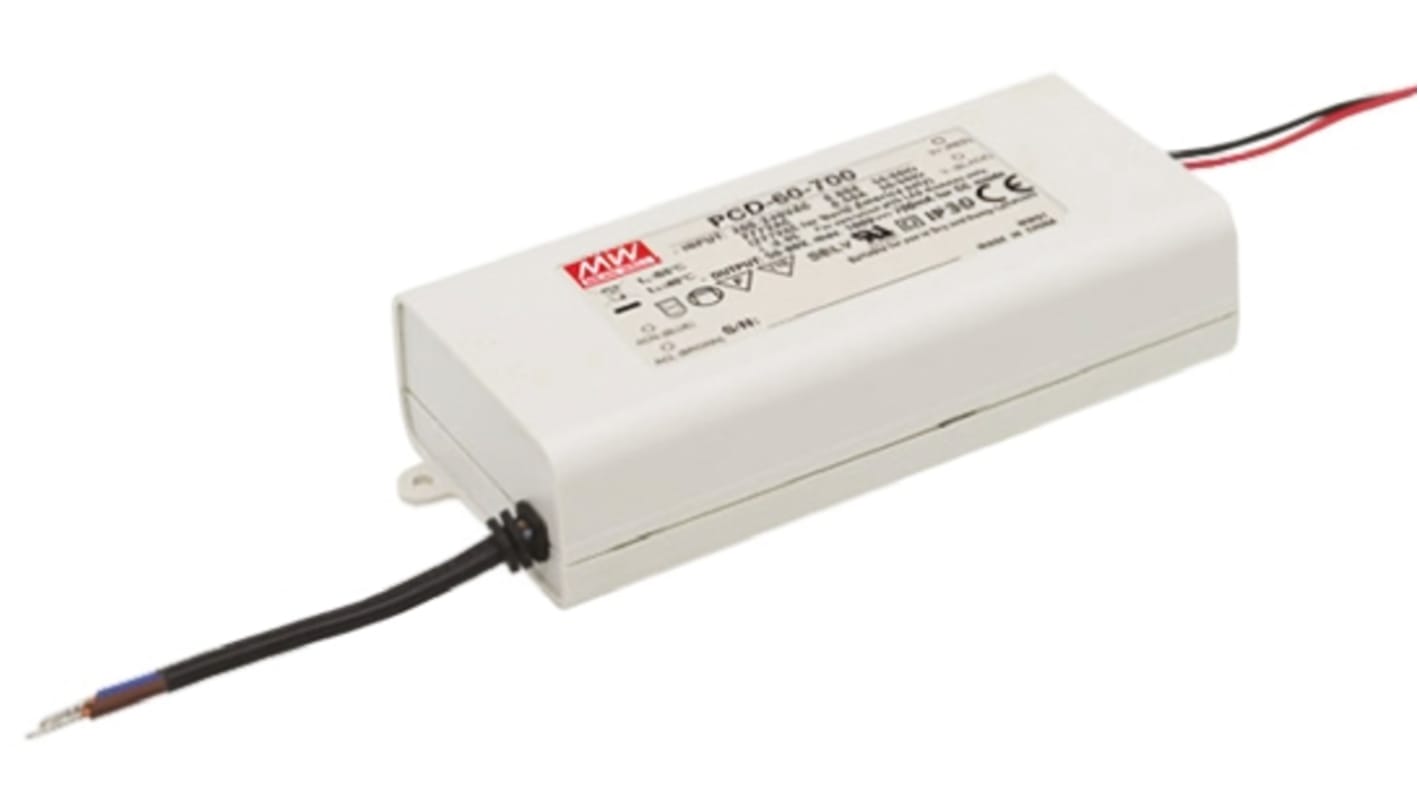

This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
MYR114.84
Stock information currently inaccessible - Please check back later
Units | Per Unit |
|---|---|
| 1 - 4 | MYR114.84 |
| 5 - 9 | MYR112.15 |
| 10 - 24 | MYR109.46 |
| 25 + | MYR104.58 |
*price indicative
- RS Stock No.:
- 777-2746
- Distrelec Article No.:
- 110-86-373
- Mfr. Part No.:
- PCD-60-1050B
- Manufacturer:
- MEAN WELL
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Output Voltage | 34, 57V | |
| Product Type | LED Driver | |
| Maximum Output Power | 59.85W | |
| Input Voltage | 180, 295V ac | |
| Mount Type | Screw | |
| Sub Type | LED Driver | |
| Terminal Type | Wire | |
| Input Voltage Type | AC | |
| IP Rating | IP30 | |
| LED Voltage | 180, 295V ac | |
| Driver Current | 1050mA | |
| Operating Modes | Constant Current | |
| Series | PCD-60 | |
| Standards/Approvals | CE, UL, SELV, ENEC | |
| Number of Outputs | 5 | |
| Configuration | Enclosed | |
| Power Dissipation | 59.85W | |
| Primary Type | AC-AC | |
| Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Output Voltage 34, 57V | ||
Product Type LED Driver | ||
Maximum Output Power 59.85W | ||
Input Voltage 180, 295V ac | ||
Mount Type Screw | ||
Sub Type LED Driver | ||
Terminal Type Wire | ||
Input Voltage Type AC | ||
IP Rating IP30 | ||
LED Voltage 180, 295V ac | ||
Driver Current 1050mA | ||
Operating Modes Constant Current | ||
Series PCD-60 | ||
Standards/Approvals CE, UL, SELV, ENEC | ||
Number of Outputs 5 | ||
Configuration Enclosed | ||
Power Dissipation 59.85W | ||
Primary Type AC-AC | ||
60W Constant Current Dimmable LED Driver PCD-60 Series
The Mean Well PCD-60 Series of LED drivers is a 60W Single Output Constant Current LED power supply with AC phase cut dimming which works with leading edge and trailing edge TRIAC Dimmers. The PCD-60 series have built-in active PFC function, protections including short circuit and over temperature. Fully isolated in a plastic case with strain relief design the unit is IP30 rated and is suitable for indoor LED lighting applications.
AC phase-cut dimming
Works with leading edge and trailing edge TRIAC Dimmers
Built in active PFC function
Protections for Short Circuit and Over Temperature
Cooling by free air convection
Fully isolated plastic case
Class 2 Power Unit
IP30 Design
Suitable for indoor LED lighting applications
100% full load burn in test
Low cost
High reliability
3 years warranty
