MEAN WELL LED Driver, 24 V Output, 60 W Output, 2.5 A 1 to 10 V PWM Resistance

RS Stock No.:: 738-1684
Distrelec Article No.:: 169-96-752
Mfr. Part No.:: LPF-60D-24
Manufacturer:: MEAN WELL

MEAN WELL LED Driver, 24 V Output, 60 W Output, 2.5 A 1 to 10 V PWM Resistance

Bulk discount available

Subtotal (1 unit)*

MYR135.01

FREE delivery for orders over RM 500.00

In Stock

Plus 21 unit(s) shipping from 02 February 2026
Plus 32 unit(s) shipping from 09 February 2026
Plus 64 unit(s) shipping from 04 May 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 - 4	MYR135.01
5 - 9	MYR132.17
10 - 24	MYR128.20
25 +	MYR124.35

*price indicative

RS Stock No.:: 738-1684
Distrelec Article No.:: 169-96-752
Mfr. Part No.:: LPF-60D-24
Manufacturer:: MEAN WELL

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	MEAN WELL
	Product Type	LED Driver
	Output Voltage	24 V
	Maximum Output Power	60W
	Input Voltage	127 → 431 V dc, 90 → 305 V ac
	Mount Type	Screw
	Sub Type	LED Driver
	Dimming Operation	1 to 10 V PWM Resistance
	Terminal Type	Wire
	Input Voltage Type	AC/DC
	IP Rating	IP67
	Driver Current	2.5 A
	Operating Modes	Constant Voltage
	Series	LPF-60D
	Number of Outputs	5
	Standards/Approvals	CB, CE, CSA, EAC, ENEC, SELV, UL
	Configuration	Enclosed
	Power Dissipation	60W
	Primary Type	AC-DC

	Select all
	Brand MEAN WELL
	Product Type LED Driver
	Output Voltage 24 V
	Maximum Output Power 60W
	Input Voltage 127 → 431 V dc, 90 → 305 V ac
	Mount Type Screw
	Sub Type LED Driver
	Dimming Operation 1 to 10 V PWM Resistance
	Terminal Type Wire
	Input Voltage Type AC/DC
	IP Rating IP67
	Driver Current 2.5 A
	Operating Modes Constant Voltage
	Series LPF-60D
	Number of Outputs 5
	Standards/Approvals CB, CE, CSA, EAC, ENEC, SELV, UL
	Configuration Enclosed
	Power Dissipation 60W
	Primary Type AC-DC

COO (Country of Origin):: CN

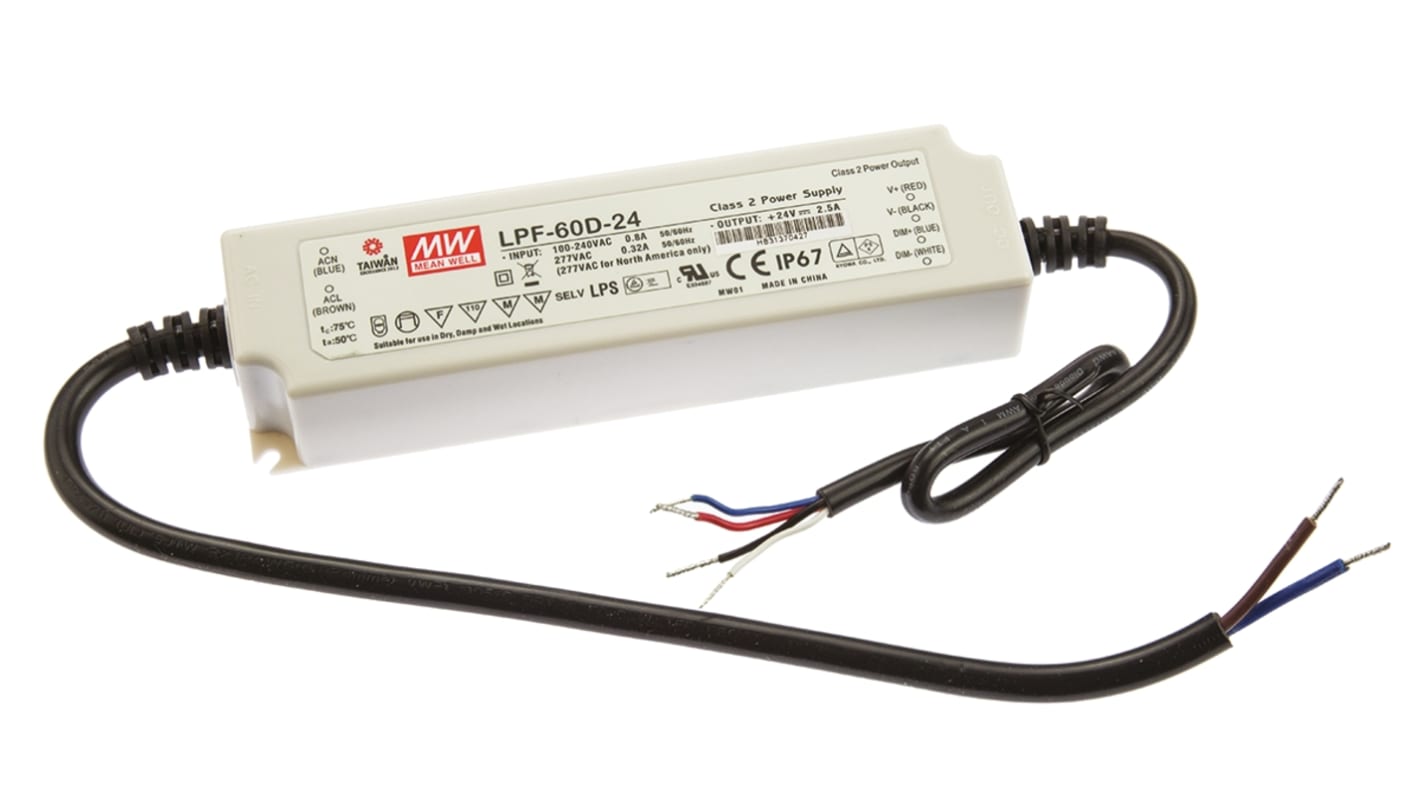

Mean Well 60W IP67 Dimmable Constant Voltage LED Driver / Power Supply - LPF-60D

LPF-60D series 60W IP67 waterproof dimmable constant voltage LED driver / power supply with universal AC input. These IP67 dimmable LED drivers / power supplies have a built in 3 in 1 dimming function, IP67 encapsulation and built in active PFC function. Suitable applications for these dimmable IP67 LED drivers / power supplies include LED lighting and moving sign applications.

Full range universal AC input

Fully encapsulated to IP67

Fully isolated plastic case

Free air convection cooling

Built in active PFC function

Built in 3 in 1 dimming function (1 to 10 Vdc or PMW signal or resistance)

Short circuit, overload, over voltage and over temperature protection

High efficiency of up to 90%

Compliance to worldwide safety regulations for lighting

EMC compliance to EN55015

Harmonic current compliance to EN61000-3-2 Class C (≥60% load); EN61000-3-3

Mean Well LED Drivers / Power Supplies - IP Rated

Note

For Industrial Use Only, not in scope of Regulation (EC) No 125/2009.
MTBF to MIL-HDBK-217F
Derate output above 50°C operating temperature

Approvals

cULus, TUV

Standards

UL8750, EN61347-1, EN61347-2-13 independent, IP67 approved; Design refer to UL60950-1, TUV EN60950-1
