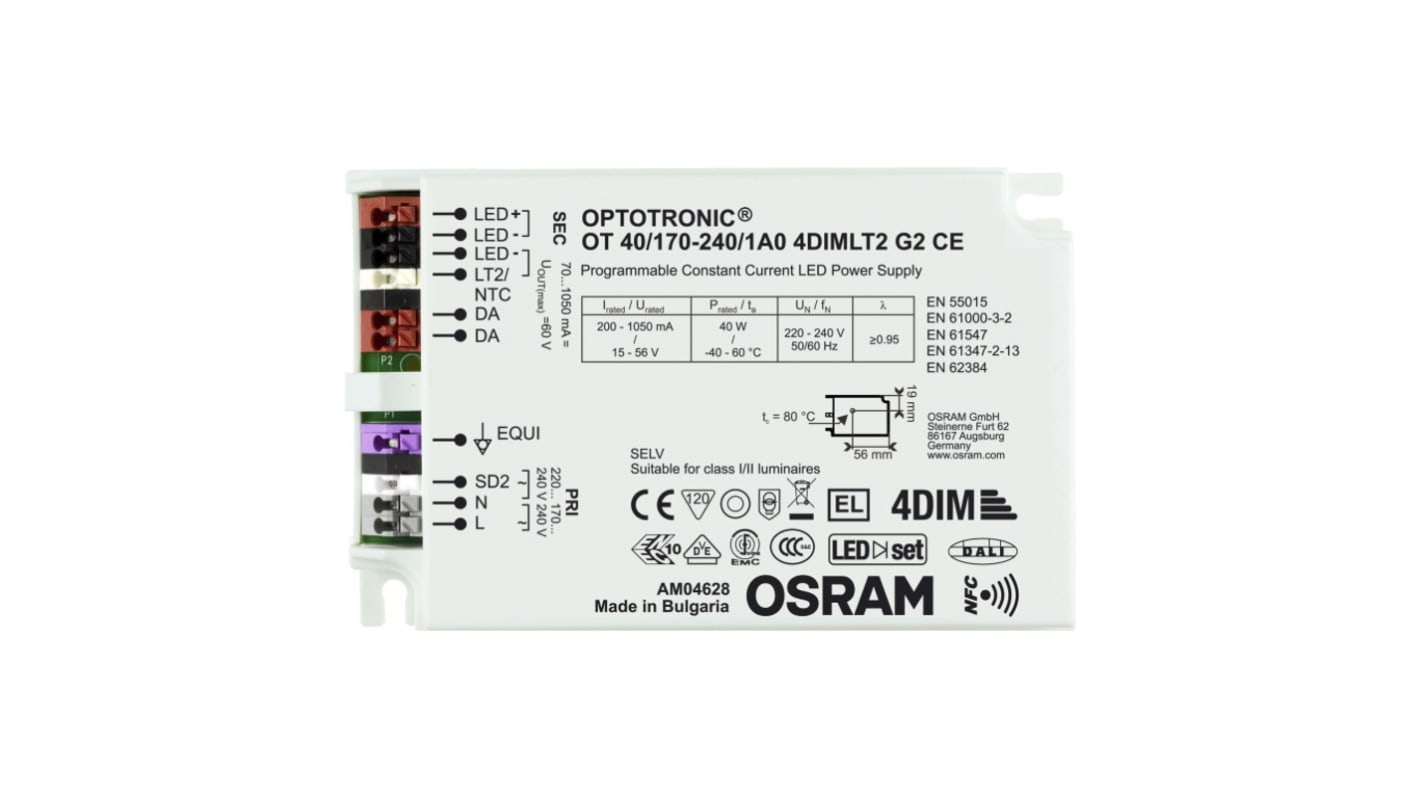

Osram LED Driver, 15/56 V Output, 40 W Output, 200 mA 4DIM

View all LED Drivers
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
182-8730
Mfr. Part No.:
4052899981935
Manufacturer:
Osram
Find similar products by selecting one or more attributes.
Select all

Brand

Osram

Product Type

LED Driver

Maximum Output Power

40W

Mount Type

Screw

Sub Type

LED Driver

Dimming Operation

4DIM

Terminal Type

Push-in

Input Voltage Type

AC

IP Rating

IP20

Operating Modes

Constant Current

Series

OPTOTRONIC NFC

Standards/Approvals

CCC, CE, CQC, EN, ENEC, IEC, UL, VDE

Configuration

Enclosed

Primary Type

AC-DC

Power Dissipation

4.5W

Osram LED Driver


The Osram OPTOTRONIC NFC series LED driver has a constant current and provides great flexibility due to the wide operating temperature range of -40°C to 55°C or 60°C.

Features and Benefits


• AstroDIM for autonomous dimming with five independent levels

• Constant Lumen Output (CLO)

• Current output range from 70mA to 1050mA

• Current rating is 200mA

• Easy and fast wireless luminaire programming via NFC

• Flexible current setting with one additional wire

• Integrated customizable thermal management (driver guard)

• Maximum output power 40W

• Nominal Supply voltage is 220V to 240V

• Output voltage is 15V to 56V

• Over temperature protection via external NTC

Applications


• Industry

• Street and urban lighting

• Suitable for outdoor applications in luminaires with IP > 54

• Suitable for use in outdoor luminaires of protection class I and II

Certifications


• IP20 rating
