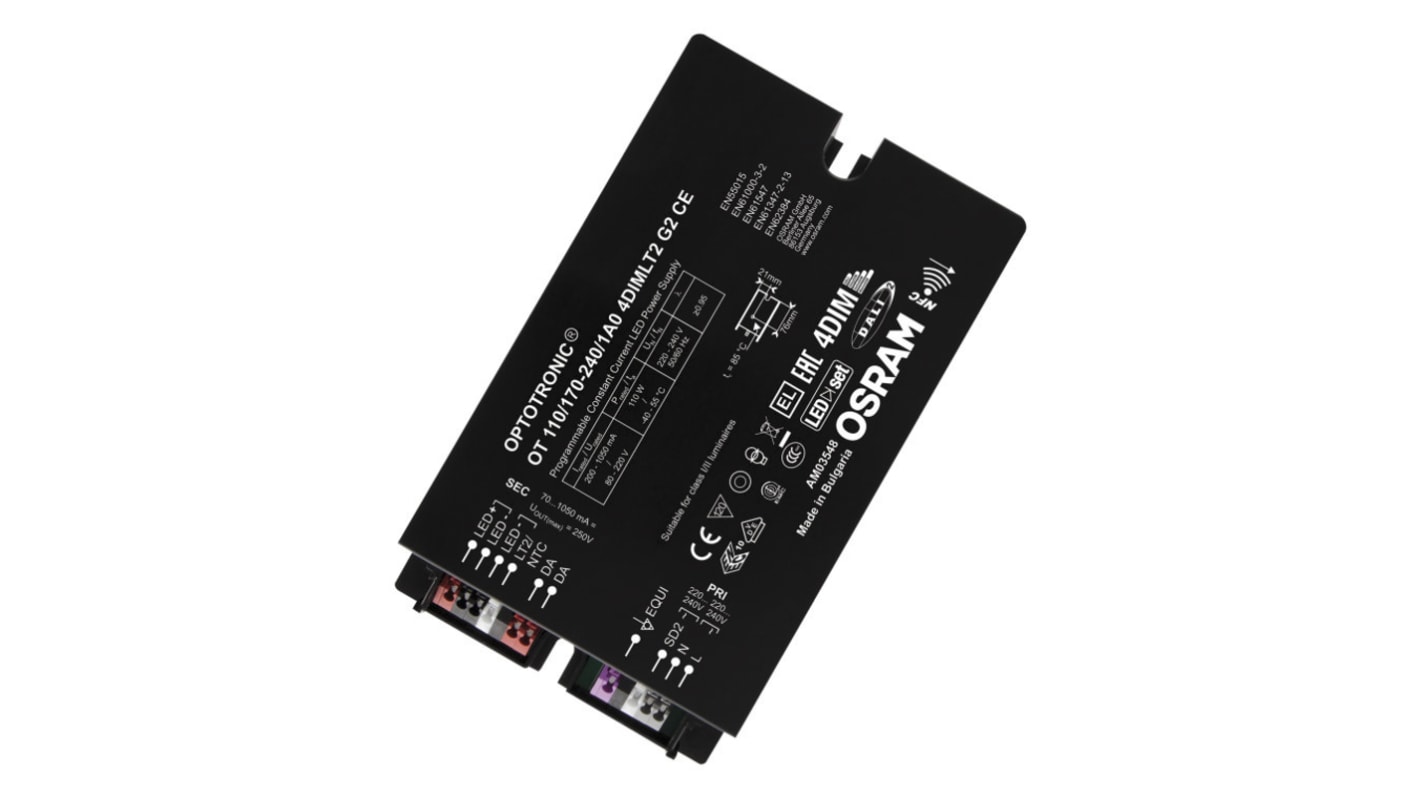

Osram LED Driver, 80/220 V Output, 110 W Output, 540 mA 4DIM

RS Stock No.:: 182-8728
Mfr. Part No.:: 4052899981959
Manufacturer:: Osram

Osram LED Driver, 80/220 V Output, 110 W Output, 540 mA 4DIM

This image is representative of the product range

Bulk discount available

Subtotal (1 unit)*

MYR392.99

FREE delivery for orders over RM 500.00

In Stock

Plus 10 unit(s) shipping from 30 March 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 - 4	MYR392.99
5 - 9	MYR387.48
10 - 19	MYR379.73
20 - 39	MYR372.14
40 +	MYR364.70

*price indicative

RS Stock No.:: 182-8728
Mfr. Part No.:: 4052899981959
Manufacturer:: Osram

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Osram
	Product Type	LED Driver
	Maximum Output Power	110W
	Mount Type	Screw
	Sub Type	LED Driver
	Dimming Operation	4DIM
	Input Voltage Type	AC
	Terminal Type	Push-in
	IP Rating	IP20
	Operating Modes	Constant Current
	Series	OPTOTRONIC NFC
	Standards/Approvals	CCC, CE, CQC, EN, ENEC, IEC, UL, VDE
	Configuration	Enclosed
	Primary Type	AC-DC
	Power Dissipation	8W

	Select all
	Brand Osram
	Product Type LED Driver
	Maximum Output Power 110W
	Mount Type Screw
	Sub Type LED Driver
	Dimming Operation 4DIM
	Input Voltage Type AC
	Terminal Type Push-in
	IP Rating IP20
	Operating Modes Constant Current
	Series OPTOTRONIC NFC
	Standards/Approvals CCC, CE, CQC, EN, ENEC, IEC, UL, VDE
	Configuration Enclosed
	Primary Type AC-DC
	Power Dissipation 8W

Datasheet 4052899981959

Osram LED Driver

The Osram OPTOTRONIC NFC series LED driver has a constant current and provides great flexibility due to the wide operating temperature range of -40°C to 55°C or 60°C.

Features and Benefits

• AstroDIM for autonomous dimming with five independent levels

• Constant lumen output (CLO)

• Current output range is 200mA to 1050mA

• Current rating is 540mA

• Easy and fast wireless luminaire programming via NFC

• Flexible current setting with one additional wire

• Integrated customizable thermal management (driver guard)

• Maximum output power is 110W

• Nominal Supply voltage is 220 to 240V

• Output voltage is 80V to 220V

• Over temperature protection via external NTC

Applications

• Industry

• Street and urban lighting

• Suitable for outdoor applications in luminaires with IP > 54

• Suitable for use in outdoor luminaires of protection class I and II

Certifications

• IP20 rating
