MEAN WELL LED Driver, 214 V Output, 75 W Output, 450 mA

View all LED Drivers

Subtotal (1 unit)*

MYR173.35

Add to Basket
Select or type quantity
In Stock
  • Plus 15 unit(s) shipping from 02 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 +MYR173.35

*price indicative

RS Stock No.:
103-4324
Distrelec Article No.:
300-51-594
Mfr. Part No.:
ELG-75-C350B
Manufacturer:
MEAN WELL
Find similar products by selecting one or more attributes.
Select all

Brand

MEAN WELL

Product Type

LED Driver

Output Voltage

214 V

Maximum Output Power

75W

Input Voltage

180 → 305 V ac, 254 → 431 V dc

Mount Type

Screw

Sub Type

LED Driver

Input Voltage Type

AC/DC

Terminal Type

Wire

IP Rating

IP65, IP67

Operating Modes

Constant Current

Driver Current

450 mA

Standards/Approvals

CB, CE:CCC, cULus Recognized, EN61347-1, EN61347-2-13, EN62384, ENEC, PFC, UL8750

Number of Outputs

1

Series

ELG-75-C

Configuration

Encapsulated

Power Dissipation

75W

Primary Type

DC-DC, AC-DC

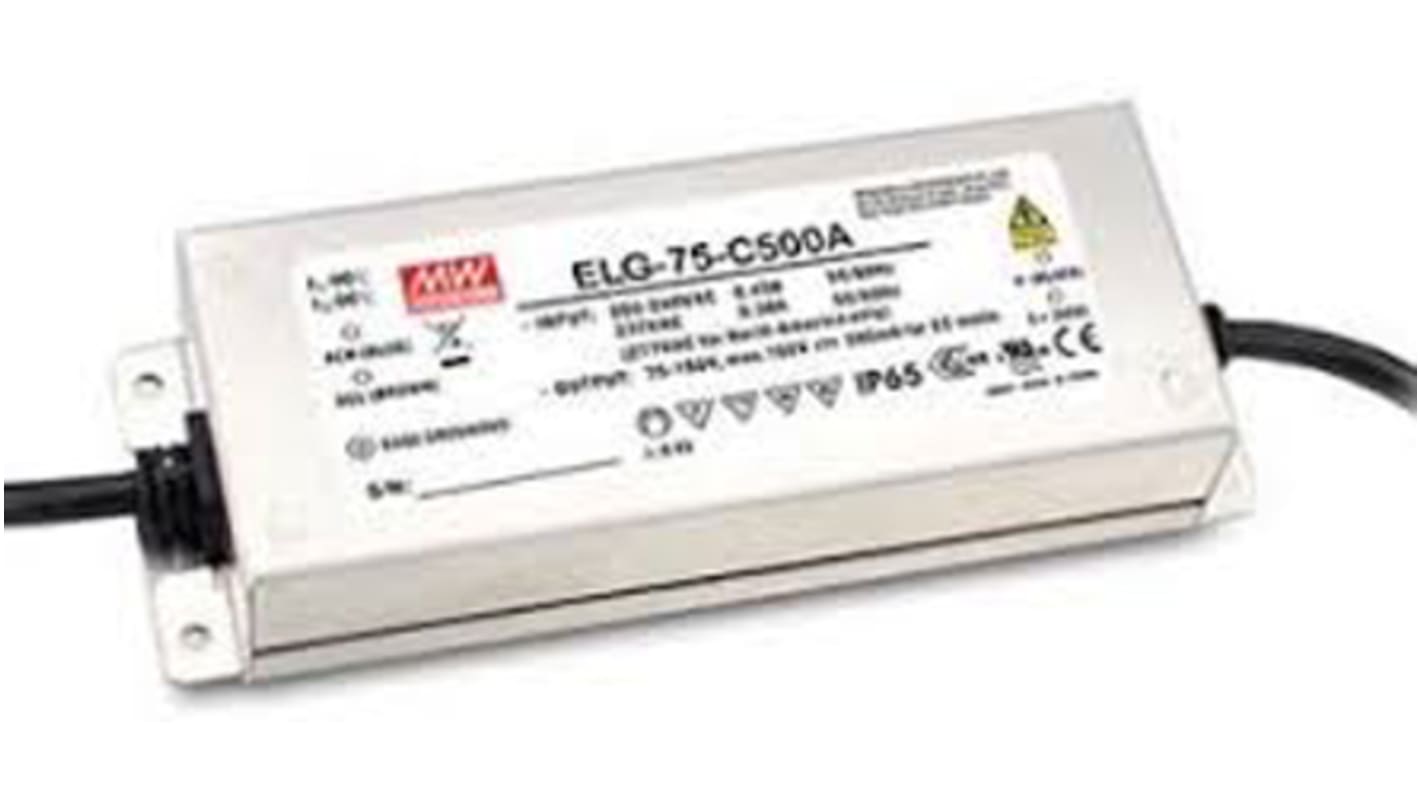

Mean Well ELG-75C Series Dimmable LED Driver


Mean Well ELG-75C series of constant current 75 W dimmable LED Driver, which also supports a high-voltage output. Thanks to a fan-less design, the ELG-75C series provides an efficiency rating of up to 91%. Constructed in a robust full metal housing to ensure suitability with a wide variety of applications.

Features and Benefits

•Fan-less design provides high efficiency rating.

•Wide operating temperature range.

•Rated to IP 65/67 depending on the option selected.

•Designed to provide the optimal flexibility for LED applications.

•Both Potentiometer and PWM signal dimming options available.

•Class 2 power unit.

•Built-in active PFC function.

Typical applications include LED street lighting, architectural lighting, bay lighting & floodlighting.
