    Wurth 2 x 35 mH -30 → +50% Nano Crystalline Common Mode Choke, Max SRF:1 kHz → 300 MHz, 5A Idc, 2 x 90mΩ

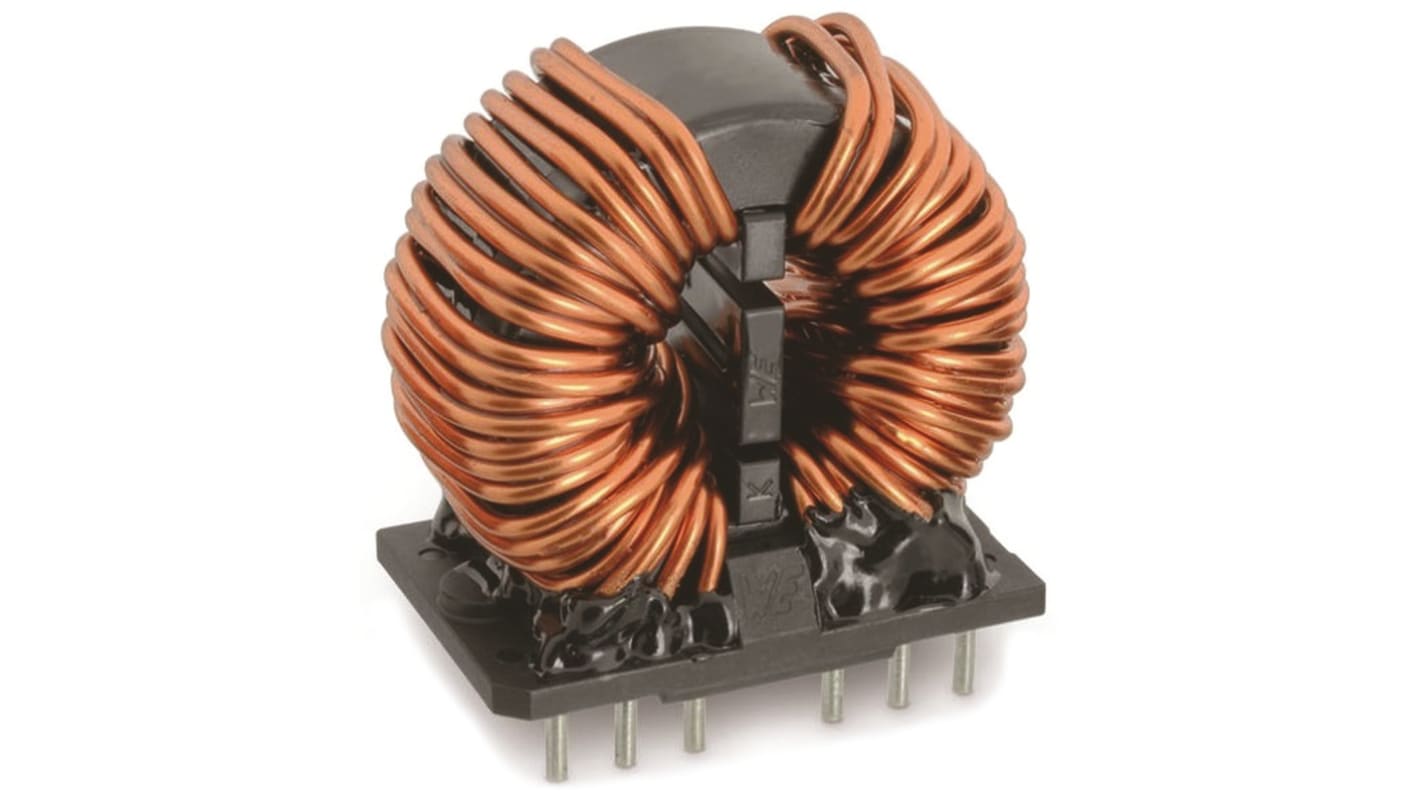

    This image is representative of the product range

    Subtotal (1 unit)**

    MYR118.42

    Add to Basket
    Select or type quantity
    Temporarily out of stock - back order for despatch 21/11/2025, delivery within 4 working days from despatch date*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Units
    Per Unit
    1 +MYR118.42

    **price indicative

    RS Stock No.:
    816-4846
    Mfr. Part No.:
    7448060535
    Manufacturer:
    Wurth Elektronik
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    Wurth Elektronik

    Inductance

    2 x 35 mH

    Maximum DC Current

    5A

    Mounting Type

    Through Hole

    Maximum DC Resistance

    2 x 90mΩ

    Tolerance

    -30 → +50%

    Length

    42mm

    Depth

    27mm

    Height

    46mm

    Dimensions

    42 x 27 x 46mm

    Core Material

    Nano Crystalline

    Maximum Self Resonant Frequency

    1 kHz → 300 MHz

    Lead Pitch

    10mm

    Series

    WE-CMBNC

    Maximum Operating Temperature

    +125°C

    Minimum Operating Temperature

    -40°C

    Terminal Type

    Through Hole

    Lead Diameter

    0.8mm
