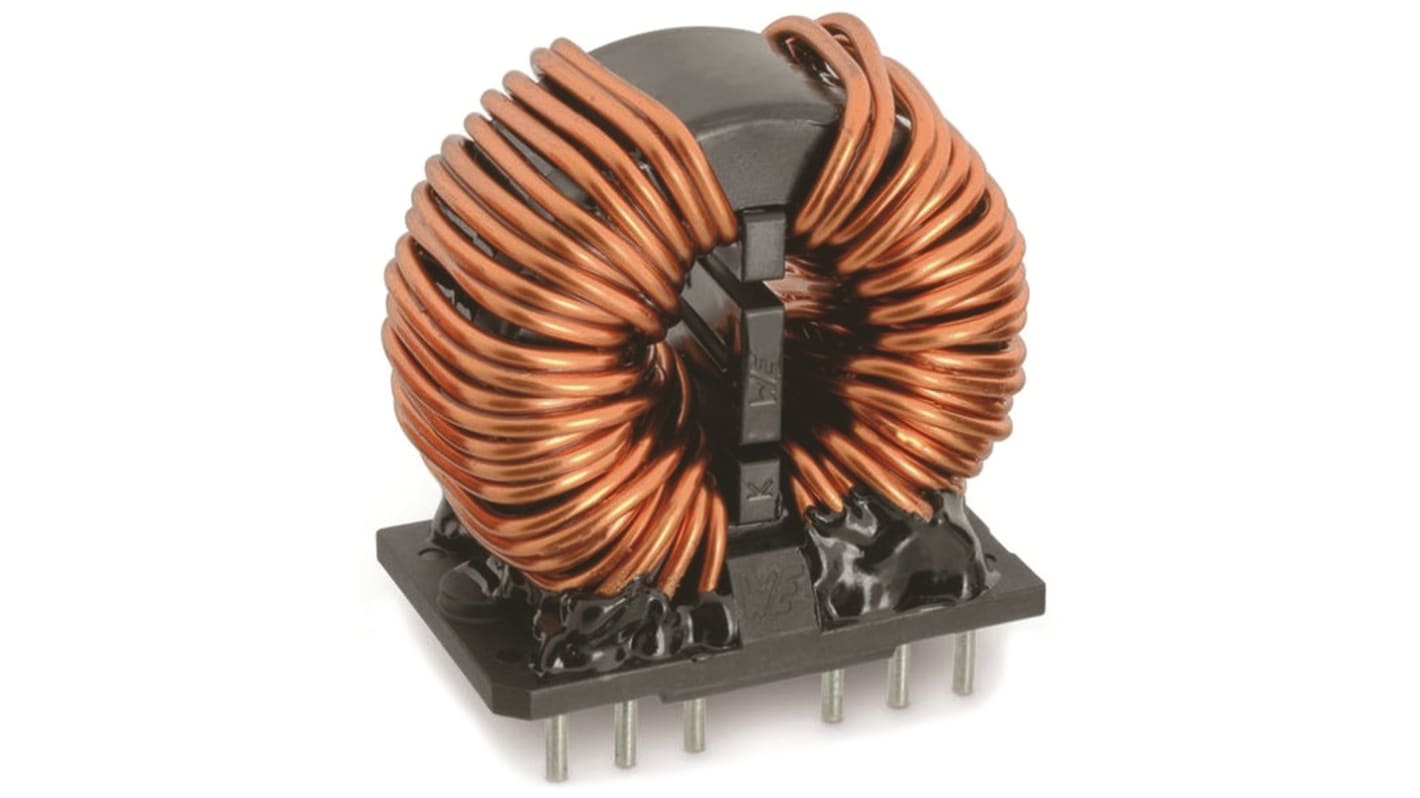

Wurth 2 x 20 mH -30 → +50% Nano Crystalline Common Mode Choke, Max SRF:1 kHz → 300 MHz, 6A Idc, 2 x 45mΩ
- RS Stock No.:
- 816-4840
- Distrelec Article No.:
- 300-62-598
- Mfr. Part No.:
- 7448060620
- Manufacturer:
- Wurth Elektronik
Bulk discount available
Subtotal (1 unit)**
MYR125.98
8 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit |
|---|---|
| 1 - 3 | MYR125.98 |
| 4 - 7 | MYR119.69 |
| 8 + | MYR113.69 |
**price indicative
- RS Stock No.:
- 816-4840
- Distrelec Article No.:
- 300-62-598
- Mfr. Part No.:
- 7448060620
- Manufacturer:
- Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Inductance | 2 x 20 mH | |
| Maximum DC Current | 6A | |
| Mounting Type | Through Hole | |
| Maximum DC Resistance | 2 x 45mΩ | |
| Tolerance | -30 → +50% | |
| Length | 42mm | |
| Depth | 27mm | |
| Height | 46mm | |
| Dimensions | 42 x 27 x 46mm | |
| Core Material | Nano Crystalline | |
| Maximum Self Resonant Frequency | 1 kHz → 300 MHz | |
| Lead Pitch | 10mm | |
| Series | WE-CMBNC | |
| Terminal Type | Through Hole | |
| Lead Diameter | 1mm | |
| Maximum Operating Temperature | +125°C | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Inductance 2 x 20 mH | ||
Maximum DC Current 6A | ||
Mounting Type Through Hole | ||
Maximum DC Resistance 2 x 45mΩ | ||
Tolerance -30 → +50% | ||
Length 42mm | ||
Depth 27mm | ||
Height 46mm | ||
Dimensions 42 x 27 x 46mm | ||
Core Material Nano Crystalline | ||
Maximum Self Resonant Frequency 1 kHz → 300 MHz | ||
Lead Pitch 10mm | ||
Series WE-CMBNC | ||
Terminal Type Through Hole | ||
Lead Diameter 1mm | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -40°C | ||
