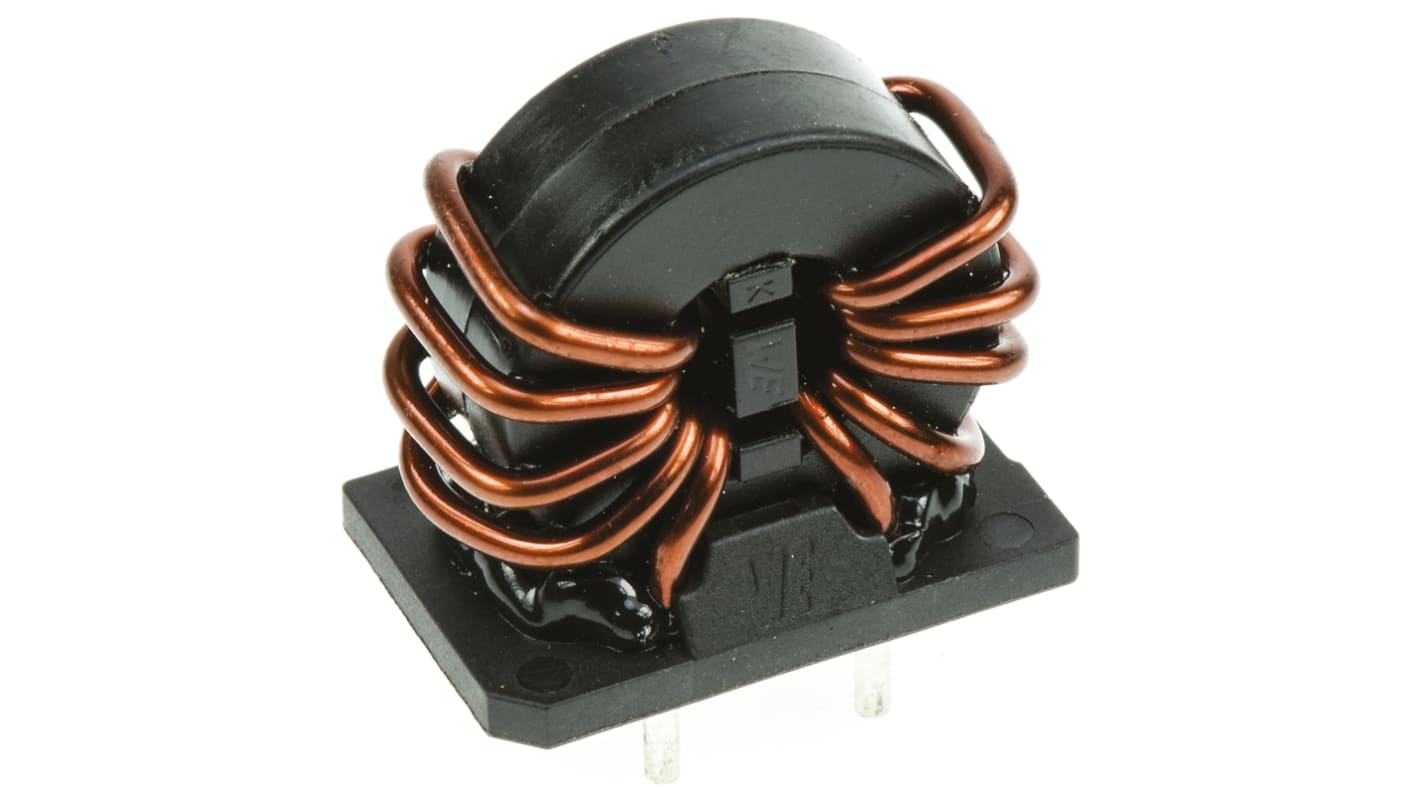

Wurth 2 x 15 mH -30 → +50% Nano Crystalline Common Mode Choke, Max SRF:1 kHz → 300 MHz, 5A Idc, 2 x 38mΩ
- RS Stock No.:
- 816-4799
- Mfr. Part No.:
- 7448040515
- Manufacturer:
- Wurth Elektronik
Bulk discount available
Subtotal (1 unit)**
MYR61.36
17 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit |
|---|---|
| 1 - 6 | MYR61.36 |
| 7 - 12 | MYR58.29 |
| 13 + | MYR55.38 |
**price indicative
- RS Stock No.:
- 816-4799
- Mfr. Part No.:
- 7448040515
- Manufacturer:
- Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Inductance | 2 x 15 mH | |
| Maximum DC Current | 5A | |
| Mounting Type | Through Hole | |
| Maximum DC Resistance | 2 x 38mΩ | |
| Tolerance | -30 → +50% | |
| Length | 28mm | |
| Depth | 19mm | |
| Height | 32mm | |
| Dimensions | 28 x 19 x 32mm | |
| Core Material | Nano Crystalline | |
| Maximum Self Resonant Frequency | 1 kHz → 300 MHz | |
| Lead Pitch | 10mm | |
| Series | WE-CMBNC | |
| Lead Diameter | 1mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +125°C | |
| Terminal Type | Through Hole | |
Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Inductance 2 x 15 mH | ||
Maximum DC Current 5A | ||
Mounting Type Through Hole | ||
Maximum DC Resistance 2 x 38mΩ | ||
Tolerance -30 → +50% | ||
Length 28mm | ||
Depth 19mm | ||
Height 32mm | ||
Dimensions 28 x 19 x 32mm | ||
Core Material Nano Crystalline | ||
Maximum Self Resonant Frequency 1 kHz → 300 MHz | ||
Lead Pitch 10mm | ||
Series WE-CMBNC | ||
Lead Diameter 1mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +125°C | ||
Terminal Type Through Hole | ||
