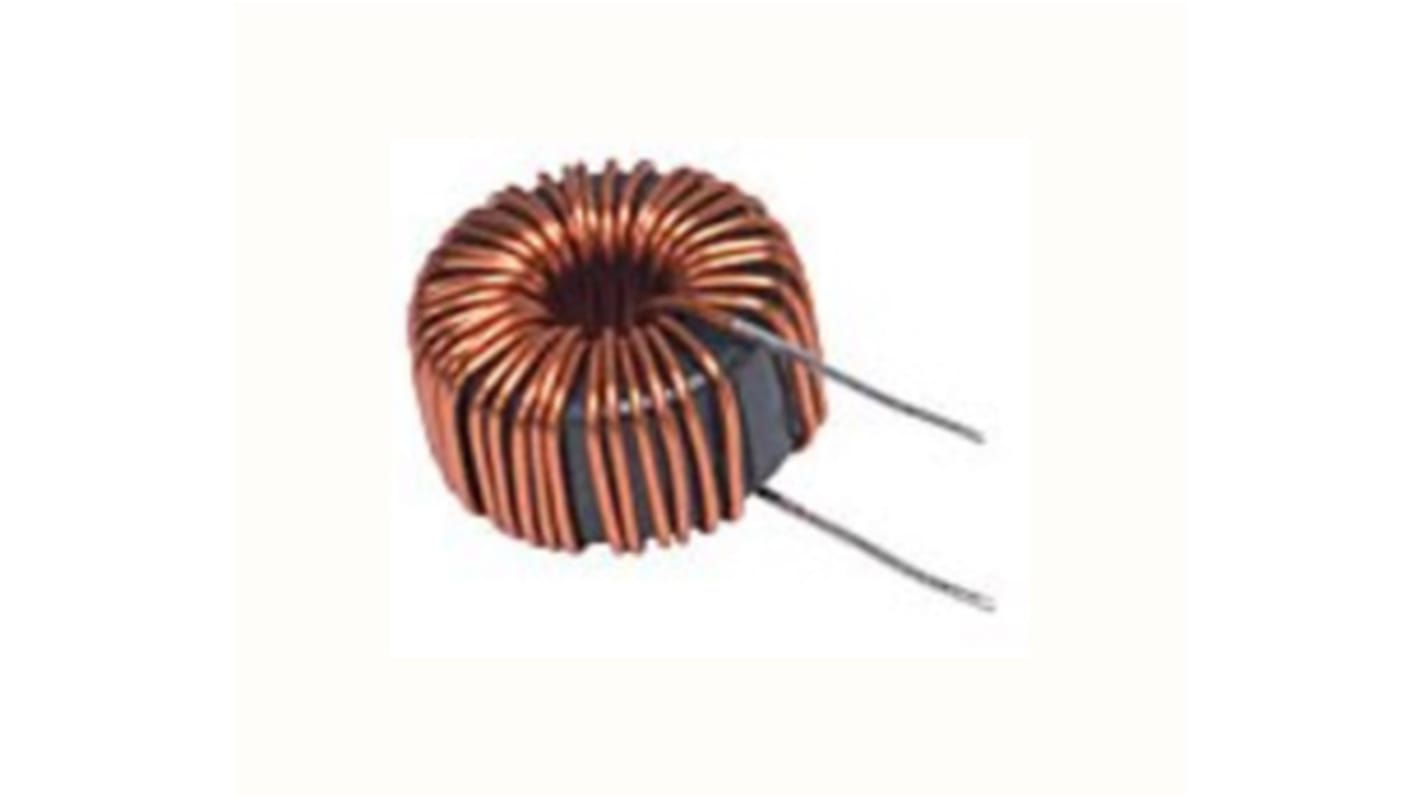

Tamura 100 μH ±25% Ferrite Leaded Inductor, 5A Idc, 35mΩ Rdc, NAC-05
- RS Stock No.:
- 153-4176
- Mfr. Part No.:
- NAC-05-0101
- Manufacturer:
- Tamura
Bulk discount available
Subtotal (1 unit)**
MYR57.81
Available for back order.*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Units | Per Unit |
|---|---|
| 1 - 4 | MYR57.81 |
| 5 - 9 | MYR55.51 |
| 10 + | MYR53.19 |
**price indicative
- RS Stock No.:
- 153-4176
- Mfr. Part No.:
- NAC-05-0101
- Manufacturer:
- Tamura
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Tamura | |
| Inductance | 100 μH | |
| Maximum DC Current | 5A | |
| Mounting Type | Through Hole | |
| Maximum DC Resistance | 35mΩ | |
| Tolerance | ±25% | |
| Diameter | 24mm | |
| Height | 18mm | |
| Dimensions | 24 (Dia.) x 18mm | |
| Core Material | Ferrite | |
| Lead Pitch | 18mm | |
| Series | NAC-05 | |
| Terminal Type | Wire | |
| Lead Diameter | 1mm | |
Select all | ||
|---|---|---|
Brand Tamura | ||
Inductance 100 μH | ||
Maximum DC Current 5A | ||
Mounting Type Through Hole | ||
Maximum DC Resistance 35mΩ | ||
Tolerance ±25% | ||
Diameter 24mm | ||
Height 18mm | ||
Dimensions 24 (Dia.) x 18mm | ||
Core Material Ferrite | ||
Lead Pitch 18mm | ||
Series NAC-05 | ||
Terminal Type Wire | ||
Lead Diameter 1mm | ||
