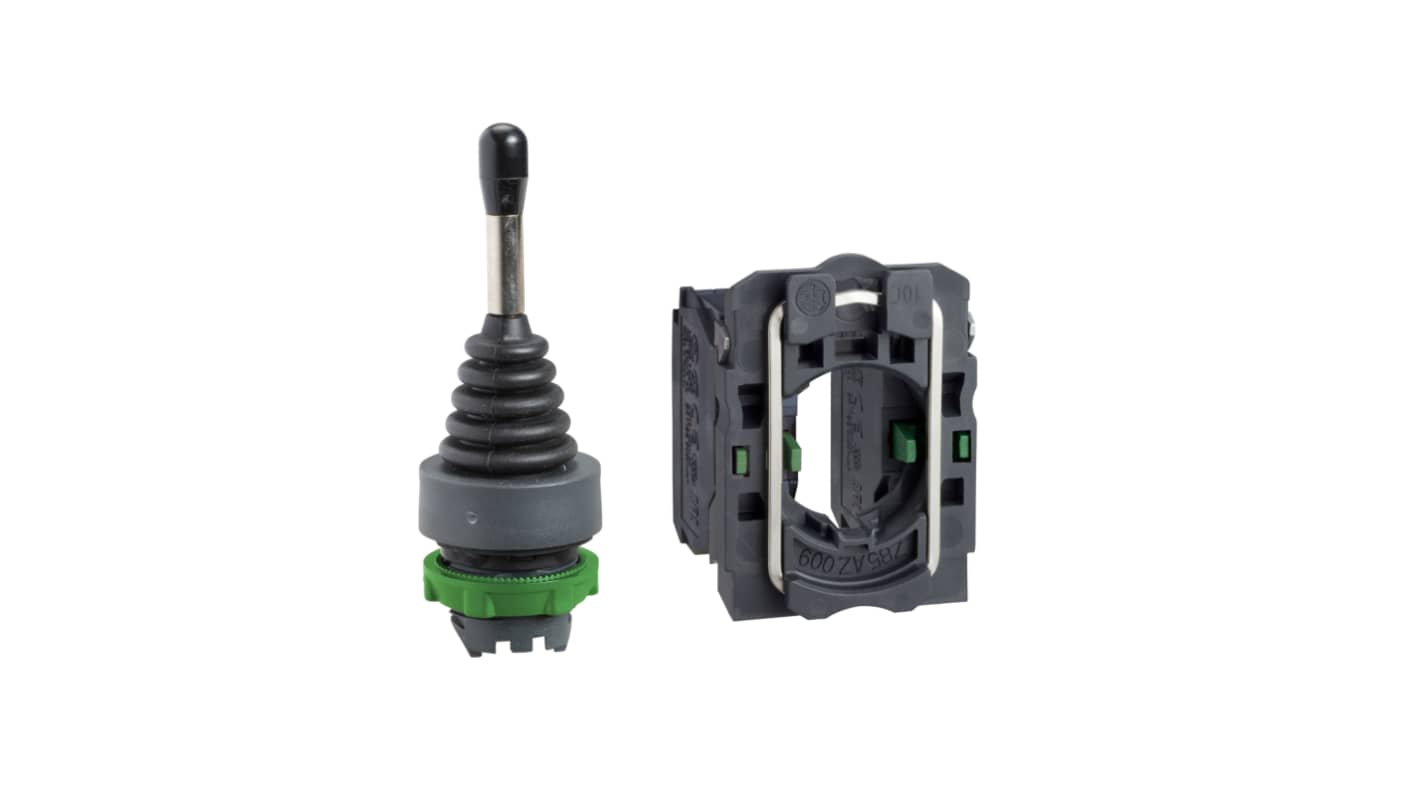

Schneider Electric 2-Axis Joystick Lever Spring Return, IP66, 600 V ac, 220mA
- RS Stock No.:
- 609-6782
- Distrelec Article No.:
- 303-02-584
- Mfr. Part No.:
- XD5PA22
- Manufacturer:
- Schneider Electric
Subtotal (1 unit)*
MYR740.34
FREE delivery for orders over RM 500.00
In Stock
- 49 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR740.34 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 609-6782
- Distrelec Article No.:
- 303-02-584
- Mfr. Part No.:
- XD5PA22
- Manufacturer:
- Schneider Electric
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Joystick | |
| Number of Axes | 2 | |
| Series | Harmony XD5 | |
| Switch Technology | Spring Return | |
| IP Rating | IP66 | |
| Handle Type | Lever | |
| Contact AC Voltage | 600V ac | |
| Switch Contact Current | 220mA | |
| Contact Configuration | SPST | |
| Contact Material | Silver Nickel Alloy | |
| Terminal Type | Screw | |
| Mechanical Life | 1000000Cycles | |
| Standards/Approvals | RoHS | |
| Better World Product | Yes | |
| Better World Claim | Repairable by the End User | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Joystick | ||
Number of Axes 2 | ||
Series Harmony XD5 | ||
Switch Technology Spring Return | ||
IP Rating IP66 | ||
Handle Type Lever | ||
Contact AC Voltage 600V ac | ||
Switch Contact Current 220mA | ||
Contact Configuration SPST | ||
Contact Material Silver Nickel Alloy | ||
Terminal Type Screw | ||
Mechanical Life 1000000Cycles | ||
Standards/Approvals RoHS | ||
Better World Product Yes | ||
Better World Claim Repairable by the End User | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
- COO (Country of Origin):
- FR
Schneider Electric Harmony XD5 Series Joystick Switch, Spring Return Switch Technology, Lever Handle - XD5PA22
This joystick switch is designed for precise control in a variety of automation and industrial applications. Its robust design and spring return functionality ensure seamless operation, making it an essential component for those in the electronics and mechanical sectors. The device is built to endure tough environments, guaranteeing reliability and effectiveness under demanding conditions.
Features & Benefits
• 2-axis configuration enhances multi-directional control
• Spring return mechanism provides an automatic reset to neutral
• IP66 rating offers dust and water protection
• Silver nickel contact material ensures high conductivity and durability
• Mechanical life rated at 1,000,000 cycles supports long-term use
• Screw clamp terminals simplify wiring for installation
Applications
• Used for controlling machinery in manufacturing environments
• Suitable for vehicles requiring operator directional control
• Implemented in robotic systems for improved manoeuvrability
• Employed in automated assembly lines for precise operations
What is the operational temperature range for this device?
The operational temperature range is between -25°C and +70°C, making it suitable for various environmental conditions.
How does the joystick support compatibility with different systems?
The joystick features screw clamp terminals that accommodate cables up to 1.5mm², facilitating easy integration into most electrical systems.
What kind of maintenance is required for ensuring longevity?
Regular inspection for wear on the operational shaft and keeping the unit free from contaminants can help maintain its functionality and lifespan.
Is the joystick resistant to pressure washing?
Yes, it can withstand high-pressure washing, rated at 7000000Pa at 55°C, making it appropriate for cleaning in industrial settings.
How is the joystick switch certified for safety?
The device complies with various international standards, ensuring it meets both safety and operational reliability criteria for industrial applications.
