Schneider Electric 2-Axis Joystick Lever Stay Put, IP66, 600 V ac, 220mA
- RS Stock No.:
- 609-6776
- Distrelec Article No.:
- 303-02-581
- Mfr. Part No.:
- XD4PA12
- Manufacturer:
- Schneider Electric
Subtotal (1 unit)*
MYR493.93
Stock information currently inaccessible - Please check back later
Units | Per Unit |
|---|---|
| 1 + | MYR493.93 |
*price indicative
Our Better World range features products that make it easy for you to make a greener product choice you can trust.
- RS Stock No.:
- 609-6776
- Distrelec Article No.:
- 303-02-581
- Mfr. Part No.:
- XD4PA12
- Manufacturer:
- Schneider Electric
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Joystick | |
| Number of Axes | 2 | |
| Series | Harmony XD4 | |
| Switch Technology | Stay Put | |
| IP Rating | IP66 | |
| Handle Type | Lever | |
| Contact AC Voltage | 600V ac | |
| Switch Contact Current | 220mA | |
| Contact Configuration | SPST | |
| Contact Material | Silver Nickel Alloy | |
| Terminal Type | Screw | |
| Mechanical Life | 1000000Cycles | |
| Standards/Approvals | RoHS | |
| Better World Claim | Repairable by the End User | |
| Better World Product | Yes | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Joystick | ||
Number of Axes 2 | ||
Series Harmony XD4 | ||
Switch Technology Stay Put | ||
IP Rating IP66 | ||
Handle Type Lever | ||
Contact AC Voltage 600V ac | ||
Switch Contact Current 220mA | ||
Contact Configuration SPST | ||
Contact Material Silver Nickel Alloy | ||
Terminal Type Screw | ||
Mechanical Life 1000000Cycles | ||
Standards/Approvals RoHS | ||
Better World Claim Repairable by the End User | ||
Better World Product Yes | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
- COO (Country of Origin):
- FR

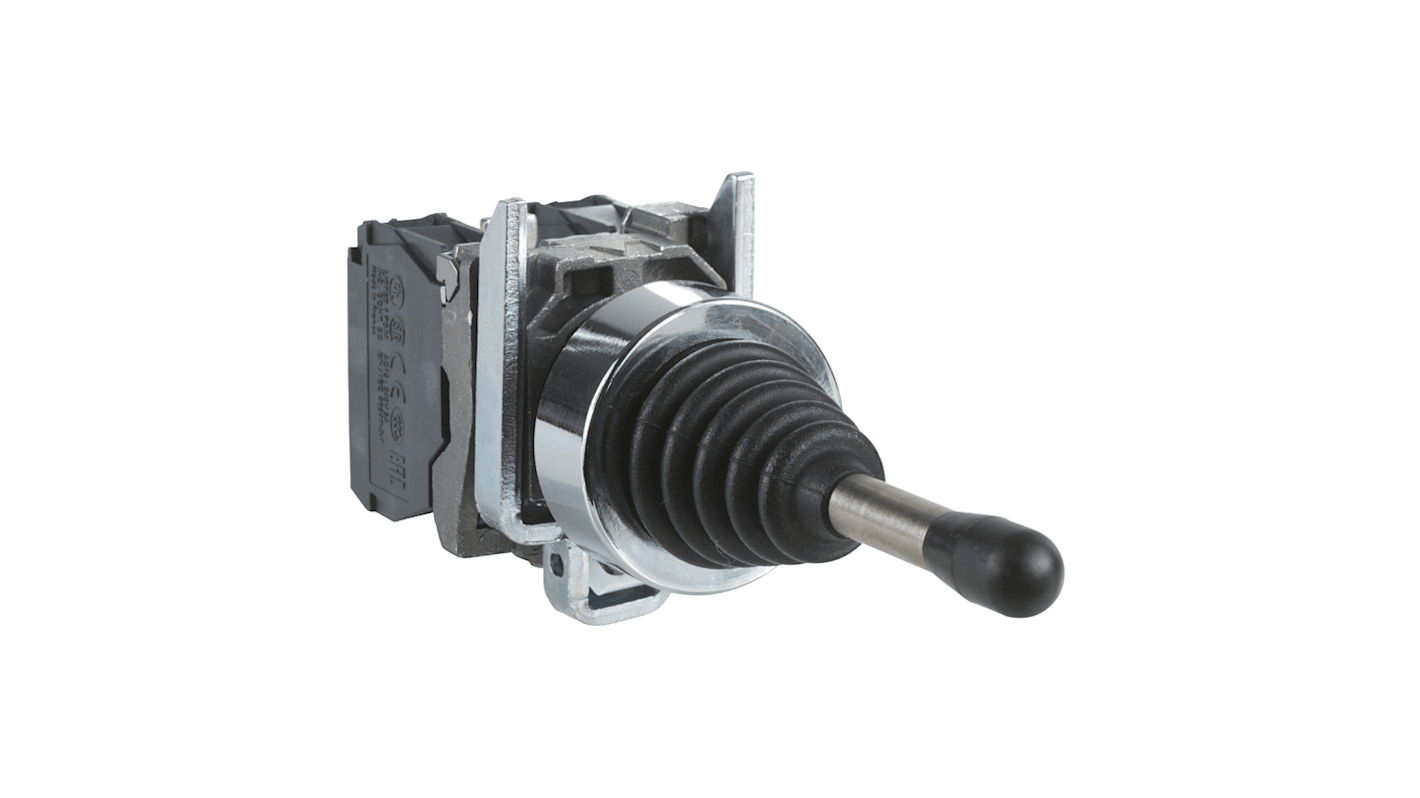

Schneider Electric Joystick Switch, 1,000,000 Cycles Mechanical Service Life - Harmony XD4 Series - XD4PA12
When you want to get a handle on moving machine components in your work environment, grab this joystick switch from Schneider Electric. It's designed to stay put in a set position until you move it, so you can rest assured you'll always have the upper hand in your industrial control system. The tough metal body is plated with durable chromium that's resistant to wear. A mechanical service life of 1,000,000 cycles lets you keep a tight grip on your equipment over long periods of use.
• Broad operating temperature range between -25°C and +70°C for safe use in challenging environments
• Silver nickel contacts are corrosion-resistant for durability
• Zamak fixing collar for a secure fit on your panel
• Resistant to shock and vibration for durable performance
Applications
• Construction industry
• Seaports and airports
• Medical technology
How do I install this joystick switch?
This switch comes with a built-in contact block at its base so you can easily mount it in your control panel without needing special tools. Simply attach the block to your control circuits using the screw clamp terminals. It's designed to fit in an industry-standard mounting with a diameter of 22mm, making it easy to integrate into your existing panel.
