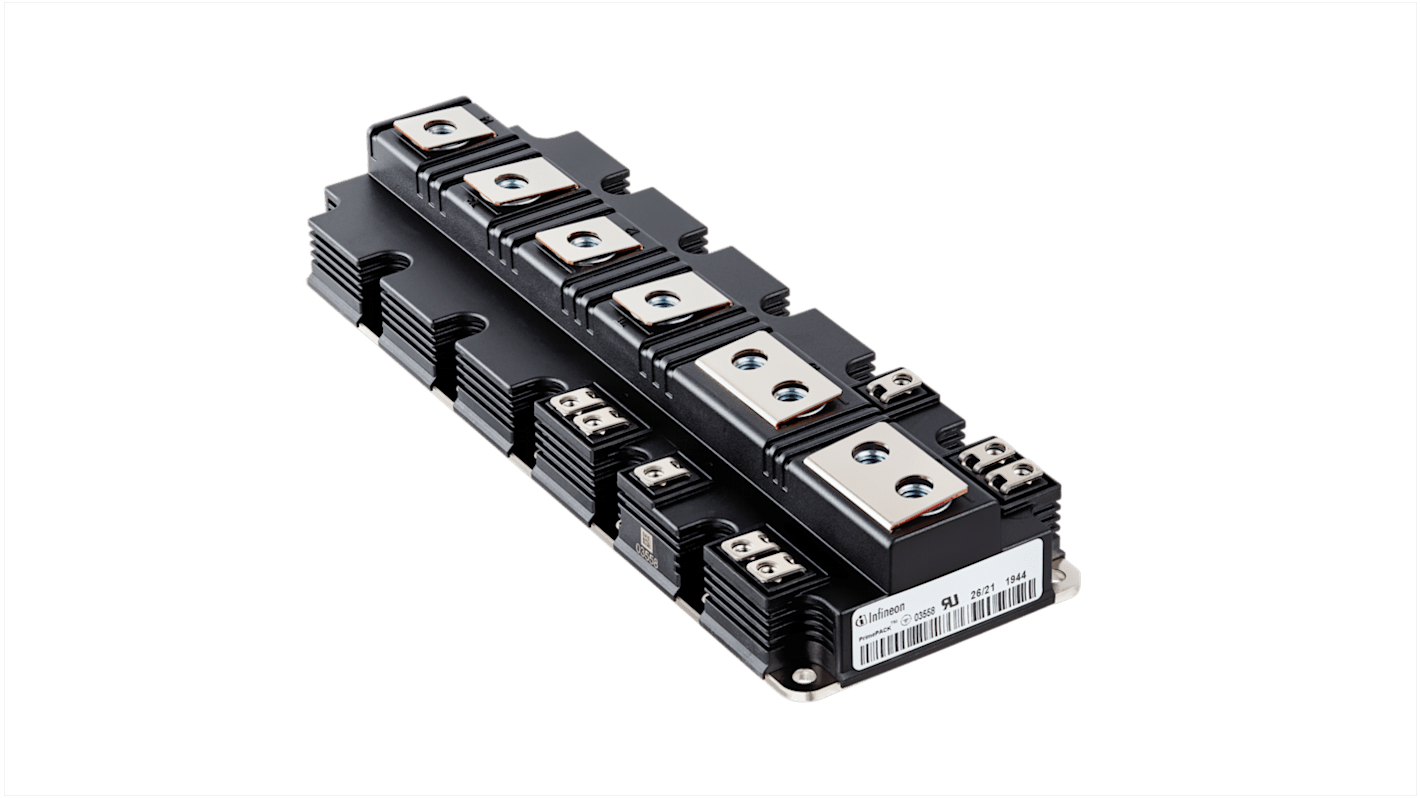

Infineon FF1800R23IE7BPSA1 IGBT Module, 1.8 kA 2.3 kV PRIME3, Screw

RS Stock No.:: 259-2720
Mfr. Part No.:: FF1800R23IE7BPSA1
Manufacturer:: Infineon

Infineon FF1800R23IE7BPSA1 IGBT Module, 1.8 kA 2.3 kV PRIME3, Screw

Bulk discount available

View bulk pricing options

Subtotal (1 unit)*

MYR10,931.62

Stock information currently inaccessible - Please check back later

Units	Per Unit
1 - 1	MYR10,931.62
2 +	MYR10,385.05

*price indicative

RS Stock No.:: 259-2720
Mfr. Part No.:: FF1800R23IE7BPSA1
Manufacturer:: Infineon

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Product Type	IGBT Module
	Maximum Continuous Collector Current Ic	1.8kA
	Maximum Collector Emitter Voltage Vceo	2.3kV
	Maximum Power Dissipation Pd	2700kW
	Package Type	PRIME3
	Mount Type	Screw
	Maximum Collector Emitter Saturation Voltage VceSAT	3.13V
	Minimum Operating Temperature	-40°C
	Maximum Gate Emitter Voltage VGEO	20 V
	Maximum Operating Temperature	150°C
	Width	86mm
	Standards/Approvals	RoHS
	Series	FF1800R23IE7
	Length	247mm
	Height	26mm
	Automotive Standard	No

	Select all
	Brand Infineon
	Product Type IGBT Module
	Maximum Continuous Collector Current Ic 1.8kA
	Maximum Collector Emitter Voltage Vceo 2.3kV
	Maximum Power Dissipation Pd 2700kW
	Package Type PRIME3
	Mount Type Screw
	Maximum Collector Emitter Saturation Voltage VceSAT 3.13V
	Minimum Operating Temperature -40°C
	Maximum Gate Emitter Voltage VGEO 20 V
	Maximum Operating Temperature 150°C
	Width 86mm
	Standards/Approvals RoHS
	Series FF1800R23IE7
	Length 247mm
	Height 26mm
	Automotive Standard No

Datasheet - FF1800R23IE7BPSA1

The Infineon Technologies PrimePACK 3+ B-Series modules are designed with Trench/Field stop IGBT5 and emitter controlled 5 diodes. These modules feature extended operating temperature, high short-circuit capability, and unbeatable robustness. The PrimePACK 3+ modules offer high creepage and clearance distances, high power and thermal cycling capability, and high power density. These modules are ideal for use in high power converters, motor drives, solar equipment, UPS systems, traction drives, and wind turbines.

Extended operating temperature

High short-circuit capability

Unbeatable robustness

Package with CTI>400
