DiodesZetex Hall Effect Sensor 4 mA 60 mA Latching Solder Terminal Open Drain Maintained, 105 °C, -40 °C, 28V dc, 3.8 V

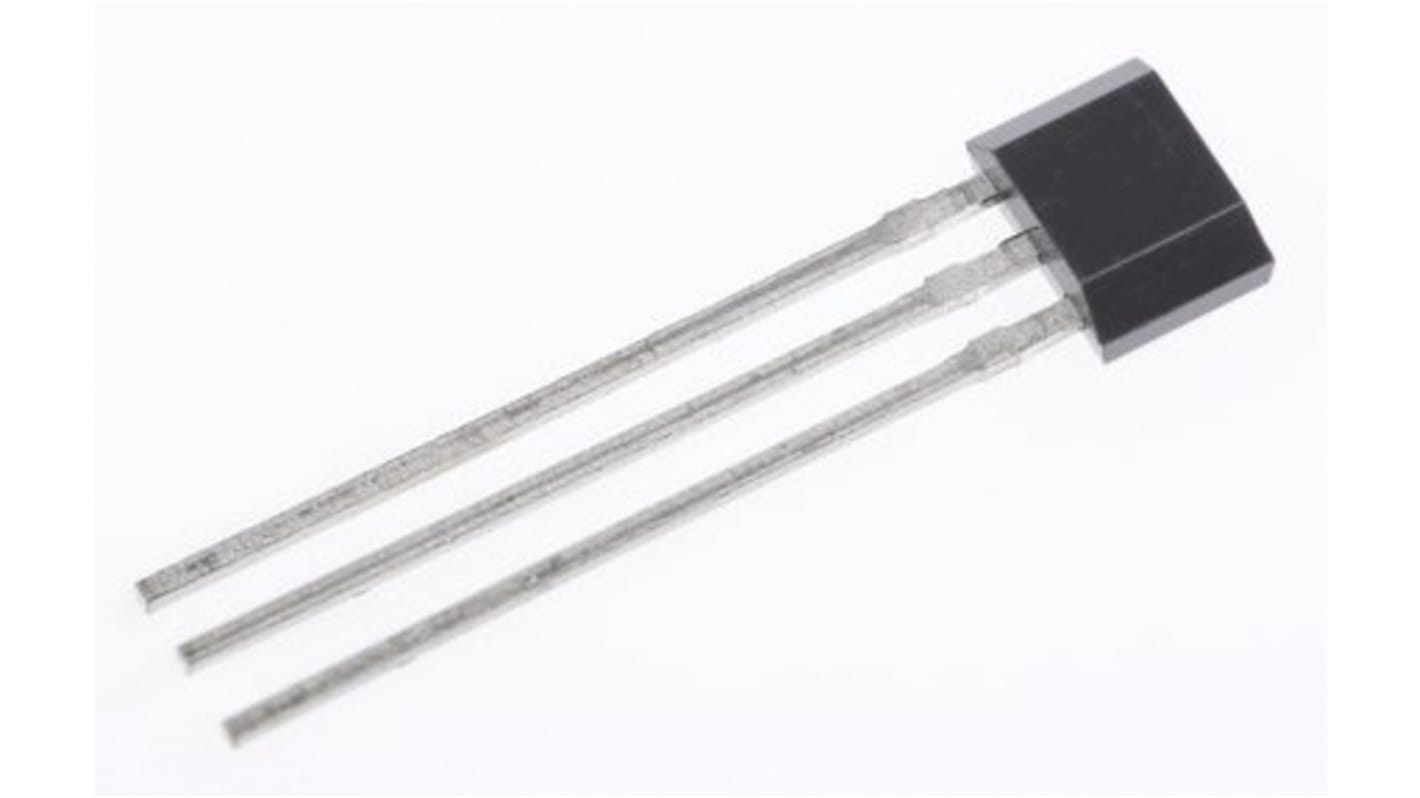

This image is representative of the product range

View all Hall Effect Switches
Bulk discount available

Subtotal (1 pack of 10 units)*

MYR35.82

Add to Basket
Select or type quantity
In Stock
  • 2,910 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per Unit
Per Pack*
10 - 40MYR3.582MYR35.82
50 - 90MYR3.464MYR34.64
100 - 240MYR3.349MYR33.49
250 - 990MYR3.239MYR32.39
1000 +MYR3.132MYR31.32

*price indicative

Packaging Options:
RS Stock No.:
246-7398
Mfr. Part No.:
AH3764Q-W-7
Manufacturer:
DiodesZetex
Find similar products by selecting one or more attributes.
Select all

Brand

DiodesZetex

The DiodesZetex makes a high-voltage, high-sensitivity Hall-effect latch IC designed for brushless DC-motor commutation, speed measurement, angular or linear encoders and position sensors in automotive applications. To support a wide range of demanding applications, the design is optimized to operate over the supply range of 3.0V to 28V. For robustness and protection, the device has a reverse blocking diode with a Zener clamp on the supply. The output has an over current limit and a Zener clamp. It has operating temperature range of -40°C to +150°C.

Operating voltage range of 3.0 V to 28 V Bipolar latch operation were south pole is on and north pole is off High sensitivity Bop and Brp of +25G and -25G typical Single open-drain output with overcurrent limit Package type is SC59
