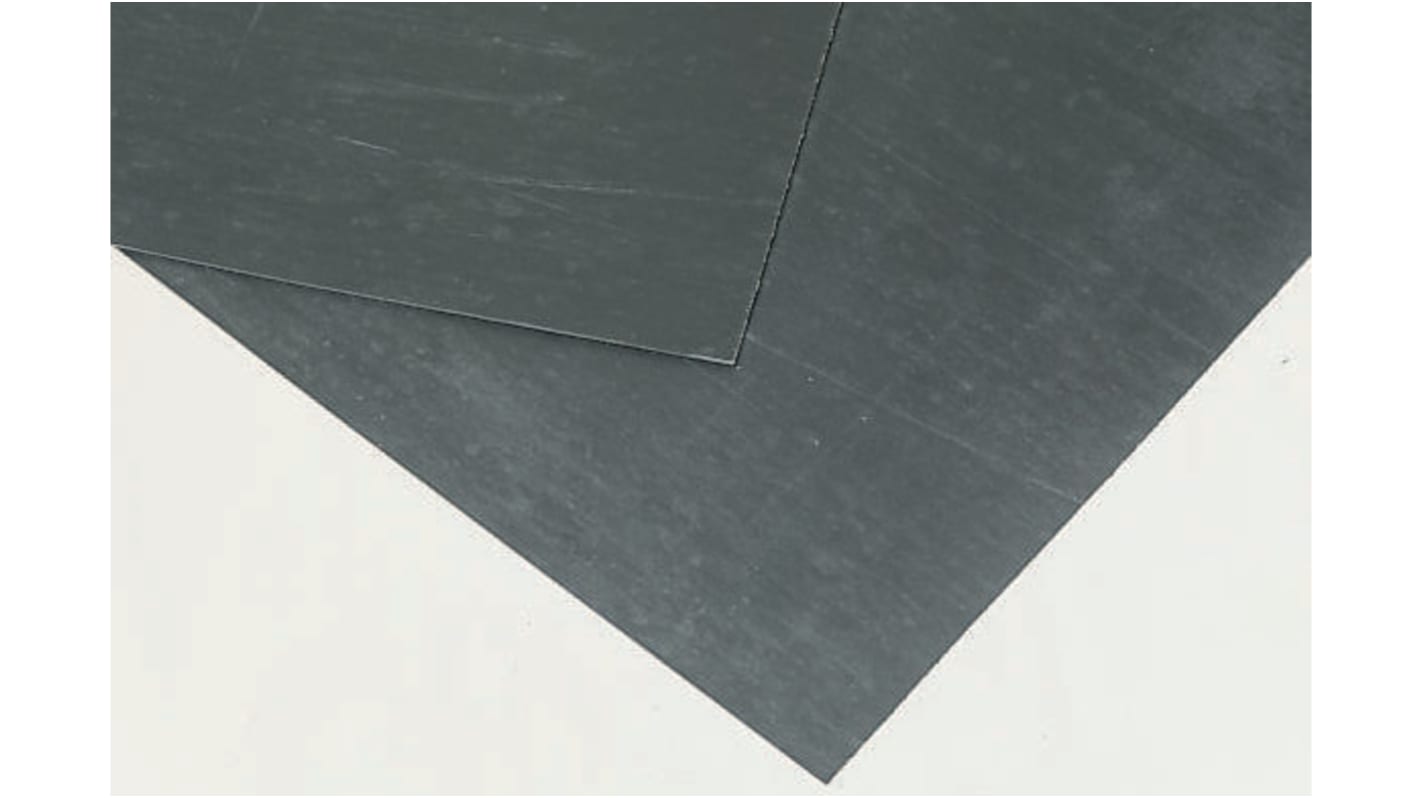

Klinger 750 x 500mm Black Carbon Fibre, NBR Gasket Sheet
- RS Stock No.:
- 855-901
- Mfr. Part No.:
- SOFS006000150XXRECT855901
- Manufacturer:
- Klinger
8 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price 1 Lot of 2
MYR1,195.75
| Lot(s) | Per Lot | Per Unit* |
| 1 - 4 | MYR1,195.75 | MYR597.875 |
| 5 + | MYR1,174.23 | MYR587.115 |
| *price indicative | ||
- RS Stock No.:
- 855-901
- Mfr. Part No.:
- SOFS006000150XXRECT855901
- Manufacturer:
- Klinger
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- AT
Product Details
Klingersil® C4500 Gasket Material
A compressed synthetic fibre jointing material, composed of carbon fibre with NBR (Nitrile Butadiene Rubber) binder. A direct alternative to asbestos
Colour : black both sides
Finish : Anti-stick surfaces
Excellent steam (290°C), oil and chemical resistance, which is particularly suitable for use in high alkaline applications and those which require high load bearing characteristics
Colour : black both sides
Finish : Anti-stick surfaces
Excellent steam (290°C), oil and chemical resistance, which is particularly suitable for use in high alkaline applications and those which require high load bearing characteristics
Approvals
BS 2815A (Physical Conformity). BS 1832 (Physical Conformity). BS 7531 Grade X.
Approvals
BS 7531 Grade X, Firesafe API 6 FA, HTB, DIN-DGVW 92.02 e 052, BAM U W28 for use with Oxygen 100 bar / 850C, KTW C54a/94/Stf
Specifications
Attribute | Value |
|---|---|
| Thickness | 1.5mm |
| Material | Carbon Fibre, NBR |
| Sheet Size | 750 x 500mm |
| Maximum Operating Temperature | +450°C |
| Colour | Black |
| Finish | Anti Stick Surface |
| Maximum Operating Pressure | 130 bar |
| Length | 750mm |
| Width | 500mm |
