Wurth Elektronik 4W620 Openable Flat Cable Ferrite, 40 max. wires, Split Flat Core 2 mm 52 mm
- RS Stock No.:
- 260-6616
- Distrelec Article No.:
- 303-17-128
- Mfr. Part No.:
- 74272592
- Manufacturer:
- Wurth Elektronik

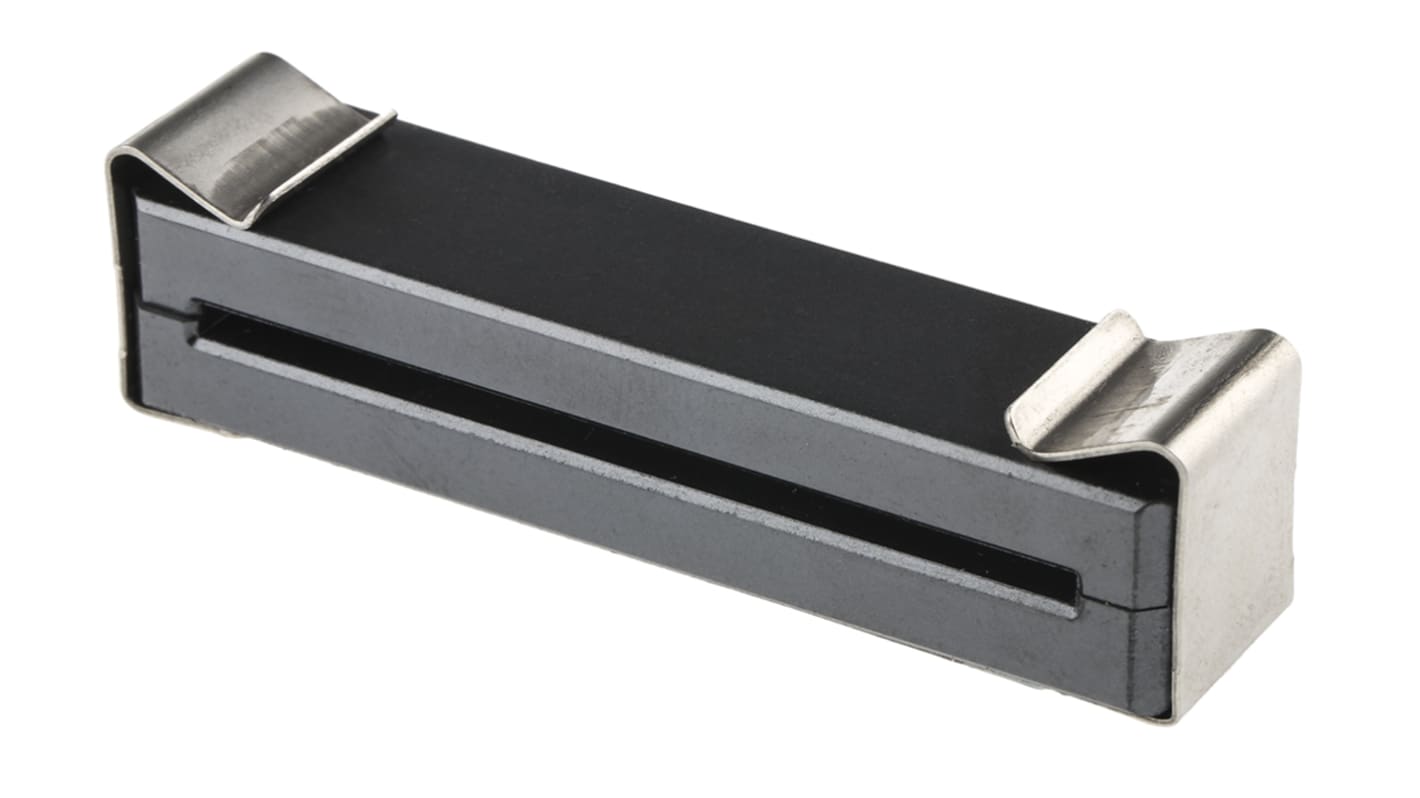

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
MYR35.60
FREE delivery for orders over RM 150.00
In Stock
- 162 unit(s) ready to ship from another location
- Plus 283 unit(s) shipping from 21 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 9 | MYR35.60 |
| 10 - 19 | MYR35.00 |
| 20 + | MYR34.09 |
*price indicative
- RS Stock No.:
- 260-6616
- Distrelec Article No.:
- 303-17-128
- Mfr. Part No.:
- 74272592
- Manufacturer:
- Wurth Elektronik
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Maximum Number of Wires | 40 | |
| Product Type | Flat Cable Ferrite | |
| Sub Type | Split Flat Core | |
| Internal Width | 52mm | |
| Application | RFI Suppression | |
| Material | 4W620 | |
| Impedance at 100 MHz | 101Ω | |
| Internal Height | 2mm | |
| Openable | Yes | |
| External Depth | 13mm | |
| External Height | 15mm | |
| External Width | 63mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Maximum Number of Wires 40 | ||
Product Type Flat Cable Ferrite | ||
Sub Type Split Flat Core | ||
Internal Width 52mm | ||
Application RFI Suppression | ||
Material 4W620 | ||
Impedance at 100 MHz 101Ω | ||
Internal Height 2mm | ||
Openable Yes | ||
External Depth 13mm | ||
External Height 15mm | ||
External Width 63mm | ||
Standards/Approvals No | ||
Split ferrite block cores, ready for use with metal clamp and adhesive tape
Simple attachment to cables that are already installed or provided with plug connectors
for serious interference problems with ribbon cables used on digital devices
Fully ready for use with metal clamp and adhesive tape
