Wurth Elektronik Openable, Diameter 5 mm Ferrite Sleeve, Apertures: 1 30.3 mm 19 mm 19 mm, For EMI Suppression
- RS Stock No.:
- 736-1914
- Distrelec Article No.:
- 110-63-494
- Mfr. Part No.:
- 74275812
- Manufacturer:
- Wurth Elektronik

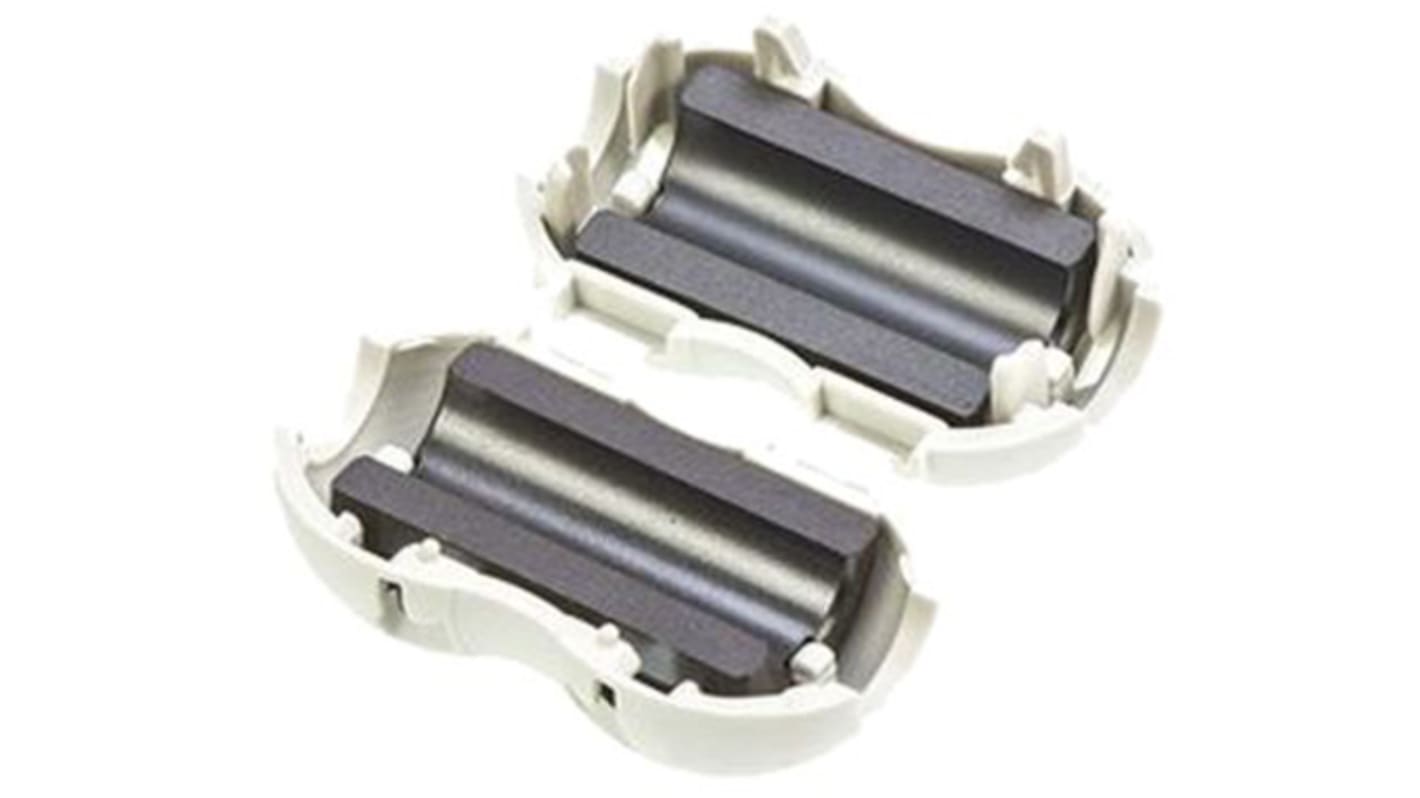

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
MYR22.35
FREE delivery for orders over RM 150.00
In Stock
- 780 unit(s) ready to ship from another location
- Plus 1,851 unit(s) shipping from 21 October 2026
- Plus 448 unit(s) shipping from 16 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 13 | MYR22.35 |
| 14 - 27 | MYR21.91 |
| 28 + | MYR21.48 |
*price indicative
- RS Stock No.:
- 736-1914
- Distrelec Article No.:
- 110-63-494
- Mfr. Part No.:
- 74275812
- Manufacturer:
- Wurth Elektronik
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Series | STAR-BUENO | |
| Sub Type | Snap Ferrite | |
| Product Type | Ferrite Sleeve | |
| Application | EMI Suppression | |
| Material | 4W620 | |
| Key | No | |
| Impedance at 25 MHz | 122Ω | |
| Openable | Yes | |
| Impedance at 100 MHz | 206Ω | |
| Aperture Diameter | 5mm | |
| Number of Apertures | 1 | |
| External Depth | 30.3mm | |
| External Width | 19mm | |
| External Height | 19mm | |
| Standards/Approvals | REACH, RoHS | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Series STAR-BUENO | ||
Sub Type Snap Ferrite | ||
Product Type Ferrite Sleeve | ||
Application EMI Suppression | ||
Material 4W620 | ||
Key No | ||
Impedance at 25 MHz 122Ω | ||
Openable Yes | ||
Impedance at 100 MHz 206Ω | ||
Aperture Diameter 5mm | ||
Number of Apertures 1 | ||
External Depth 30.3mm | ||
External Width 19mm | ||
External Height 19mm | ||
Standards/Approvals REACH, RoHS | ||
- COO (Country of Origin):
- DE
Wurth Elektronik STAR-BUENO Series Ferrite Sleeve, 122Ω Impedance at 25Mhz, 206Ω Impedance at 100MHz - 74275812
This ferrite sleeve is a snap-on, openable ferrite clamp designed to reduce conducted interference on single cables. It is MADE from 4W620 material and is intended for EMI suppression in electronic assemblies where removable noise suppression components are required. The sleeve accepts a single conductor and conforms to REACH and RoHS standards.
Features and Benefits:
• 122Ω impedance at 25MHz provides low-frequency attenuation
• 206Ω impedance at 100MHz delivers high-frequency suppression
• Openable snap design allows quick retrofitting onto installed cables
• Single-aperture construction enables focused suppression of one conductor
• 4W620 material offers magnetic properties suited to EMI filtering
• 206Ω impedance at 100MHz delivers high-frequency suppression
• Openable snap design allows quick retrofitting onto installed cables
• Single-aperture construction enables focused suppression of one conductor
• 4W620 material offers magnetic properties suited to EMI filtering
Applications
• Suitable for clamping onto signal cables to lower interference
• Used for noise reduction in sensitive electronic modules
• Ideal for retrofit suppression on pre-wired harnesses
• Can be used for EMI control in test and measurement setups
• Used for noise reduction in sensitive electronic modules
• Ideal for retrofit suppression on pre-wired harnesses
• Can be used for EMI control in test and measurement setups
What aperture size accommodates conductors?
The internal opening measures 5mm, allowing standard single cables to pass through.
What are the external dimensions for installation planning?
The part measures 19mm x 19mm x 30.3mm for spatial allocation on assemblies.
Is the component compatible with environmental regulations?
It meets REACH and RoHS requirements for restricted substances.
How many apertures does it contain and how does that affect use?
It has one aperture, so it is intended for use on a single conductor rather than multi-core bundles.
