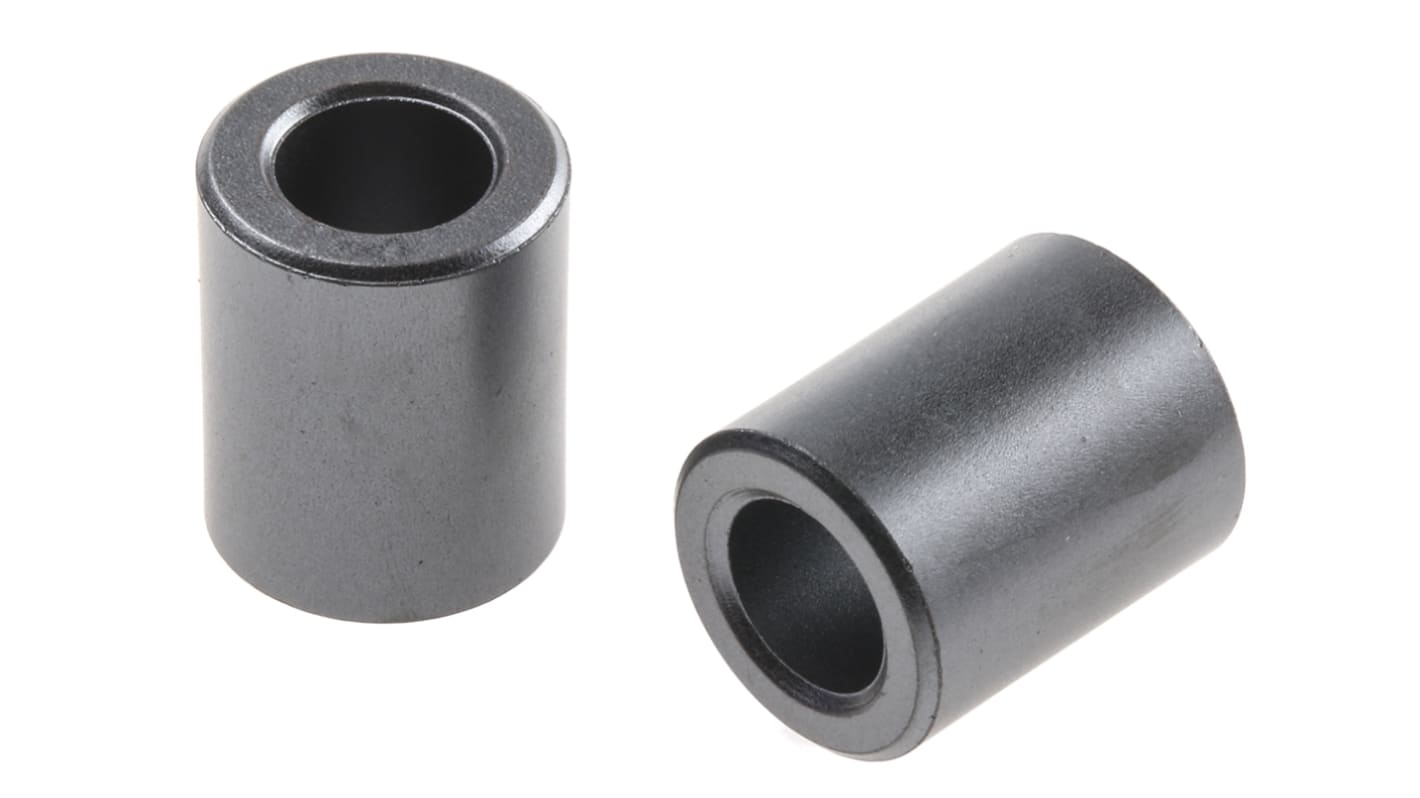

Essentra, Diameter 7 mm Ferrite Sleeve, Apertures: 1 15 mm 12 mm, For TV, Wire Assembly
- RS Stock No.:
- 257-4480
- Distrelec Article No.:
- 304-09-422
- Mfr. Part No.:
- RRH120-070-150-K5B
- Manufacturer:
- Essentra
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 5 units)*
MYR45.29
Stock information currently inaccessible - Please check back later
Units | Per Unit | Per Pack* |
|---|---|---|
| 5 - 70 | MYR9.058 | MYR45.29 |
| 75 - 245 | MYR8.866 | MYR44.33 |
| 250 - 495 | MYR8.60 | MYR43.00 |
| 500 - 1245 | MYR8.392 | MYR41.96 |
| 1250 + | MYR8.208 | MYR41.04 |
*price indicative
- RS Stock No.:
- 257-4480
- Distrelec Article No.:
- 304-09-422
- Mfr. Part No.:
- RRH120-070-150-K5B
- Manufacturer:
- Essentra
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Essentra | |
| Product Type | Ferrite Sleeve | |
| Series | RRH | |
| Sub Type | Bead | |
| Application | TV, Wire Assembly | |
| Material | K5B | |
| Key | No | |
| Impedance at 25 MHz | 40Ω | |
| Openable | No | |
| Impedance at 100 MHz | 80Ω | |
| Aperture Diameter | 7mm | |
| Number of Apertures | 1 | |
| Gapped | No | |
| External Height | 15mm | |
| External Width | 12mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Essentra | ||
Product Type Ferrite Sleeve | ||
Series RRH | ||
Sub Type Bead | ||
Application TV, Wire Assembly | ||
Material K5B | ||
Key No | ||
Impedance at 25 MHz 40Ω | ||
Openable No | ||
Impedance at 100 MHz 80Ω | ||
Aperture Diameter 7mm | ||
Number of Apertures 1 | ||
Gapped No | ||
External Height 15mm | ||
External Width 12mm | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- TW
RRH Series
Use as a filter for common mode interferences
For common mode and power signal insertion losses
Make sure you have the right impedance for the frequency when you select your ferrite core
