Murata Ferrite Bead 0.5 mm (Solder) (0402) (Chip Ferrite Bead), 80 Ω impedance at 100 MHz
- RS Stock No.:
- 839-0809
- Mfr. Part No.:
- BLM15PD800SN1D
- Manufacturer:
- Murata

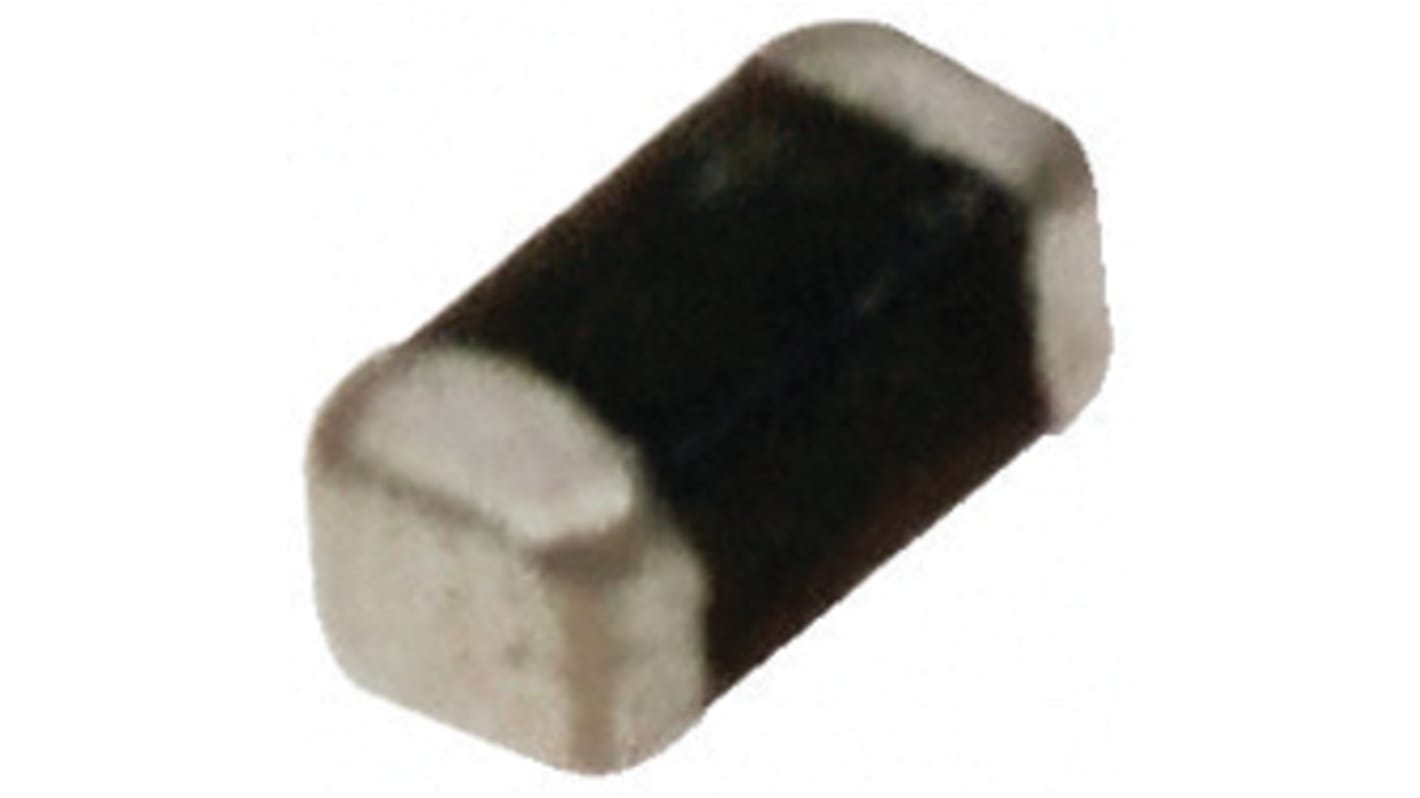

This image is representative of the product range
Bulk discount available
Subtotal (1 bag of 100 units)*
MYR14.60
FREE delivery for orders over RM 500.00
Temporarily out of stock
- 4,700 unit(s) shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Bag* |
|---|---|---|
| 100 - 400 | MYR0.146 | MYR14.60 |
| 500 - 900 | MYR0.135 | MYR13.50 |
| 1000 - 9900 | MYR0.125 | MYR12.50 |
| 10000 - 19900 | MYR0.116 | MYR11.60 |
| 20000 + | MYR0.108 | MYR10.80 |
*price indicative
- RS Stock No.:
- 839-0809
- Mfr. Part No.:
- BLM15PD800SN1D
- Manufacturer:
- Murata
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata | |
| Product Type | Ferrite Bead | |
| Package Type | 0402 | |
| Packaging | Taping and Bulk | |
| Impedance at 100 MHz | 80Ω | |
| Current Rating | 1.5 A | |
| Sub Type | Chip Ferrite Bead | |
| Mount Type | Solder | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Height | 0.5mm | |
| Standards/Approvals | RoHS | |
| Maximum DC Resistance | 70mΩ | |
| Length | 1mm | |
| Depth | 0.5mm | |
| Series | BLM15PD | |
| Application | EMI Suppression Filter, Power Supplies | |
| Automotive Standard | No | |
| Material | Ferrite | |
| Select all | ||
|---|---|---|
Brand Murata | ||
Product Type Ferrite Bead | ||
Package Type 0402 | ||
Packaging Taping and Bulk | ||
Impedance at 100 MHz 80Ω | ||
Current Rating 1.5 A | ||
Sub Type Chip Ferrite Bead | ||
Mount Type Solder | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Height 0.5mm | ||
Standards/Approvals RoHS | ||
Maximum DC Resistance 70mΩ | ||
Length 1mm | ||
Depth 0.5mm | ||
Series BLM15PD | ||
Application EMI Suppression Filter, Power Supplies | ||
Automotive Standard No | ||
Material Ferrite | ||
SMD 0402 Ferrite Filters- BLM15EG/HB/HD/HG/PD/PG/PX Series
BLM ferrite beads from Murata are ideal for use in circuits with unstable ground lines as they do not require a ground connection. These ferrite beads are designed to function nearly as resistors at noise frequencies, leaving signal wave forms undistorted and reducing the possibility of resonance. Excellent solder heat resistance is provided by the nickel barrier construction of the external electrodes.
BLM_P ferrite beads can match power lines to a maximum of 6A dc. With low DC resistance, BLM_P variants are ideal for high current circuits. BLM15EG models also provide low DC resistance.
This series of ferrite beads are suitable for general use applications.
